Summary of Contents for MARcus TD 2014 Series

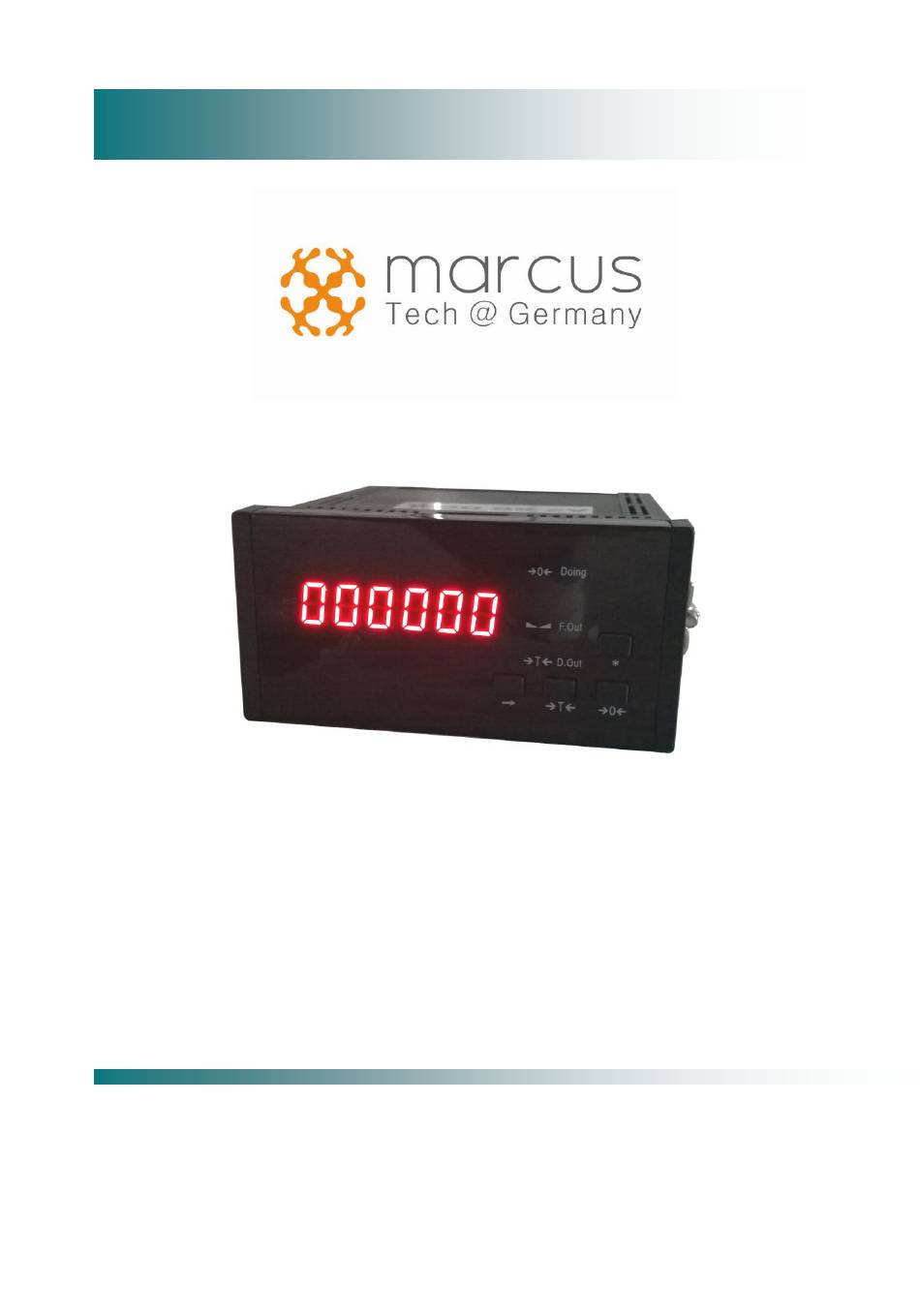

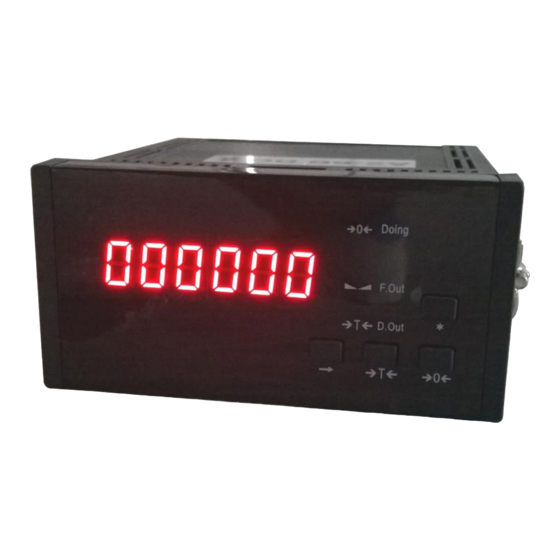

- Page 1 User Manual TD 2014 Series Weighing Controller Applications: Electronic platform scale, weighing scale, etc.
- Page 2 1. Specifications A/D Converter type Sigma-Delta Sample rate 10 times / second, 40 times / second, 250 times / second Display resolution 3000 Internal resolution 1,000,000 Load cell excitation DC 5V Load cell Up to 4 x 350 Ω or 8 x 700 Ω load cell Display 6-digit 0.4 inch LED Division 1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005/10/ 20/50/100/200/500/0.10/0.20/0.50/0.010/0.020/0.050...
- Page 3 5. Error Code 〖 OUEｒ〗 - when the weight is > 100% FS + 9d 〖-OUEｒ〗 - when the weight is < - 20d 〖HHHHHH〗 - when zero reference is > +2% FS 〖LLLLLL〗 - when zero reference is < -2% FS 6.
- Page 4 9. Configurations Operation Display Descriptions 〖000000〗 Press【→】 Go to Calibrations and Configurations menu and enter password 002003 〖002003〗 Press【→】 To enter password 002003: Press【→】to move blinking digit to the right Or【→T←】 Press【→T←】to increment blinking digit Press【→0←】to decrement blinking digit Press【...
- Page 5 Adr=01-98 data output using ModBus protocol 〖Adr 12〗 Press【→】 Press a combinations of【→】,【→T←】and【→0←】to Or【→T←】 select Adr Press【 * 】 〖b 2400〗 Set Baud rate b=1200,2400,4800,9600 〖b 9600〗 Press【→T←】 Press【→T←】or【→0←】to select baud rate Press【 * 】 〖L00791〗 Calibrate the 4 mA analog output L means current output is 4 mA 〖L00791〗...
- Page 6 11. Check ADC and Set To Factory Setting Operation Display Descriptions 〖000000〗 Press【→】 Go to Calibrations and Configurations menu and enter password 002003 〖002003〗 Press【→】 To enter password 002003: Press【→】to move blinking digit to the right Or【→T←】 Press【→T←】to increment blinking digit ...
- Page 7 When the weight is <5000, relay #5 will be closed. When the weight is ≥5000，relay #5 will be opened Example 2：OUt-d=000001 ( relay #5 bit is 0), A5=005000 When the weight is ≥5000，relay #5 will be closed. When the weight is <5000, relay #5 will be opened 〖100110〗...
- Page 8 maintenance and calibration facilities. 16. Relay output...
