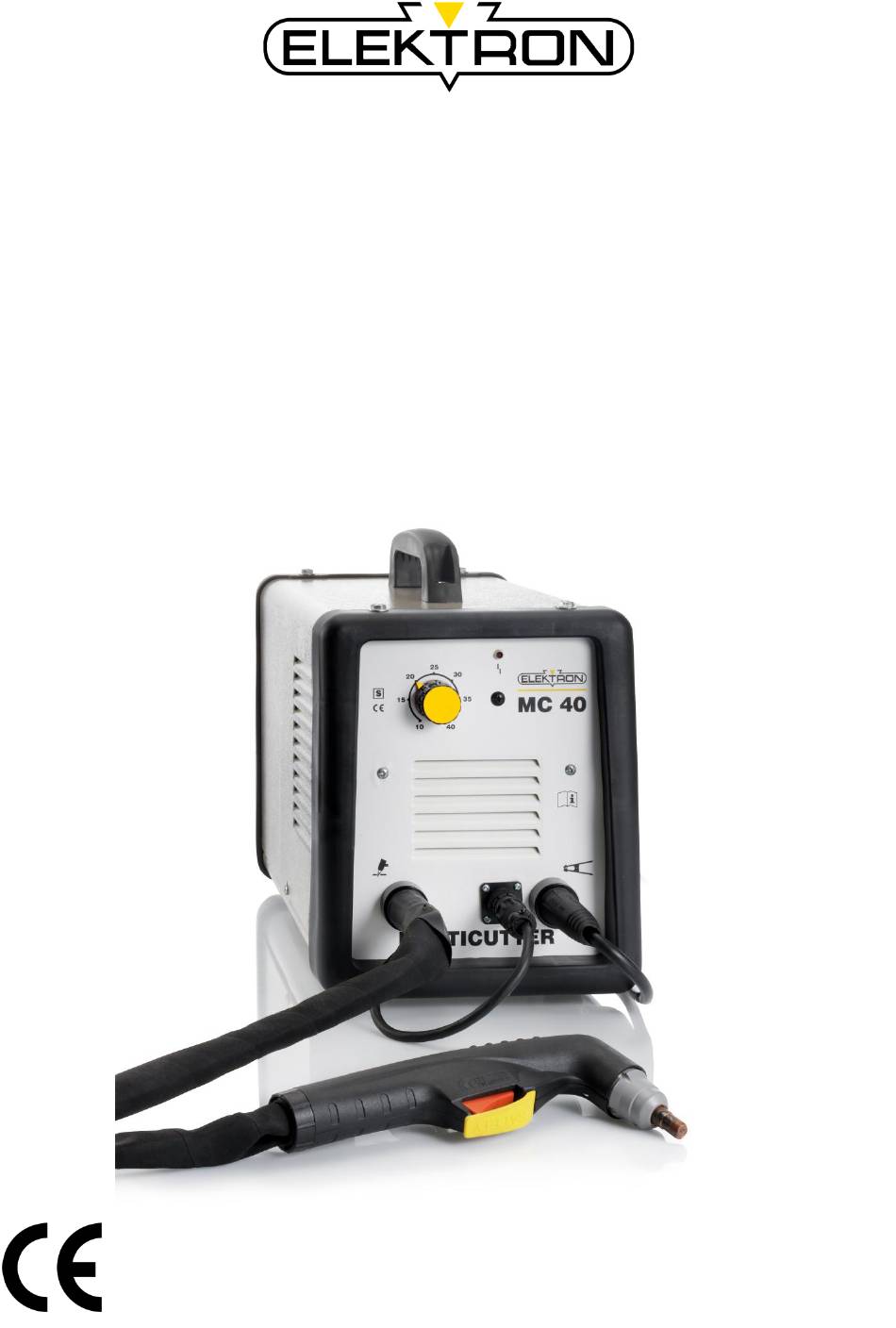

Operating manual
MULTICUTTER MC40
Item-No.:
327 958
Revision:
0.1 - Original
Version:
24.05.2013
Plasma-Cutter
Be sure you have read and understood this operating
manual before you carry out any works on and / or with this
equipment!

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULTICUTTER MC40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elektron MULTICUTTER MC40

  • Page 1 Operating manual MULTICUTTER MC40 Plasma-Cutter Item-No.: 327 958 Be sure you have read and understood this operating Revision: 0.1 - Original manual before you carry out any works on and / or with this equipment! Version: 24.05.2013...
  • Page 2 © BlitzRotary GmbH Branch Bremen Hinterm Sielhof 22 D-28277 Bremen Germany Phone: +49 (0)421 / 54 90 6 - 906 Fax: +49 (0)421 / 54 90 6 - 19 E-Mail: vertrieb@elektron-bremen.de Internet: www.elektron-bremen.de Release: BlitzRotary GmbH Branch Bremen...
  • Page 3 MULTICUTTER MC40 OPERATION MANUAL Read this manual carefully before using the machine. Failure to respect the rules described herein shall exempt the manufacturer from any liability. The machine has been designed, built and protected for the functions described below. Any other use not explicitly included shall be considered FORBIDDEN.
  • Page 4 MULTICUTTER MC40 MODEL: The model of the machine International standards. EN 60974-10:2003 Machine Serial Number which must appear on requests or inquiries concerning the machine. Single-phase transformer-rectifier 1-50/60Hz Single-phase input supply at 50 or 60 Hz. Secondary no-load voltage (peak value).
  • Page 5 MULTICUTTER MC40 DESCRIPTION OF UNIT DEVICES (see picture 1) A) Input power cable Confirm the input voltage before use. B) Gas reducing unit Adjust the gas pressure and make it is adequate to machine. C) Control socket for torch D) Mains switch E) Adjustable Current knob Adjust the current and make adequate to cut the work piece.
  • Page 6: Setting At Work

    MULTICUTTER MC40 SETTING AT WORK The unit must be installed by skilled personnel. All fillings must be in conformity with the existing rules and in full compliance with safety regulations. Connect the air making sure that pressure is 0.3 Mpa at least .Normal 0.3-0.5 Mpa. Adjust the pressure according to the workpiece.
  • Page 7: Torch Maintenance

    MULTICUTTER MC40 CUTTING TROUBLE 1) Insufficient penetration This may be due to: high speed. Always make sure that arc thoroughly passes through the piece to be cut and that it is not tilted, when going forward, by a percentage above 10 / 15°(see picture 6). It is thus avoided to wear nozzle (see picture 7) out and to burn the nozzle holder (see picture 8).
  • Page 8: Maintenance And Control

    MULTICUTTER MC40 Nozzle C should be replaced when its central hole is damaged or enlarged with respect to the new part (see picture 13). Use of worn electrode quickly wears out the nozzle. Excessive use of electrode causes overheating and reduces the life of diffuser B.
  • Page 9 MULTICUTTER MC40 ake sure that the supply mains line is equipped with an efficient earth plug. Make sure that the work table is connected to an efficient earth plug. Maintenance should be only carried out by qualified personnel aware of the risks due to dangerous voltages necessary to make the unit work.
  • Page 10 MULTICUTTER MC40 BURNS Wear fire-proof clothes all over your body to protect your skin against burns caused by ultraviolet radiations from the arc, from sparks and hot metal. Wear no turn-up trousers to prevent sparks and metal to deposit in them.
  • Page 11 MULTICUTTER MC40 PACEMAKER Magnetic fields created by the high currents in the cuffing circuit can affect pacemaker operation. Persons wearing electronic life support equipment (pacemakers) should consult their doctor before going near any arc welding, gouging, cutting, or spot welding equipment in operation.
  • Page 12 MULTICUTTER MC40 ILLUSTRATION OF WORKING PRINCIPLE...
  • Page 13 MULTICUTTER MC40 MULTICUTTER MC40 ILLUSTRATION EXPLODED Description Description potentiometer 2W 10KΩ gas connector red LED power switch fan cover T300 switch Radiator (right) CK-25 quick socket (with gas) MULTICUTTER PCB (up) DKJ1-10-25MM quick socket handle control socket (machine side) Radiator (left)
  • Page 14 H i n t e r m S i e l h o f 2 2 D - 2 8 2 7 7 B r e m e n Telephone +49 / (0)421 / 54 90 6-906  Telefax +49 / (0)421 / 54 90 6-19  vertrieb@elektron-bremen.de  www.elektron-bremen.de...
