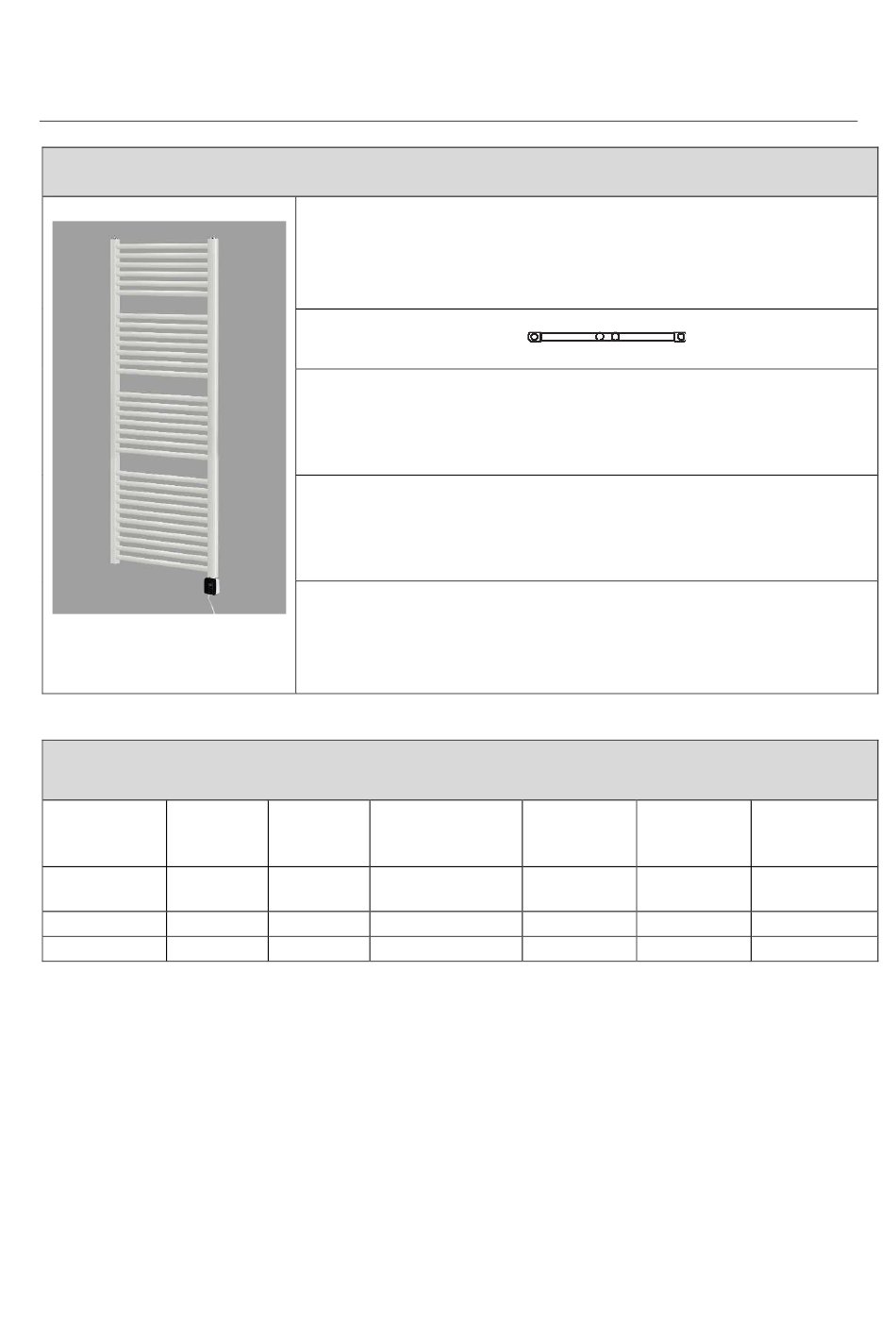

Montagehandleiding: elektrische radiator
Specificaties

Specifications

Technische gegevens rechte radiator

Technical data straight radiator

Lengte
Breedte
Length
Width
H
L
mm
mm
1400
600
1800
600

Installation manual: electric radiator

Radiator met horizontale ronde stalen buizen: ø 22x1 mm en twee
verticale stalen collectoren met D-profiel: 40x30x1,5 mm.
The radiator consists of horizontal round steel precision tubes: Ø 22x1 mm
and two vertical steel collectors with D-profile 40x30x1,5 mm.

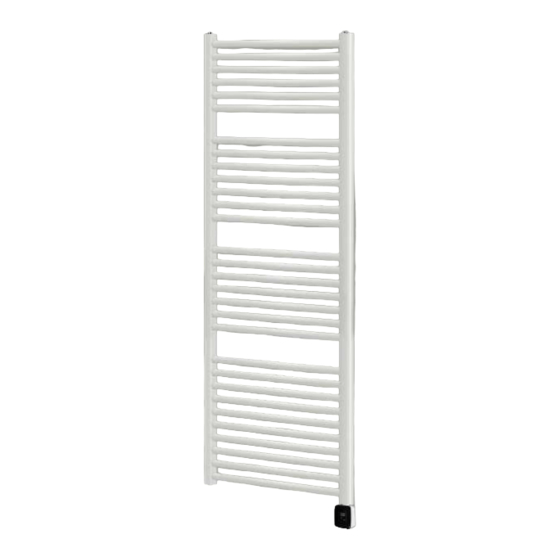

Rechte radiator
Straight radiator
Kleuren
Wit RAL 9016 & Grijs metallic & mat zwart
Colours
White RAL 9016 & Grey Metallic & Matt Black
Aansluiting
Aansluiting voor thermostaat aan rechter zijde (niet meegeleverd)

Connection

Connection for thermostat on the right side (not included)
Let op: deze radiator is alleen te combineren met de Lavigo Stone
thermostaat. Deze is niet inbegrepen. U kunt kiezen uit 2 kleuren.
Attention: this radiator can only be combined with the Lavigo Stone
thermostat. Not included. You can choose from 2 colors
Afstand
Aantal buizen
Distance
Number of pipes
R
mm
560
560
Capaciteit
Power
watt
30
900W
41
1000W
Gewicht
Volume
Weight
kg
L
18,9
7,5
25,1
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sorbus SW395080 and is the answer not in the manual?

Questions and answers

Summary of Contents for Royal Plaza Sorbus SW395080

  • Page 1 Montagehandleiding: elektrische radiator Installation manual: electric radiator Specificaties Specifications Radiator met horizontale ronde stalen buizen: ø 22x1 mm en twee verticale stalen collectoren met D-profiel: 40x30x1,5 mm. The radiator consists of horizontal round steel precision tubes: Ø 22x1 mm and two vertical steel collectors with D-profile 40x30x1,5 mm. Rechte radiator Straight radiator Kleuren...
  • Page 3 Let op! Plaatsing elektrische radiator. Waar moet u op letten? Een elektrische radiator dient minimaal 170 cm van de hoofd- en/of handdouche geplaatst te worden indien de doucheruimte niet is afgeschermd door een (glazen) douchewand. De radiator mag namelijk niet in contact komen met water(stralen). Hang daarom ook geen vochtige handdoeken op de radiator.
  • Page 4 Garantie Op dit product is tot vijf jaar na aankoop garantie van toepassing op alle materiaal- en productiefouten die bij normaal gebruik kunnen ontstaan. Warranty A five-year warranty for towel warmer and a two-year warranty for heating bar apply to all material and manufacturing defects that can occur during normal use.
  • Page 5 Figuur 4 / Figure 4 4. Let op: de thermostaat kan alleen op verticale radiatoren worden geïnstalleerd. Je kunt de thermostaat alleen installeren op de positie die wordt getoond in figuur 4. Attention: the thermostat can only be installed on vertical radiators. You can only install the thermostat in the position showed in figure 4.
