StoneLock GO Installation And User Manual

StoneLock Go
1 Out of the Box
Qty 1 GO
Qty 1 Mounting Bracket
Qty 1 Anti-Removal Reflective Sticker
(if not already attached to the Mounting Bracket)
Qty 2 T10 Torx Security Screws
Qty 1 Installation and User's Manual
2 Installation

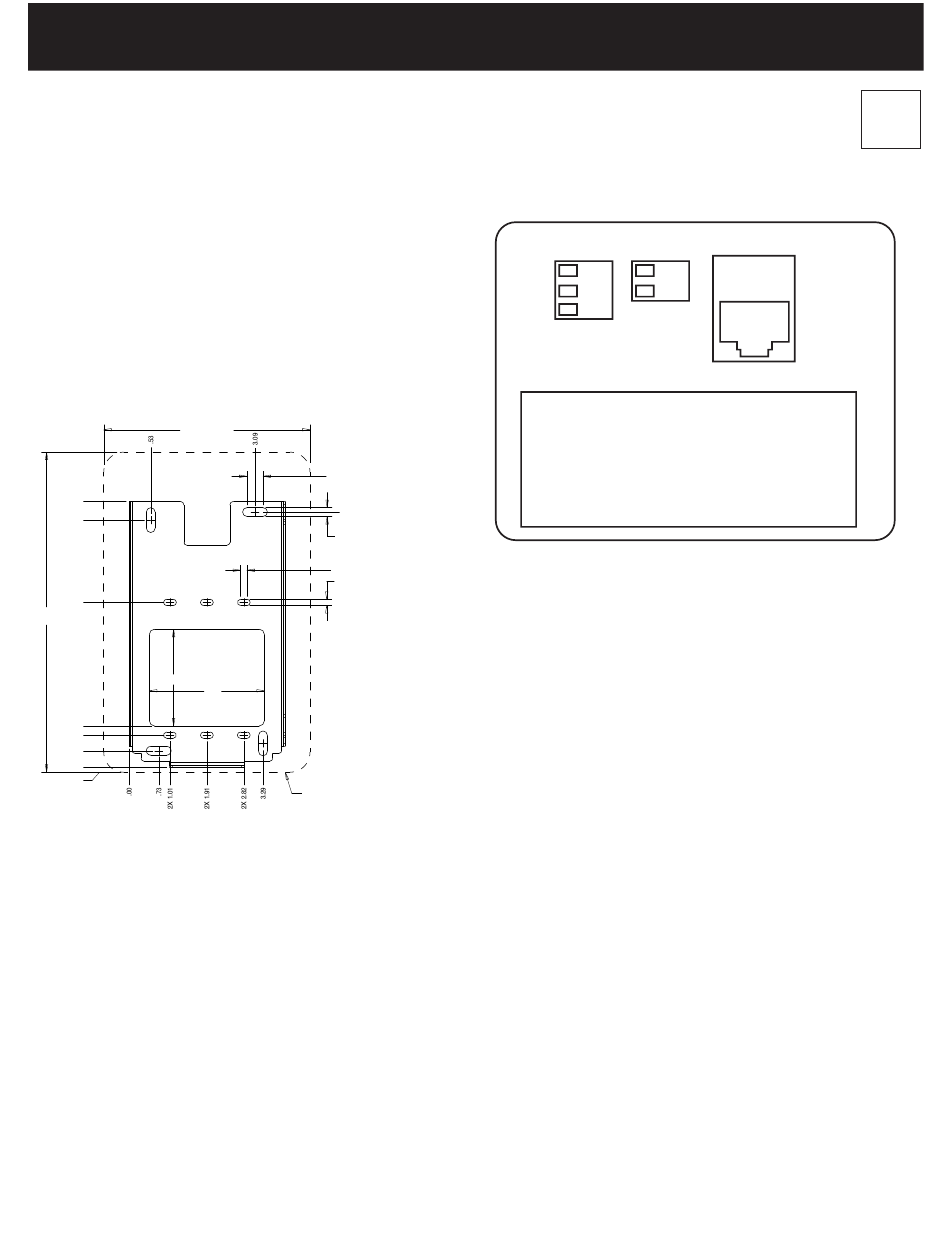

2.1 Bracket Mounting
The mounting bracket is constructed with a variety of holes that can be used for
affixing the bracket to any vertical surface such as a wall. See the figure below. The
mounting bracket must be connected to EARTH GROUND via a METAL gang box that
is connected to EARTH GROUND or an EARTH GROUND wire connected to one of the
screws used to mount the bracket to a vertical surface in order for the installation to be
in compliance with standard EN 61000-4-2.
5.06 HOUSING
6.52
6.05
3X 4.03
7.86
HOUSING
2.38
1.00
3X .77
.39
.00
.14
CONFIDENTIAL AND PROPRIETARY MATERIAL
2.1.1 Mounting the Bracket WITH a Gang Box
The 6 small oblong holes can be used for either single or double gang box mounting.
When installing the gang box, ensure that the bottom screw hole of the gang box is
54.77" from the floor. Once the gang box is in place, the small oblong holes in the
bracket will align with the screw holes in the gang box. Use panhead screws that mate
to the installed gang box. For a single gang box, place one screw through the center
upper hole and one screw through the center lower hole and tighten. For a double
gang box, place one screw through each of the outer upper holes and one screw
through each of the outer lower holes and tighten. Once the bracket is mounted, the
bottom of the bracket should measure 54" from the floor.
2.1.2 Mounting the Bracket WITHOUT a Gang Box
The 4 large oblong holes can be used with wall anchors to mount the bracket to a
wall when a gang box is NOT used. It is best to hold the bracket against the wall,
ensure that the bracket is level and the metal tongue at the bottom of the bracket is
54" from the floor. Then, with a pencil, trace the 4 large oblong holes and the 2.38" x
2.82" rectangular cut out in the bracket. Install wall anchors in the positions of the
marked oblong holes and ensure that the marked 2.38" x 2.82" rectangle on the wall
is completely cut out. Using the wall anchor screws, place one through each of the 4
large oblong holes and tighten ensuring that the bracket is level and the metal tongue
at the bottom of the bracket is 54" from the floor.
Installation and User Manual
4X .39
6.25
4X .22
6X .16
6X .16
2.82
OUTLINE OF HOUSING
If an Anti-Removal Reflective Sticker shown here has been supplied
with the device, adhere the sticker to the wall in the 1" x 1" cutout in
the mounting bracket.
2.2 Connecting to the GO
The image below shows the connections on the back of the GO.
TB2
DO
GND
D1
• PoE (Power Over Ethernet) RJ45 Connector
• TB1 Wurth Electronics P/N: 691361100002 (Supplied with unit)
LK NO (The NO connection of a standard relay that indicates the lock state from an
• •
Access Control Panel.)
LK COM (The COMMON connection of a standard relay that indicates the lock state
• •
from an Access Control Panel.)
• TB2 Wurth Electronics P/N: 691361100003 (Supplied with unit)
D0 (Wiegand Data 0 Output)
• •
SCALE 0.750
GND (Access Control Panel Ground for Wiegand communication)
• •
D1 (Wiegand Data 1 Output)
• •
INIT DATE
TOLERANCES UNLESS
STONELOCK
OTHERWISE SPECIFIED
DWN JHH Jan-08-21
SHTMTL BENDS
.XX
REV I Feb-03-21
101 North Church St
.XXX .015 .005
2.2.1 Power and Ethernet Connection
Olathe, KS 66061
ANG
www.stonelock.com
FINISH 125 µIN
MODEL FILE MODEL TYPE
The GO should be powered by a Power Limited/Class 2, PoE (Power over Ethernet) PART
BREAK EDGES R.005-R.010
27692rI_INSTALLATION
WALL MOUNT BRACKET -
TITLE
IEEE802.3af compatible network switch over a Cat 5 or better network cable
INSTALLATION DIMENSIONS
PART NUMBER SCALE
terminated by an RJ45 plug.
1.000 SHT 1 OF 1
27692rI_INSTALLATION
2.2.2 Lock State Connection
Using the 2 Position Terminal Block Plug supplied with the GO, connect the NO
connection of the relay that indicates the lock state from the Access Control Panel to
Pin 1 on the terminal block plug. (NOTE: Pin 1 will be the terminal on the top when the
terminal block is plugged into the GO.)
On the same terminal block plug, connect the COMMON connection of the relay that
indicates the lock state from the Access Control Panel to Pin 2 on the terminal block
plug. (NOTE: Pin 2 will be the terminal on the bottom when the terminal block is
plugged into the GO.)
2.2.3 Wiegand Connection
Using the 3 Position Terminal Block Plug supplied with the GO, connect the Wiegand
Data 0 from one of the Wiegand input channels at the Access Control Panel to Pin 1 on
the terminal block plug. (NOTE: Pin 1 will be the terminal on the top when the terminal
block is plugged into the GO.)
On the same terminal block plug, connect the GROUND from the same Wiegand input
channel at the Access Control Panel to Pin 2 on the terminal block plug. (NOTE: Pin 2
will be the terminal in the middle of the terminal block plug.)
PoE RJ45
TB1
LK NO
LK COM
OTHER
.030 .015
2 .5
SIZE REV
I
B
Anti-Removal Reflective Sticker
Adhere this to the wall in the 1"x1"
cutout in the mounting bracket
