Summary of Contents for Furniture Tree CUBO CUB-CU412-FP

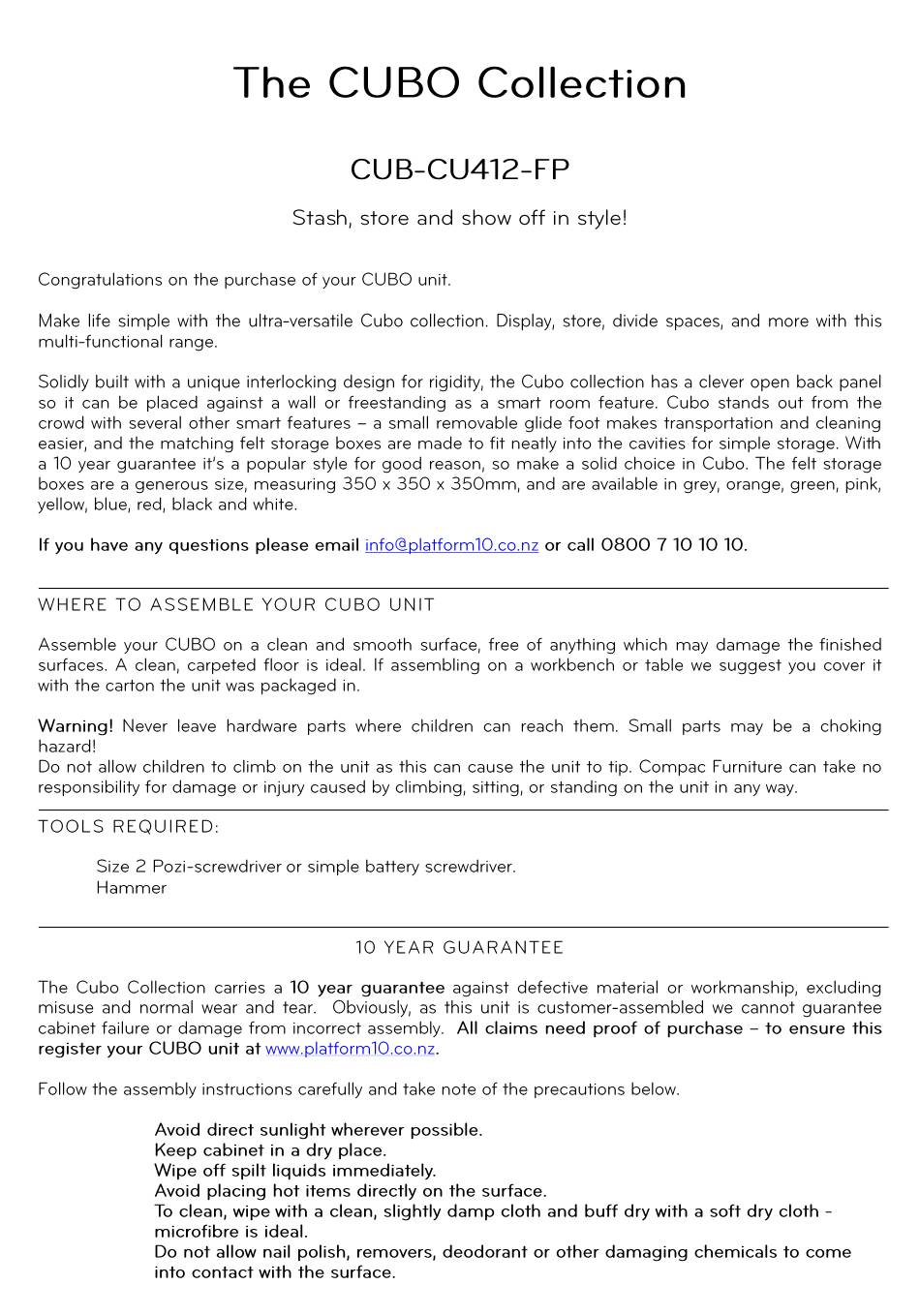

- Page 1 • • • • • • • • Job No:...
- Page 2 CUBO CUB-CU412-FP PARTS LIST Please check you have all the necessary parts before beginning to assemble your Shelving Unit. If any parts are missing or damaged please contact the manufacturers directly, either via our website or our 0800 number. Do not call the store you bought the cabinet from as they will be unable to help you.
- Page 3 CUBO CUB-CU412-FP STEP ONE: Install Hardware in TOP and BASE • Lay the TOP and the BASE on a clean clear surface with the holes facing UPWARDS. • Install eight H1 CONNECTING BOLTS in the holes in the TOP and the BASE as shown below. These two parts are identical, so you don’t need to worry about mixing them up.
- Page 4 CUBO CUB-CU412-FP STEP THREE: Install Hardware in the DIVISIONS • Take the DIVISIONS and lay them with the holes facing UPWARDS. • Install four H2 CAMS in each Division. Ensure that the arrow on the top of each Cam points to the unfinished edge.
- Page 5 CUBO CUB-CU412-FP Now we can put it all together……………………. STEP FIVE: Attach ENDS and DIVISIONS to the TOP • Take one of the TOP/BASE components, the two ENDS and the DIVISION • Fit the H2 CAMS installed in the Ends and the Divisions to the H1 CONNECTING BOLTS installed in the Top.
- Page 6 CUBO CUB-CU412-FP STEP SEVEN: Attach the FEET • The unit is pictured upside down. Please ensure the surface is clear of anything that may damage the TOP before turning over. • Screw the H37 Feet to the BASE as shown below. The holes for the feet are not pre-drilled – the screws will be sharp enough to penetrate the wood.
- Page 7 CUBO CUB-CU412-FP STEP NINE: Cover the CAMS and Holes • Using the White Stickers provided, cover the cams and remaining holes. For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858...
