HOMEDEPOT MRS-LKEX-66AAK Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
DEHUMIDIFIER
INSTRUCTION MANUAL
Please keep this manual carefully for further reference!
Thank you for selecting our dehumidifier. Be sure to read this manual carefully before using it.
Any questions, please contact the seller for help.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MRS-LKEX-66AAK and is the answer not in the manual?

Questions and answers

Summary of Contents for HOMEDEPOT MRS-LKEX-66AAK

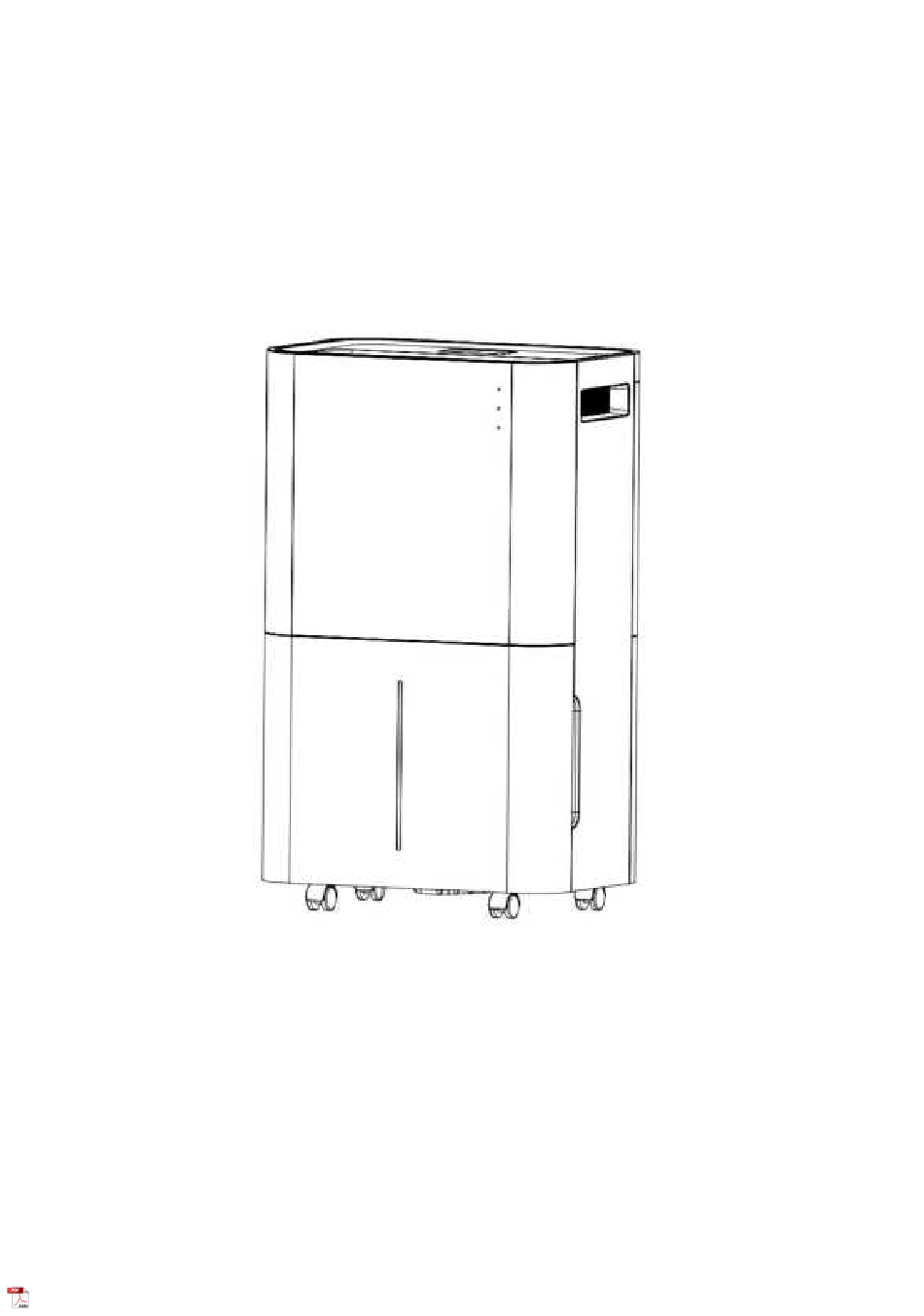

  • Page 1 DEHUMIDIFIER INSTRUCTION MANUAL Please keep this manual carefully for further reference! Thank you for selecting our dehumidifier. Be sure to read this manual carefully before using it. Any questions, please contact the seller for help.
  • Page 2 PLEASE DO NOT RETURN TO STORE Please do not return this product to the retailer!! We are able to assist you in ANY way. If you find that you have any trouble with assembly or missing or damaged parts, please contact the seller.

  • Page 3: Table Of Contents

    CONTENT BEFORE YOU BEGIN...................1 FOR YOUR SAFETY..................1 PRODUCT OVERVIEW.................3 INSTALLATION....................4 OPERATION ....................6 MAINTENANCE....................11 TROUBLESHOOTING..................12...

  • Page 4: Before You Begin

    1. BEFORE YOU BEGIN Please read the operating instructions carefully before using your dehumidifier for the first time. 1.1 PRODUCT DESCRIPTION The dehumidifier is used to remove excessive moisture from the air. The resulting reduction in relative humidity protects buildings and their contents from the adverse effects of excess humidity.
  • Page 5  Do not climb or sit on the unit.  Do not insert fingers or other objects into the air outlet.  Do not touch the air inlet or the aluminum fins of the unit.  Do not operate the unit if it is dropped, damaged or showing signs of product malfunction. ...

  • Page 6: Product Overview

    3. PRODUCT OVERVIEW FEATURES  Powerful moisture removal  Humidity Monitor shows current air humidity  Auto mode automatically adjusts humidity levels  A 24-hour timer to set the time of operation  Effectively removes moisture, dust from the air ...

  • Page 7: Installation

    4. INSTALLATION 4.1 LOCATION 1. Place the unit on a firm, level surface in an area with at least 1ft of free space around it to allow for proper air circulation. 2. Never install the unit where it could be subject to: ...
  • Page 8  Do not operate or store the unit in direct sunlight or rain.  It is normal that the air outlet is warm to touch after continuous operation on hot days.  Empty the water tank before moving the device. ...

  • Page 9: Operation

    5. OPERATION 5.1 CONTROL PANEL 5.2 SETTINGS Power Button In standby state, press the power button to turn on the unit. The operation indicator lights up, the fan runs at default high speed, and the default humidity level is 50%. In power-on state, press the power button to turn off the unit.
  • Page 10 Increase Button Press this button to set humidity level and timer; Humidity level can be adjusted from 30% to 35% - 40% - 45% - 50% - 55% - 60% - 65% - 70% - 75% - 80% - 30%; The timer is adjustable in 1hr increments up to 24 hours.
  • Page 11 5. DRAINAGE There are two ways to remove collected water A. Manual draining: Empty water tank manually. B. Continuous draining: Use gravity to drain condensate water by connecting a drain hose. 5.3.1 EMPTYING THE WATER TANK When the water tank is full, the unit turns off automatically. It will run again once you empty the water tank and install it back properly.
  • Page 12 Empty the water tank 3. Push the bucket gently all the way into the unit. IIWarning Do not discard the magnets and plastic rivets in the tank. Otherwise, the dehumidifier cannot operate properly, and the machine will not automatically stop working when the water tank is full.
  • Page 13 Drain hose Warning 1. Please do not block the drain or drain hose. If it’s blocked, condensed water will flow into the tank 2. Please do not bend the drain pipe. The height of the drain hose should be lower than the outlet The drain hose must be firmly connected to the outlet...

  • Page 14: Maintenance

    6.MAINTENANCE Note: before cleaning and maintaining the machine, please be sure to turn off the machine and unplug the power to avoid electric shock. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit.

  • Page 15: Troubleshooting

    7.TROUBLESHOOTING SYMPTOM INSPECTION SOLUTION  Check the power  Insert the power cord securely into the connection. wallOutlet. The unit is not  Check if the water level  Empty the water tank and reinstall correctly. operating. indicator lights up? ...
