MACHINE SCREW JACKS
INSTALLATION, MAINTENANCE, &
LUBRICATION INSTRUCTIONS
THIS ACTIONJAC™ MACHINE SCREW JACK
WAS PROUDLY MADE IN THE USA BY THE
EMPLOYEES OF NOOK INDUSTRIES, INC.
TABLE OF CONTENTS
General instructions .................................... 2
Ordering Spare/Repair Parts ........................ 2
General Specifications ................................. 3
Lubrication ................................................... 3
Installation Instructions ................................ 4
Tips for Disassembly & Reassembly ........... 5
Disassembly Instructions ......................... 5-8
Exploded View of Jack Units ..................... 6-7
Reassembly .............................................. 8-9
Troubleshooting ...................................... 9-10
Anti-Backlash Adjustment .......................... 11
Advertisement
Table of Contents
Related Manuals for NOOK ActionJac 1-MSJ
Summary of Contents for NOOK ActionJac 1-MSJ
-
Page 1: Table Of Contents

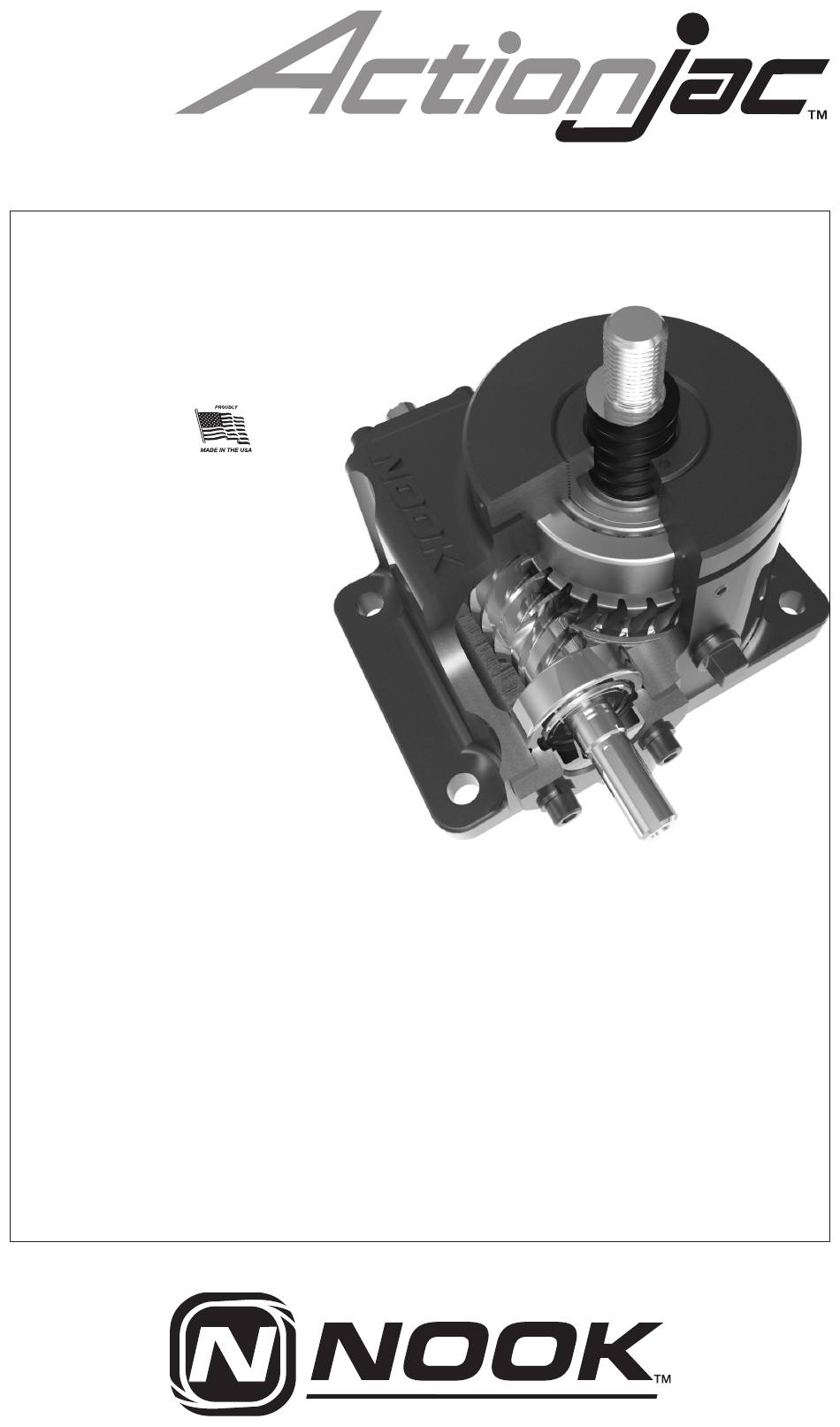

MACHINE SCREW JACKS INSTALLATION, MAINTENANCE, & LUBRICATION INSTRUCTIONS THIS ACTIONJAC™ MACHINE SCREW JACK WAS PROUDLY MADE IN THE USA BY THE EMPLOYEES OF NOOK INDUSTRIES, INC. TABLE OF CONTENTS General instructions ........2 Ordering Spare/Repair Parts ......2 General Specifications ......... 3 Lubrication ........... -
Page 2: General Instructions
The below table is the amount the lifting screw for all models should be require the services of a factory engi- tative or contact Nook Industries at (216) of lubricant applied at the factory. When well lubricated and kept free of grit, dirt, or neer. -
Page 3: Installation Instructions
If improper by Nook Industries, they are NOT factory of construction, which may vary from unit misalignment. lubricant is used or insufficient lubrication set. -
Page 5: Reassembly
Unscrew lifting screw from drive worm shaft. This will loosen the bear- Drive sleeve and gear assembly Tapered Roller bearings, may result in sleeve. ing cup to facilitate removal. should now lift easily from the hous- their being damaged. ing. Remove socket head set screws in Remove the worm shaft bearing REASSEMBLY... -
Page 6: Anti-Backlash Adjustment
⁄ 2. Alignment See lifting shaft failure No. 2. Locknut 5, 10-MSJ ⁄ Set Screw 15, 20, 30-MSJ ⁄ 3. Side Load Check with Nook Industries Engineering Department for al- 35-MSJ ⁄ 50-MSJ ⁄ lowable size load. 75-MSJ ⁄ 100-MSJ... - Page 7 The equipment shown in this bulletin is intended for industrial use only and should not be used to lift, support, or otherwise transport human cargo, un- less you have a written statement from Nook Industries, Inc. that the Jack unit as used in your application is suitable for human cargo.
