Projector Specifications
Model:
iPro-60E
Voltage:
110 to 277 V*
Lamp
:
60 W
(LED)
Rated Frequency:
50/60 Hz
LED Lamp Life:
30 - 40,000 Hrs
Color Temp.
:
6,000 - 6,500 K
(K)
Luminous flux:
5,400 lm
Weight:
8 lbs.
Front View
3 1/2 " / 87 mm
Bottom View
Warranty
This projector comes with a 1-year warranty that begins on the
date of purchase and includes labor and parts.
2
iPro-80E
iPro-100E
110 to 277 V*
110 to 277 V*
80 W
100 W
50/60 Hz
50/60 Hz
30 - 40,000 Hrs
30 - 40,000 Hrs
6,000 - 6,500 K
6,000 - 6,500 K
7,200 lm
9,000 lm
8.5 lbs.
8.5 lbs
* US only - 240 V outside of US
5 5/16 " / 135 mm
2 3/8 " / 60 mm
2 7/8 " / 72 mm
Mounting bracket
3 1/2 " / 87 mm
Side View
Optical lens
Lock ring
Top View

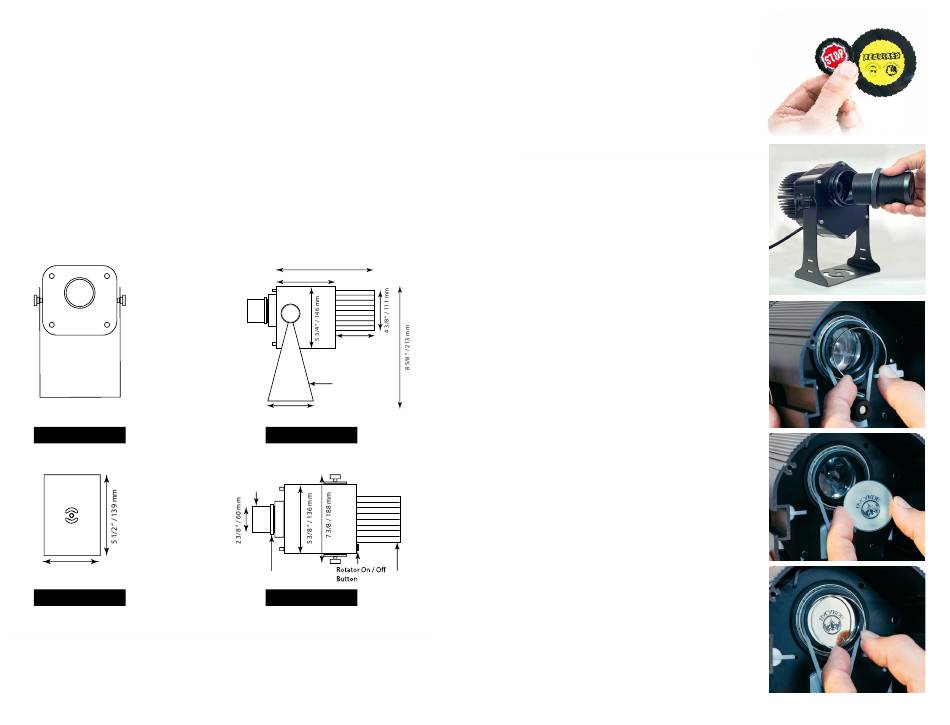

Gobo Installation
iPro-150E
and Exchange
110 to 277 V*
150 W
50/60 Hz
30 - 40,000 Hrs
6,000 - 6,500 K
Step 1
13,500 lm
Unlock the lens lock ring by
8.5 lbs.
unscrewing it counter clockwise.
Then turn the optical lens counter
clockwise until it comes off.
Step 2
Remove the metal pressure clip by
squeezing together the two bent ends.
WARNING: PLEASE USE CAUTION WHEN REMOVING
OR INSTALLING THE PRESSURE CLIP, AS IT MAY SPRING
OR JUMP OUT UNEXPECTEDLY.
Step 3
Place the gobo with image facing
down (reversed) in the gobo slot.
Heat
sink
Step 4
Place the metal pressure clip on top of
the gobo and make sure it is pressing
against the gobo evenly.
3
