Wireless-G Broadband Router with 2 Phone Ports

The Status Tab - Local Network

The Local Network screen on the Status Tab displays the status of your network.
MAC Address. This is the Router's MAC Address, as seen on your local, Ethernet network.
IP Address. This shows the Router's IP Address, as it appears on your local, Ethernet network.
Subnet Mask. When the Router is using a Subnet Mask, it is shown here.
DHCP Server. If you are using the Router as a DHCP server, that will be displayed here.
Start IP Address. For the range of IP Addresses used by devices on your local, Ethernet network, the beginning
of that range is shown here.

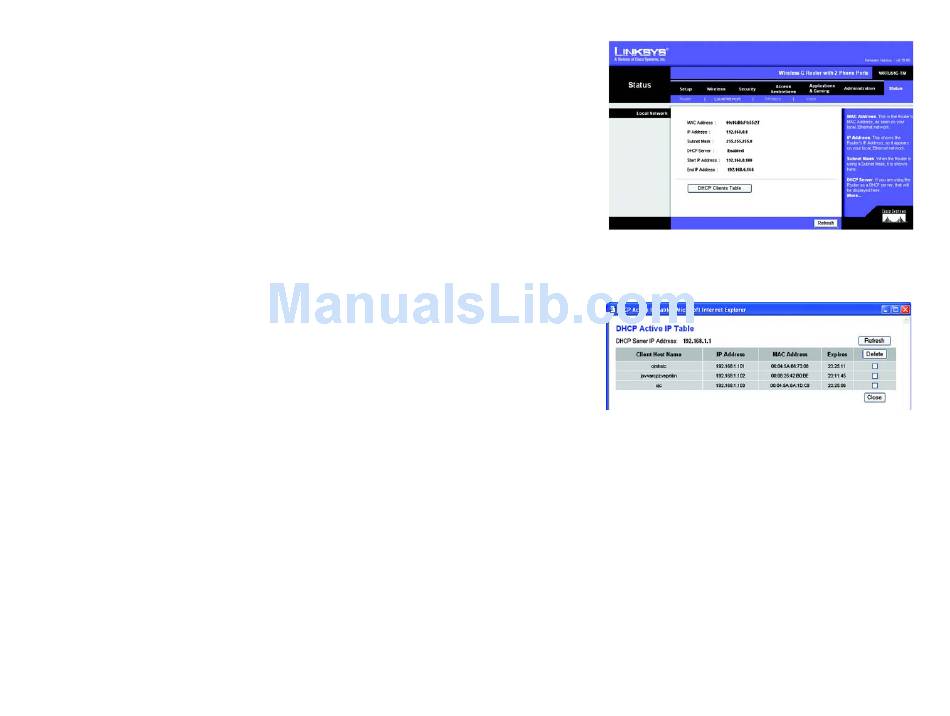

Figure 5-46: Status Tab - Local Network

End IP Address. For the range of IP Addresses used by devices on your local, Ethernet network, the end of that
range is shown here.
DHCP Clients Table. Clicking this button will open a screen to show you which PCs are utilizing the Router as a
DHCP server. You can delete PCs from that list, and sever their connections, by checking a Delete box and
clicking the Delete button.

Figure 5-47: DHCP Clients Table

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports 40
