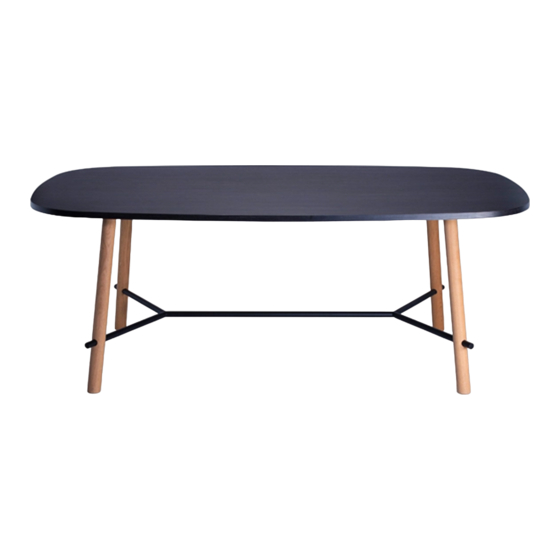

IDEO TABLE FRAME
ASSEMBLY INSTRUCTIONS – OAK LEGS
1.00

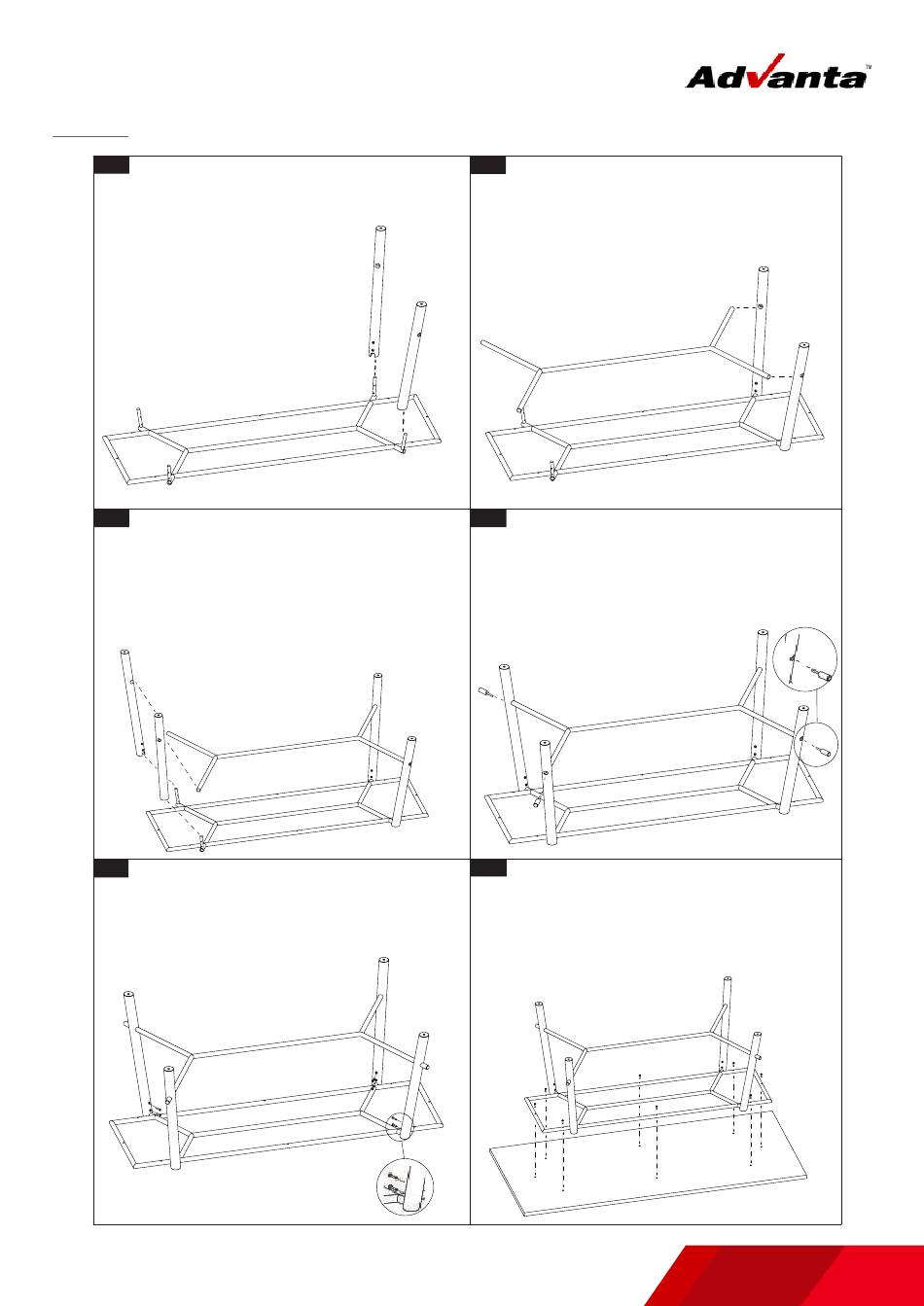

INSERTION THE FIRST TWO LEGS
01 - Insert two legs in the upper frame pins.
3.00
INSERTION OF THE LAST TWO LEGS WITH REINFORCEMENT CROSS
01 - Insert the other two legs into the frame pins, and at the same time
insert the lower frame inside the legs holes
5.00
ASSEMBLY OF THE LEGS WITH UPPER FRAME
01 - Fix the screws VTCB630 to block the legs to the upper frame.
1800 800 980
info@advanta.com.au
2.00
INSERTION OF THE REINFORCEMENT CROSS
01 - Insert lower frame into the legs holes
4.00
ASSEMBLY OF THE REINFORCEMENT CROSS
01 - Screw by hand the 4 knobs and block the legs
6.00
ASSEMBLY OF THE TABLE TOP
01 - Fix the plane to the upper frame with screws VTBEI635N, pay
attention to put something under the plane to avoid scratch .
www.advanta.com.au
.
Seating Australia Since 1984
