- Page 1 U S E R M A N U A L 4K60 2x2 TV WALL CONTROLLER Enjoy the vivid world!

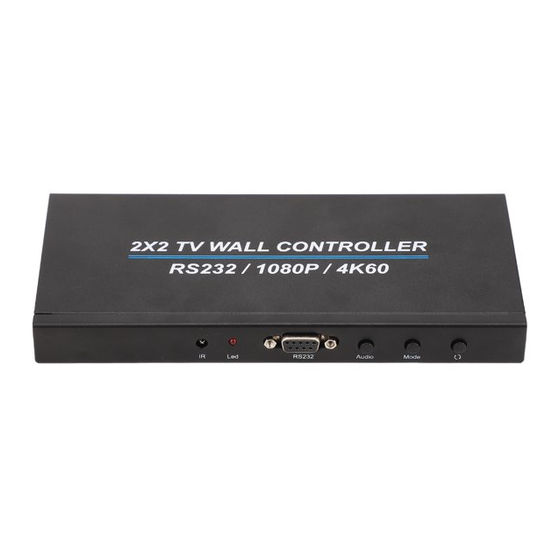

- Page 2 Introduction 4K60 2x2 tv wall controller The 2x2 tv wall controller , support 1-way HDMI input and 4 HDMI output, the main function is to divide a complete HDMI,HD image signal into 4 blocks and assign to 4 video display unit (such as Rear projection unit, LCD TV, etc.), Complete with 4 HDMI high-definition video display units...
- Page 3 Features *Support 1 HDMI input *Support input HDMI 2.0 *Support 4 HDMI outputs *Support input 4K60HZ,and lower resolution *Support output resolution 1920x1080P60 *Support multiple splicing modes, easy to operate, plug and play Physical interface diagram OUTPUT → HDMI Signal Output INPUT →...
- Page 4 Remote controller Operation steps STEP 1: Connect hdmi source to hdmi input with HDMI cable,connect hdmi output to TVs. STEP 2: Connect 12V power adaptor. STEP 3: Set up splicing mode by the MODE button on the unit or remote controller.
- Page 5 The Package includes 1. 2X2 tv wall controller 2. Power adapter 3. User Manual Connection operation...
- Page 6 RS232 remote control This product supports RS232 remote command control and returns the status.Connect the RS232 port of the splicer to the PC COM port by a Rs232 uncrossed cable or USB to RS232 adapter. Then install serial port tools in the PC can use RS232 control.
