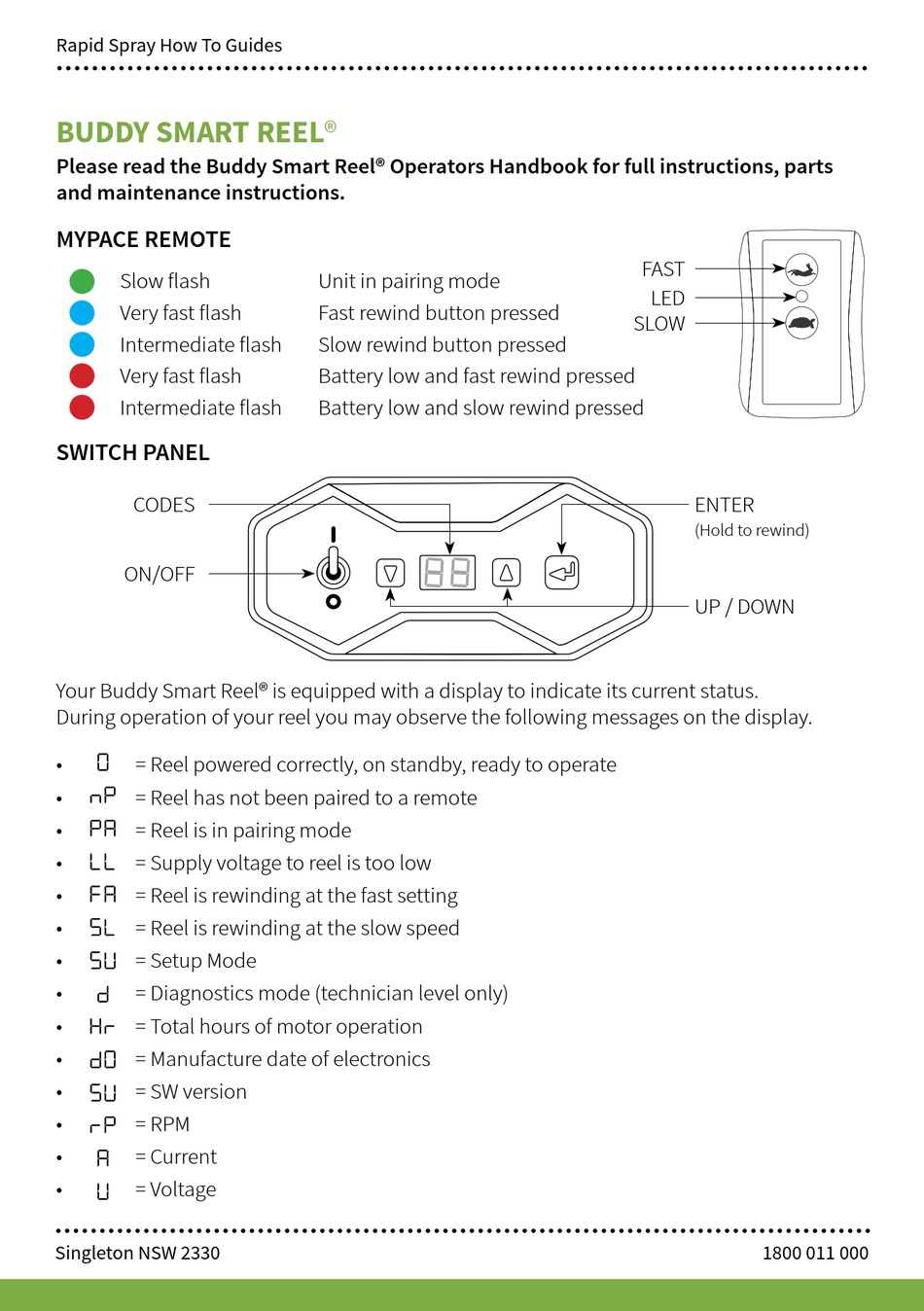

BUDDY SMART REEL®
Please read the Buddy Smart Reel® Operators Handbook for full instructions, parts
and maintenance instructions.
MYPACE REMOTE
Slow flash
Very fast flash
Intermediate flash
Very fast flash
Intermediate flash
SWITCH PANEL
CODES
ON/OFF
Your Buddy Smart Reel® is equipped with a display to indicate its current status.
During operation of your reel you may observe the following messages on the display.
•
= Reel powered correctly, on standby, ready to operate
0
•
= Reel has not been paired to a remote
nP
•
= Reel is in pairing mode
PA
•
= Supply voltage to reel is too low
LL
•
= Reel is rewinding at the fast setting
FA
•
= Reel is rewinding at the slow speed
5L
•
= Setup Mode
5V
•
= Diagnostics mode (technician level only)
d
•
= Total hours of motor operation
Xr
•
= Manufacture date of electronics
d0
•
= SW version
5V
•
= RPM
rp
•
= Current
a
•
= Voltage
v
Singleton NSW 2330
Unit in pairing mode
Fast rewind button pressed
Slow rewind button pressed
Battery low and fast rewind pressed
Battery low and slow rewind pressed
FAST
LED
SLOW
ENTER
(Hold to rewind)
UP / DOWN
1800 011 000
