Summary of Contents for Contest architecture IPLINE 12-Six

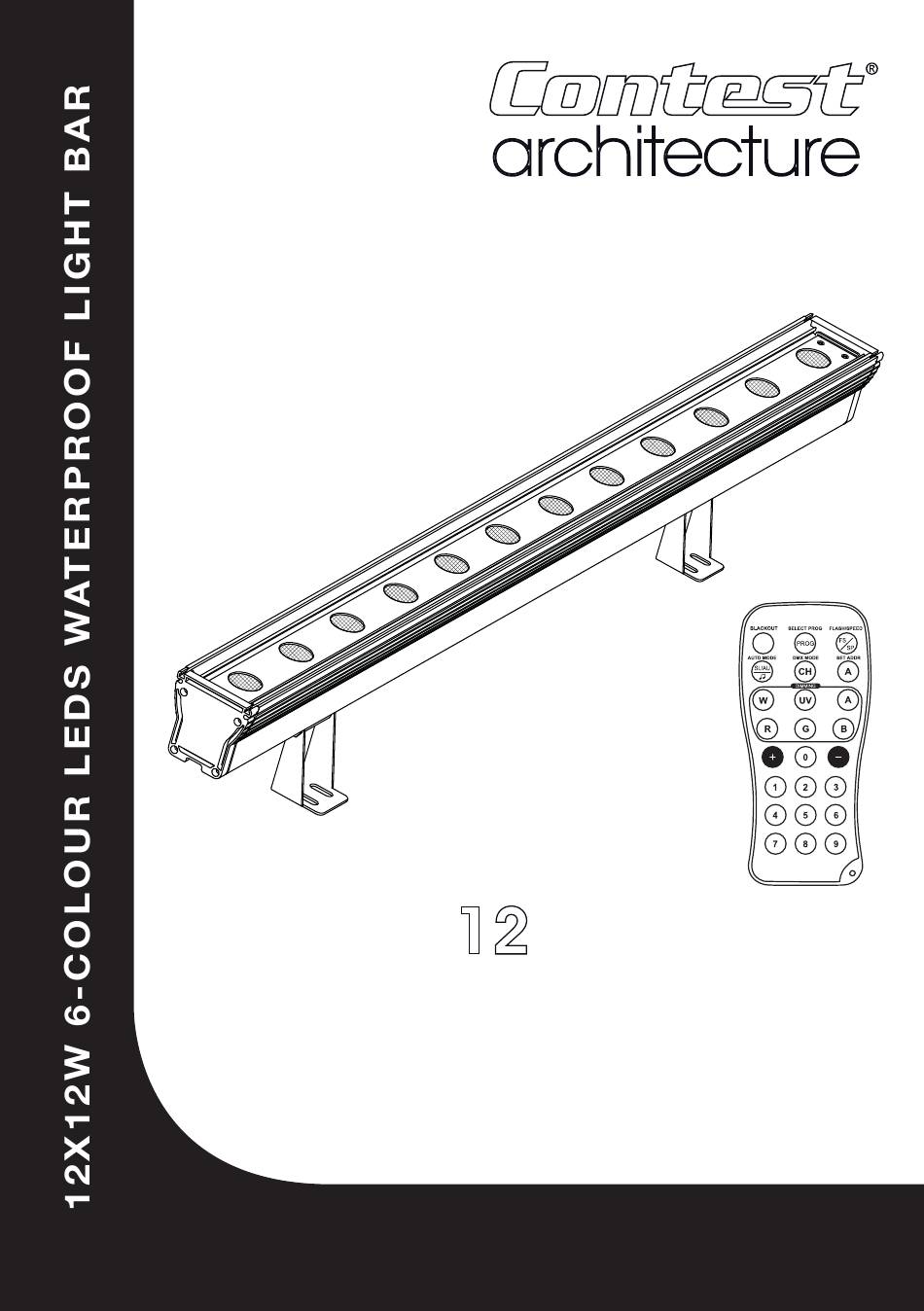

  • Page 1 IPLINE -Six USER GUIDE 10267 - January 2015 Version 1.0...

  • Page 2: Important Safety Information

    IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 1 - Safety information Important safety information This product contains non-isolated electrical com- Any maintenance procedure must be performed by a ponents. Do not undertake any maintenance opera- CONTEST authorised technical service. Basic clea- tion when it is switched on as it may result in electric ning operations must thoroughly follow our safety shock.
  • Page 3 IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.

  • Page 4: Technical Specifications

    IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 2 - Introduction The IPLINE12-six projectors are equipped with 6-in-1 LEDs giving you access to an exclusive colour palette. You can now control groups of LEDs to create incredible sequencing effects. The 12W diods produce an powerful light output absolutely perfect for ambient lighting and animations.

  • Page 5: Infrared Remote Control

    IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 5 - Infrared remote control Button Action BlackOut Projector OFF Gives you access to the 30 static colours, and to macros. Use the Select Prog number keys 0 to 9, then use the + and - keys. The action of this key depends on the mode of the projector : - If the projector is using a macro or is in auto mode, this key acts on the speed.
  • Page 6 IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 6 - The various DMX modes In order to be fully compatible with many projectors and installations, the IPLINE12-Six features several DMX modes. 6.1 - 6-channel mode: RGBWAUV DMX values Effects CHANNEL 1 000 - 255 Red from 0 - 100%...
  • Page 7 IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 6.4 - 3-channel mode : Fixed colours, Macros / Dimmer / Speed / Pattern CHANNEL 1 CHANNEL 2 CHANNEL 3 000 - 003 004 - 007 008 - 011 Orange Yellow 012 - 015 Green 016 - 019...
  • Page 8 IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 6.5 - 10-channel mode = RGBWA+UV / Fixed colours,Macros / Dimmer / Strobe / Macros speed CH10 CH 9 CH 8 Amber White Blue Green 000 - 003 (000 - 255) (000 - 255) (000 - 255) (000 - 255)
  • Page 9 IPLINE12-Six - 12x12W 6-colour LEDs waterproof light bar English 6.6 - Mode 40 canaux = Colours per zone/Fixed colours,Macros, Patterns/Dimmer / Strobe / Speed CH40 CH 39 CH38 CH37 CH36 UV-Z6 UV-Z1 Amber-Z1 White-Z1 Blue-Z1 Green-Z1 Red-Z1 000 - 003 No function (000 - 255) (000 - 255)
  • Page 10 Because CONTEST® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
