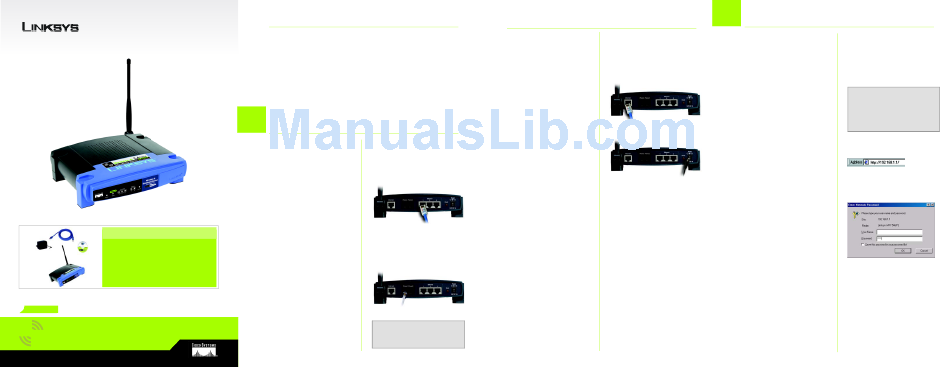

Linksys WRT54GP2 Quick Installation

®
A Division of Cisco Systems, Inc.
Package Contents

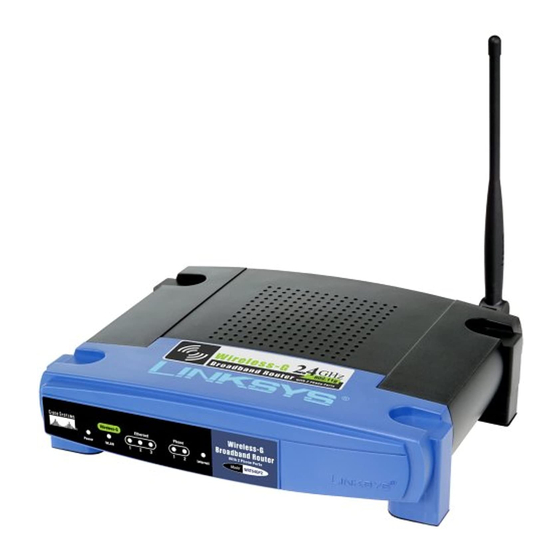

• Wireless-G Broadband Router with 2 Phone Ports
• Setup Wizard CD-ROM with Norton Internet Security
• User Guide on CD-ROM
• Quick Installation
• Network Cable
• Power Adapter
2.4 GHz
Wireless-G
802.11g

Broadband Router

Wireless with 2 Phone Ports Quick Installation
Model No.
WRT54GP2
Model No.
There are two ways to configure the Router. Choose one of the following:
• Run the Setup CD-ROM - It is strongly recommended that you use the
Setup CD-ROM. Insert the Setup CD-ROM into the CD-ROM drive, and
follow the on-screen instructions.
• Use this Quick Installation guide - If you wish, you can use the Router's
Web-based Utility. Proceed to Step 1 of this Quick Installation.
1
Connect the Router
A
Make sure that all of your
hardware is powered off,
including the Router, PCs, and
cable or DSL modem.
B
Connect one end of an
Ethernet network cable to one
of the numbered ports on the
back of the Router. Connect
the other end to an Ethernet
port on a network device, e.g.,
B
a PC, print server, or switch.
Repeat this step to connect
more PCs or other network
devices to the Router.
C
If necessary, disconnect the
RJ-11 telephone cable of your
telephone from the telephone
wall jack. Then connect that
end to the Router's PHONE 1
port.
C
NOTE: Make sure your telephone
is set to its tone setting (not
pulse).
D
If you have a second Internet
phone line, repeat step C to
connect a telephone or fax
machine to the Router's
PHONE 2 port.
E
Connect your cable or DSL
modem's Ethernet cable to the
Router's Internet port.
F
Power on the cable or DSL
E
modem.
G
Connect the included power
adapter to the Router's Power
port, and then plug the power
adapter into an electrical
outlet.
G
The Power LED on the front
panel will light up as soon as
the power adapter is
connected properly.
H
Power on the PC you wish to
use to configure the Router.
2
Configure the Broadband Router
In Step 2, you will need the setup
instructions provided by your Internet
Service Provider (ISP). If you do not
have this information, then contact
your ISP before proceeding.
The instructions from your ISP tell you
NOTE: Make sure your PC's
how to set up your PC for Internet
access. Because you are now using Ethernet adapter is set to obtain
the Router to share Internet access an IP address automatically. For
among several computers, you will
more information, refer to
use the setup information to
Windows Help.
configure the Router instead of
your PC.
A
Open your PC's web browser.
Enter http://192.168.1.1 (the
Router's default local IP
A
address) in the web browser's
Address field. Then press the
Enter key.
B
A screen will appear and ask
you for a User Name and
Password. Leave the User
Name field blank, and enter
admin (the default) in the
Password field. (Later you
should set a new password
using the Administration tab's
B
Management screen. This will
help secure access to the
Web-based Utility.)
Then click the OK button.
