Instruction Manual

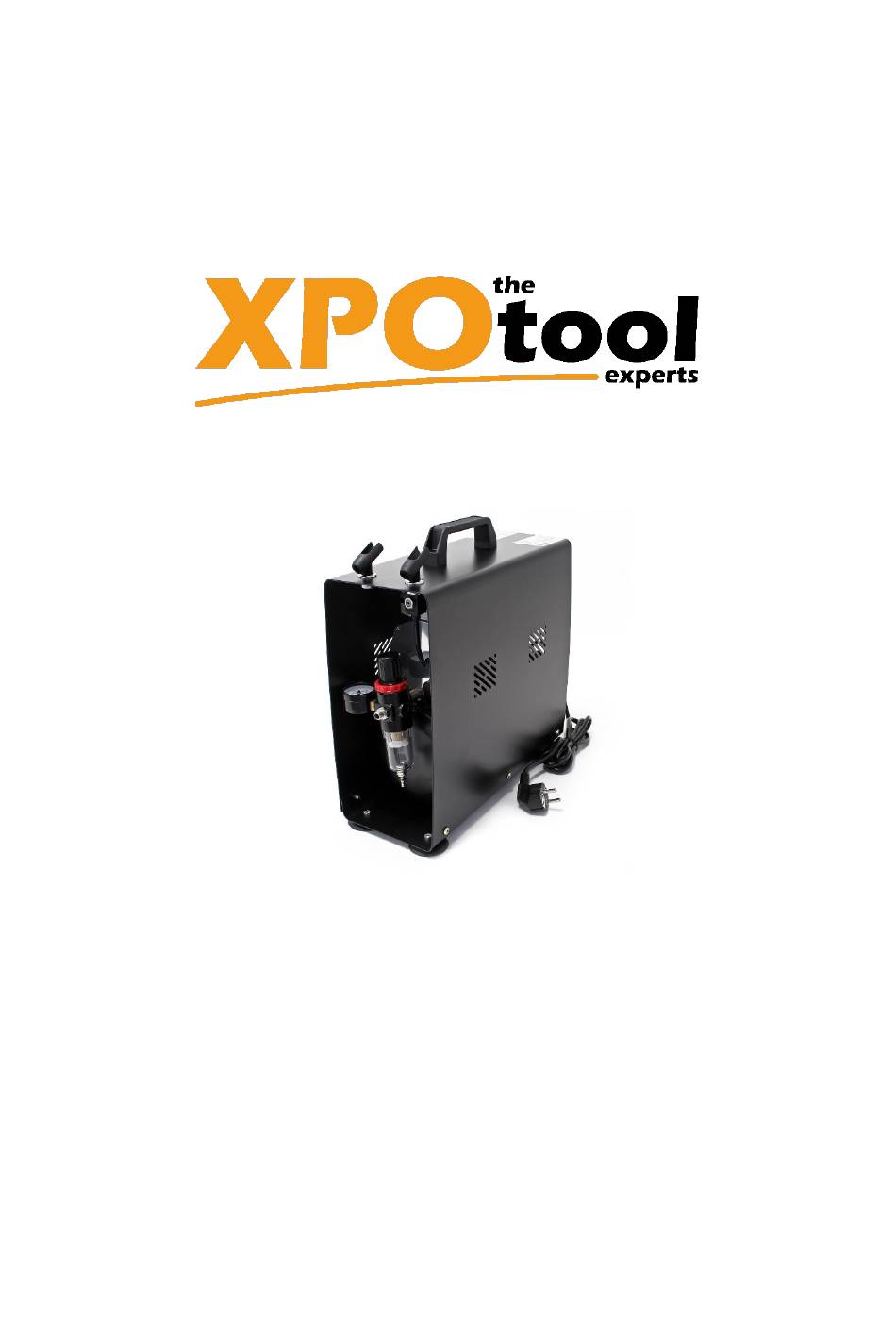

Airbrush Compressor AS196A
34207
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for XPOtool AS196A
Summary of Contents for XPOtool AS196A
- Page 1 Instruction Manual Airbrush Compressor AS196A 34207 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany E-mail: service@wiltec.info Phone: +49 2403 55592–0 Fax: (+49 2403 55592–15) https://www.XPOtool.com Item 34207 Page 2 The Tool Experts 10 2022-1...
- Page 3 • Switch off the compressor if you do not use it. Disconnect from mains before you repair, recon- dition, maintain, clean, or replace parts. Never use the power cable as handle. Keep the cable https://www.XPOtool.com Item 34207 Page 3 The Tool Experts...
- Page 4 Pressure range (㍴) 0–4 Weight (㎏) Capacity (ℓ) Size (㎜) 320×135×350 Suitable nozzles (㎜) 0.2–1.0 Sound level (dB (A)) approx. 45 Length of cable (m) Hose connection (㎜) 9.51 (⅛″) https://www.XPOtool.com Item 34207 Page 4 The Tool Experts 10 2022-1...
- Page 5 The operating pressure may vary according to the connected airbrush gun. Operating the pressure regulator with filter a) Pressure regulator b) Pressure gauge c) Water drain plug Product name: Pressure regulator with filter and manometer Type: AFR-2000 https://www.XPOtool.com Item 34207 Page 5 The Tool Experts 10 2022-1...
-
Page 6: Operation
Double switch Handle Position 1: autostop at 4 bar Position 2: maximum pressure at 6 bar Airbrush gun holder Pressure regulator Pressure gauge Air outlet Water drain plug Mains plug https://www.XPOtool.com Item 34207 Page 6 The Tool Experts 10 2022-1... -
Page 7: Troubleshooting
Valve destroyed because of too Replace valves or cylinder cover. long a work with too high a pres- sure. https://www.XPOtool.com Item 34207 Page 7 The Tool Experts 10 2022-1... - Page 8 Bearing Cylinder block Three-way manifold Rotary motor O-ring Check valve Front main unit Cylinder head Hose nut Counterweight Filter valve Plug Pressure gauge Handle Sleeve Bearing Pressure switch Safety valve https://www.XPOtool.com Item 34207 Page 8 The Tool Experts 10 2022-1...
- Page 9 Retainer ring Water release needle Drain valve Compression ring Capacitor Adaptor Hose On/off switch Hose Solenoid valve Wire Screw-nut Cylinder Rubber pad Base plate Valve plate Hexagon head nut Cover https://www.XPOtool.com Item 34207 Page 9 The Tool Experts 10 2022-1...
- Page 10 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 34207 Page 10 The Tool Experts 10 2022-1...
