Transduction TR-LCD1500-ITX-7 User Manual

Industrial panel/rack mount pc with intel dual atom processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TRANSDUCTION
USER'S MANUAL
Version 1.0
06/26/15

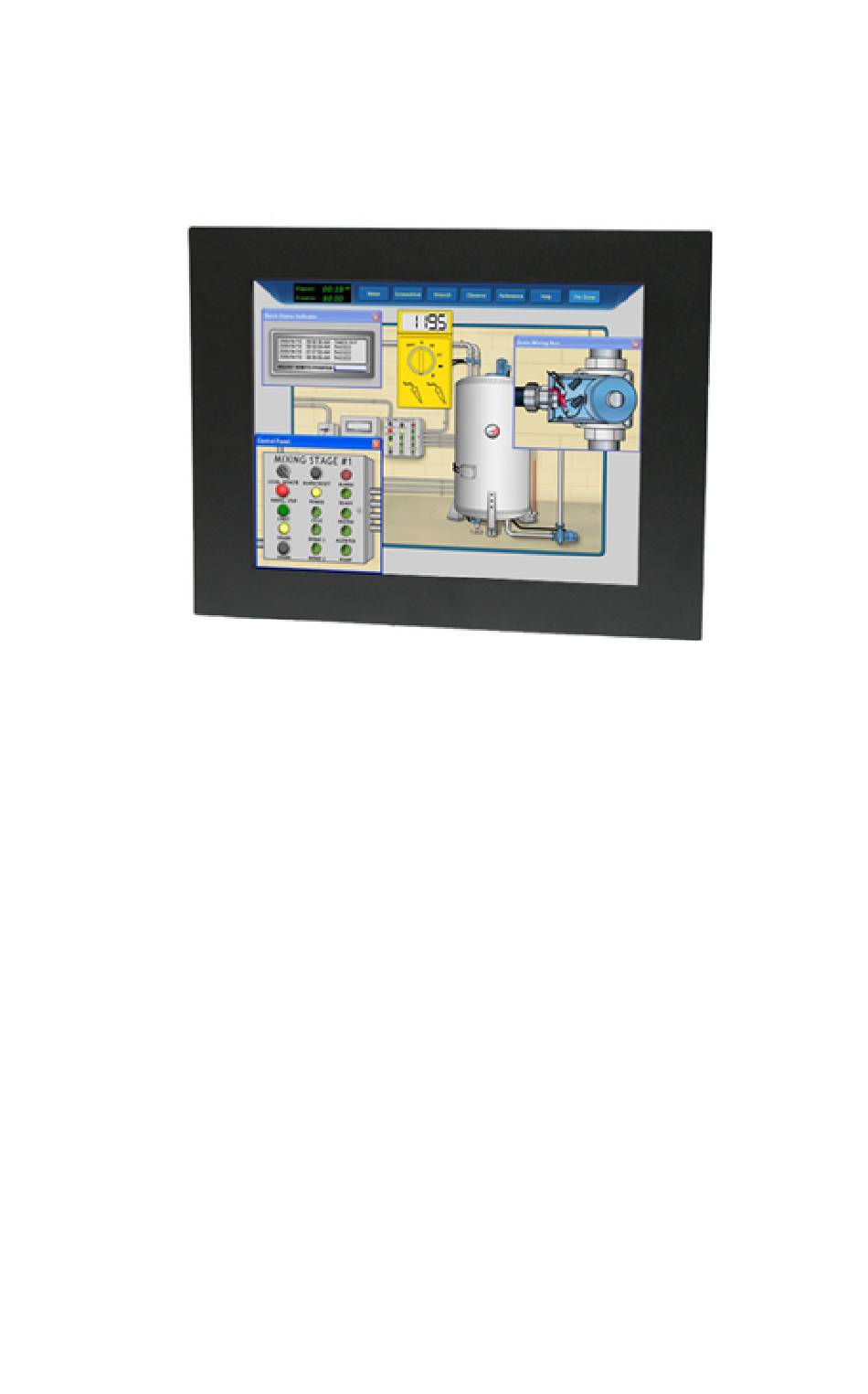

TR-LCD1500-ITX-7 INDUSTRIAL PANEL/RACK
MOUNT PC WITH INTEL DUAL ATOM PROCESSOR
AND 15" LCD TOUCH SCREEN DISPLAY
5155 Spectrum Way, Mississauga, ON, Canada L4W 5A1
TEL: 1-800-268-0427, 905-625-1907
FAX: 905-625-0531
Email: sales@transduction.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-LCD1500-ITX-7 and is the answer not in the manual?

Questions and answers

Related Manuals for Transduction TR-LCD1500-ITX-7

Summary of Contents for Transduction TR-LCD1500-ITX-7

  • Page 1 TRANSDUCTION USER’S MANUAL Version 1.0 06/26/15 TR-LCD1500-ITX-7 INDUSTRIAL PANEL/RACK MOUNT PC WITH INTEL DUAL ATOM PROCESSOR AND 15” LCD TOUCH SCREEN DISPLAY 5155 Spectrum Way, Mississauga, ON, Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907 FAX: 905-625-0531 Email: sales@transduction.com...

  • Page 2: Table Of Contents

    LCD Display Operation ................9 TR-LCD1500-ITX-7 SBC Features ............10 TR-LCD1500-ITX-7 SBC Specifications..........11 Chapter 2 – TR-LCD1500-ITX-7 SBC Jumpers & Connectors ....14 Section 1 – Jumpers on the TR-LCD1500-ITX-7 SBC ......15 Jumper Locations on the TR-LCD1500-ITX-7 SBC ......16 JP1, JP2: COM Power Selection ............
  • Page 3 Table of Contents Section 2 – Connectors on the TR-LCD1500-ITX-7 (Cont’d) COM2 Serial Port ................25 COM3, COM4, COM5, COM6 Serial Ports ........26 PWROUT1 Connector ..............26 PWROUT2 Connector ..............26 LPT Port ................... 27 PS/2 Keyboard & Mouse Connector ..........28 PS2KBMS Connector ...............
  • Page 4 Table of Contents Section 2 – Connectors on the TR-LCD1500-ITX-7 (Cont’d) DIO Pin Header ................35 LVDS Connector ................36 CF-II Connector ................37 Chapter 3 – BIOS Setup ................37 Main Menu ..................43 Standard CMOS Features ..............46 Advanced BIOS Features ..............

  • Page 5: Important Information

    All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify Transduction. Regardless of the foregoing statement, Transduction assumes no responsibility for any errors that may appear in this document nor for results obtained by the user as a result of using this product.

  • Page 6: Product Description & Warranty

    Warranty Warranty is unconditional for 3 years from the date of Transduction invoice, FOB our plant in Mississauga. Transduction Return Material Authorization (RMA) number must be obtained prior to return of any goods for service and clearly shown on the shipping label.

  • Page 7: Chapter 1 - Introduction

    Introduction This manual is designed to give you information on the TR-LCD1500-ITX-7 industrial PC.The topics covered in this chapter are as follows: TR-LCD1500-ITX-7 Specifications ......7-8 LCD Display Operation ..........9 TR-LCD1500-ITX-7 SBC Features ........ 10 TR-LCD1500-ITX-7 SBC Specifications ..... 11-13...

  • Page 8: Tr-Lcd1500-Itx-7 Specifications

    0 ~ 50ºC (32º ~ 122ºF) with hard drive 0 ~ 60ºC (32º ~ 140ºF) for 2 hours with Storage Temperature -20 ~ 85ºC (-4º ~ 185ºF) Humidity Relative humidity 10 ~ 90%, non-condensing Storage: Relative humidity 45% max. non-condensing TR-LCD1500-ITX-7 User Manual...
  • Page 9 Warranty 3 years Dimensions Panel mount version - 3.943” (4.625” with CD/DVD) (H) x 12.250” (D) x 16.000” (W) Rack mount version - 3.943” (4.625” with CD/DVD) (H) x 12.230” (D) x 18.960” (W) Weight 7kg (15.43lbs) TR-LCD1500-ITX-7 User Manual...

  • Page 10: Lcd Display Operation

    3. LCD display settings can be changed in SET-UP section of the video driver. 4. For touch screen installation and calibration is "Resistive Touch Screen Option" section in the appendix of the manual. TR-LCD1500-ITX-7 User Manual...

  • Page 11: Tr-Lcd1500-Itx-7 Sbc Features

    Multiple display devices: VGA1, VGA2, HDM, Single Channel 24-bits LVDS LCDI.  Single DC +12V input power for normal operation.  Dual Mini Card Socket and one PCI 32-bits slot for flexible I/O expansion.  7.1 channels surrounding audio support. TR-LCD1500-ITX-7 User Manual...

  • Page 12: Tr-Lcd1500-Itx-7 Sbc Specifications

    PXE Boot ROM and WOL supported. On Board I/O  Six serial ports as COM1~COM6. COM2 is RS232/422/485 selectable by jumper.  COM1 and COM2 are D-Sub on rear panel. Pin9 is powered with either +5V or +12V by jumper. TR-LCD1500-ITX-7 User Manual...
  • Page 13 Two Audio-Jacks on rear for Audio Line-out and MIC.  7.1 channel surrounding audio supported. Power  Single DC 12V input with 4-pins Mini-DIN connector.  Supplies +5V and +12V output power for peripheral devices and LCD panel. TR-LCD1500-ITX-7 User Manual...
  • Page 14 One for CPU cooler and two for System FAN. Dimensions  190mm (W) x 135mm (L).  4 screw holes on four corners. Operating Temperature  0 to 60 C operating Range.  Relative Humility: 5~95%, non-condensing. TR-LCD1500-ITX-7 User Manual...

  • Page 15: Chapter 2 - Tr-Lcd1500-Itx-7 Sbc Jumpers & Connectors

    This chapter provides information on the TR-LCD1500-ITX-7 jumper settings and internal and external connectors. The topics covered are as follows: Section 1 - Jumpers on the TR-LCD1500-ITX-7 .... 16-19 Section 2 - Connectors on the TR-LCD1500-ITX-7 ..20-37 TR-LCD1500-ITX-7 User Manual...

  • Page 16: Section 1 - Jumpers On The Tr-Lcd1500-Itx-7 Sbc

    Section 1 Jumpers on the TR-LCD1500-ITX-7 SBC The jumpers on the TR-LCD1500-ITX-7 SBC allow you to configure your board according to the needs of your applications. The following table lists the jumpers on TR-LCD1500-ITX -7 SBC and their respective functions.

  • Page 17: Jumper Locations On The Tr-Lcd1500-Itx-7 Sbc

    Jumper Locations on the TR-LCD1500-ITX-7 TR-LCD1500-ITX-7 User Manual...

  • Page 18: Jp1, Jp2: Com Power Selection

    Remove Jumper cap from pin1&2. Short the pin2 and pin3 for three seconds. Put Jumper cap back to pin1 & 2. Turn on your computer. Hold Down <Delete> during boot up and enter BIOS setup to enter your preferences. COMS NORM TR-LCD1500-ITX-7 User Manual...

  • Page 19: Jp4: Cf Card Mode Selection

    Channel Master Device or Slave Device. Master Slave JP5: COM1 Power Pin (Pin9) JP5 can be used to select the COM supple power: +5V or +12V. JP5: COM6 Pin9 power +12V AT MODE: AT Mode Selection AT Mode ATX Mode TR-LCD1500-ITX-7 User Manual...

  • Page 20: Lcdpwr: Lcd Panel Power Selection

    RS485, while COM3, COM4. COM5 and COM6 support diffused RS232 protocol. The Protocols of COM2 can be set up through jumpers. COM2MODE: COM2 Protocols selection. The pin-out for each mode is illustrated on next chapter. COM2MODE1 I/F TYPE RS-232 RS-422 RS-485 TR-LCD1500-ITX-7 User Manual...

  • Page 21: Section 2 - Connectors On The Tr-Lcd1500-Itx-7

    Section 2 Connectors on the TR-LCD1500-ITX-7 The connector on the TR-LCD1500-ITX-7 allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers and etc. The following table lists the connectors on TR-LCD1500-ITX-7 and their respective page number.

  • Page 22: Connector Locations On The Tr-Lcd1500-Itx-7

    Connector Locations on the TR-LCD1500-ITX-7 TR-LCD1500-ITX-7 User Manual...

  • Page 23: Front Panel Connector

     ATX Power ON/OFF Button This 2-pin connector acts as the “Power Supply On/Off Switch” on the TR-LCD1500-ITX-7 main board. When pressed the, switch will force the Main board to power on. When pressed again, it will force the main board to power off.

  • Page 24: Backlight Connector

    KEYLOCK Pin # Signal Name KEYLOCK BACKLIGHT Connector Pin # Signal Name +12V Brightness ON/OFF IRDA Connector This connector is used for an IRDA connector for wireless communication. IrDA Pin # Signal Name IR-TX IR-RX TR-LCD1500-ITX-7 User Manual...

  • Page 25: Ide Connectors

    Host data 0 Host data 15 Ground Ground Host IOW Ground Host IOR Ground IOCHRDY Host PU 0 DACK Ground IRQ14 No connect Address 1 P66DET Address 0 Address 2 Chip select 1 Chip select 3 Activity LED TR-LCD1500-ITX-7 User Manual...

  • Page 26: Com1 Serial Port

    COM1 Serial Port COM1, a 9-pin D-Sub male connector, is the onboard COM1 serial port of the TR-LCD1500-ITX-7. The following table shows its pin assignments. Pin # Signal Name DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready...

  • Page 27: Com3, Com4, Com5,Com6 Serial Ports

    COM3, COM4, COM5,COM6 Serial Ports COM3, COM4, COM5, COM6 a 10-pin header connector, is the onboard COM3, COM4, COM5, COM6 serial port of the TR-LCD1500-ITX-7. The following table shows its pin assignments. Pin # RS232 Mode Signal Name DCD, Data carrier detect...

  • Page 28: Lpt Port

    The LPT parallel port is a standard DSUB 25-pins Female connector. It can be configured as EPP or ECP or SPP mode. Signal Name Pin # Pin # Signal Name Strobe AUTOFD DATA0 ERROR DATA1 INIT SLIN DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 BUSY SLCT TR-LCD1500-ITX-7 User Manual...

  • Page 29: Ps/2 Keyboard & Mouse Connector

    Keyboard/Mouse data Keyboard/Mouse clock PS2KBMS Connector The following table describes the pin assignment of PS/2 Keyboard and Mouse connector with 6-pins wafer for internal or external access. Pin # Signal Name RKBCLK RKBDAT RMSCLK RMSDAT RKBVCC KBGND TR-LCD1500-ITX-7 User Manual...

  • Page 30: Vga Connector

    N.C. N.C. DDC_DATA HSYNC VSYNC DDC_CLK VGA1 Connector INT_VGA is for internal Video A/D board connection. The pin out is listed as below: Signal Name Pin # Pin # Signal Name GREEN BLUE HSYNC DDC_DATA VSYNC DDC_CLK TR-LCD1500-ITX-7 User Manual...

  • Page 31: Vga2 Connector

    It needs to be +12V input from AC/DC adapter within 5% tolerance. Users should calculate the total system power required and use sufficient rating adapter. Signal Name Pin # Pin # Signal Name +12V +12V TR-LCD1500-ITX-7 User Manual...

  • Page 32: Dcin2 Power Connector

    FAN1 Power Connector This is a 3-pin header for the system fan. Pin # Signal Name Ground +12V SYSPWM FAN2 Power Connector This is a 3-pin header for the system fan. Pin # Signal Name Ground +12V SYSPWM TR-LCD1500-ITX-7 User Manual...

  • Page 33: Usb12 Usb34 Connectors

    USB interface. Also make sure your OS supports USB controller. If you‟re OS does not support USB controller, please contact OS vendor for possible patch or driver upgrade. For more information please contact your OS or device(s) vendors. TR-LCD1500-ITX-7 User Manual...

  • Page 34: Lan-Gbe Connectors

    TX/RX activity. The Orange/Green Dual color LED on the left-hand side indicates the operation mode, i.e. 10Base-T, 100Base-T or 1000Base-T. LNK/ACT STATUS YELLOW Link Disconnected FLASH Packets TX/RX SPEED MODE ORANGE 1000 Mbps GREEN 100 Mbps 10 Mbps TR-LCD1500-ITX-7 User Manual...

  • Page 35: Audio Connectors

    Line Out jack, microphone to MIC In jack. Audio1Pin Headers Signal Name Signal Name MIC1-IN-L MIC1-IN-R LINEOUT-L LINE-IN-L LINEOUT-R LINE-IN-R Audio 2 Pin Headers Signal Signal Name Name SPDIF_IN_R SPDIF_IN_ SPDIF_OUT SPDIF_OUT _RCA _OPT SURR_L SURR_R CENT TR-LCD1500-ITX-7 User Manual...

  • Page 36: Sata1, Sata2, Sata3 Connectors

    DIO Pin Header DIO port supports 8 digital I/O bits. Each bit can be configured as Input or output individually. All bits are 5V tolerant. Signal Name Signal Name DIO_0 DIO_4 DIO_1 DIO_5 DIO_2 DIO_6 DIO_3 DIO_7 TR-LCD1500-ITX-7 User Manual...

  • Page 37: Lvds Connector

    Signal Name Pin # Pin # Signal Name +12V +12V LCDVDD 5V/3.3V LCDVDD 5V/3.3V BCKLITE_ON BRIGHTNES LVDS_GND LVDS_GND CHA_TX0+ CHA_TX0- LVDS_GND CHA_TX1+ CHA_TX1- LVDS_GND CHA_TX2+ CHA_TX2- LVDS_GND CHA_TXC+ CHA_TXC- LVDS_GND CHA_TX3+ CHA_TX3- TR-LCD1500-ITX-7 User Manual...

  • Page 38: Cf-Ii Connector

    Signal Name PDD3 PDD4 PDD5 PDD6 PDD7 PCS1- PDA2 PDA1 PDA0 PDD0 PDD1 PDD2 N.C. N.C. N.C. PDD11 PDD12 PDD13 PDD14 PDD15 PCS3- N.C. PDIOR- PDIOW- IRQ14 MST#_SLV N.C. PST1- PIORDY PDDREQ PDDACK- CF_LED- N.C. PDD8 PDD9 PDD10 TR-LCD1500-ITX-7 User Manual...
  • Page 39 Power Managment Setup ........71 PnP/PCI Configurations ........... 73 PC Health Status ............ 77 Load Fail-Safe Defaults ........... 79 Load Optimized Defaults ......... 79 Set Supervisor/User Password ......... 80 Save & Exit Setup ..........82 Exit Without Saving ..........82 TR-LCD1500-ITX-7 User Manual...
  • Page 40 RAM so that it retains the Setup information when the power is turned off. The AwardBIOS™ installed in TR-LCD1500-ITX-7 is a custom version of an industry standard BIOS. This means that it supports Intel Core 2 Duo in a standard IBM-AT compatible input/output system.
  • Page 41 If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to... PRESS F1 TO CONTINUE, DEL TO ENTER SETUP TR-LCD1500-ITX-7 User Manual...
  • Page 42 General help on Setup navigation keys F5 key Load previous values from CMOS F6 key Load the fail-safe defaults from BIOS default table F7 key Load the optimized defaults F10 key Save all the CMOS changes and exit TR-LCD1500-ITX-7 User Manual...
  • Page 43 To this end, we strongly recommend that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and TR-LCD1500-ITX-7 manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override.

  • Page 44: Main Menu

    Setup Items The main menu includes the following main setup categories. Standard CMOS Features Use this menu for basic system configuration.  Advanced BIOS Features Use this menu to set the Advanced Features available on your system. TR-LCD1500-ITX-7 User Manual...
  • Page 45  Set Supervisor/ User Password Use this menu to set User and Supervisor Passwords.  Save & Exit Setup Save CMOS value changes to CMOS and exit setup. TR-LCD1500-ITX-7 User Manual...
  • Page 46  Exit Without Saving Abandon all CMOS value changes and exit setup. TR-LCD1500-ITX-7 User Manual...

  • Page 47: Standard Cmos Features

    Video [EGA/VGA] Halt On [All , But Disk/Key] Base Memory 639K Extend Memory 1037312K Total Memory 1038336K ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 2) TR-LCD1500-ITX-7 User Manual...
  • Page 48 All, but Disk/Key Base Memory Displays the amount of conventional memory detected during boot up Extended Memory Displays the amount of extended memory detected during boot up Total Memory Displays the total memory available in the system TR-LCD1500-ITX-7 User Manual...
  • Page 49 To auto-detect the HDD‟s size, head…on this Capacity 0 MB channel Cylinder Head Precomp Landing Zone Sector ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 3) TR-LCD1500-ITX-7 User Manual...
  • Page 50 Min = 0 **** Warning: Setting a Max = value of 65535 means no 65535 hard disk Landing zone Min = 0 **** Max = 65535 Sector Min = 0 Number of sectors per track Max = 255 TR-LCD1500-ITX-7 User Manual...
  • Page 51 The system boot will not be halted for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not be halted for a key- board or disk error; it will stop for all others. TR-LCD1500-ITX-7 User Manual...

  • Page 52: Advanced Bios Features

    Boot UP NumLock Status [On] Security Option [Setup] x APIC Mode Enabled MPS Version Control For OS [1.4] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 4) TR-LCD1500-ITX-7 User Manual...
  • Page 53 Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 6) Bootable Add-in Cards This is for setting the priority of the hard disk boot order when the “Hard Disk” option is selected in the “[First/Second/Third] Boot Device “menu item. TR-LCD1500-ITX-7 User Manual...
  • Page 54 The Choice: Floppy, LS120, Hard-Disk, ZIP100, CDROM, Disabled, USB-FDD, USB-ZIP, USB-CDROM, Legacy LAN. Item Default First Boot Device USB Device Second Boot Device Hard Disk Third Boot Device CDROM TR-LCD1500-ITX-7 User Manual...
  • Page 55 Main Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely. TR-LCD1500-ITX-7 User Manual...
  • Page 56 The choice: Enabled (default), Disabled. MPS Version Control For OS The BIOS supports version 1.1 and 1.4 of the Intel multiprocessor specification. Select version supported by the operation system running on this computer. The choice: 1.1, 1.4 (default). TR-LCD1500-ITX-7 User Manual...

  • Page 57: Advanced Chipset Features

    The choice: Manual, By SPD (default). If DRAM Timing Selectable is [Manual], can choice these Items: CAS Latency Time ► Dram RAS# to CAS# Delay ► DRAM RAS# Precharge ► Precharge dealy (tRAS) ► System Memory Frequency ► TR-LCD1500-ITX-7 User Manual...
  • Page 58 BIOS ROM at F0000h-FFFFFh, which is able to improve the system performance. However, any programs that attempts to write to this memory block will cause conflicts and result in system errors. The choice: Enabled (default), Disabled. TR-LCD1500-ITX-7 User Manual...
  • Page 59 This field is used to select the type of display to use when the system boots. The choice: Auto CRT+LFP EFP+LFP (default) Panel Number The choice: 1,2,3 (default),4,5,6,7,8,9,10,11,12,13,14,15,16. Lan1 Chip Control The choice: Enabled (default), Disabled. Lan2 Chip Control The choice: Enabled (default), Disabled. TR-LCD1500-ITX-7 User Manual...

  • Page 60: Integrated Peripherals

    [4E8] Serial Port 6 Use IRQ [IRQ7] Watch Dog Timer Select [Disabled] ►USB Device Setting [Press Enter] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 8) TR-LCD1500-ITX-7 User Manual...
  • Page 61 Enabled for automatic detection of the optimal number of block mode (most new drives do), select. Enabled for automatic detection of the optimal number of block read /write per sector where the drive can support. The choice: Enabled (default), Disabled. TR-LCD1500-ITX-7 User Manual...
  • Page 62 CPU perform the complete task by them. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive. TR-LCD1500-ITX-7 User Manual...
  • Page 63 Select disabled if you want to add a different hard drive controller. The choice: Enabled (default), Disabled. IDE Secondary Master/Slave PIO The choice: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4. IDE Secondary Master/Slave UDMA The choice: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4. TR-LCD1500-ITX-7 User Manual...
  • Page 64 Select an address and corresponding interrupt for the first serial ports. The choice: Disable, 3F8/IRQ4 (default), 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto. Onboard Serial Port 2 Select an address and corresponding interrupt for the second serial ports. The choice: Disable, 3F8/IRQ4, 2F8/IRQ3 (default), 3E8/IRQ4, 2E8/IRQ3, Auto. TR-LCD1500-ITX-7 User Manual...
  • Page 65 UART Mode Select Hi, Hi ……[ Hi, Lo ……[ 2 ] Lo, Hi …..[ Lo, Lo …..[ : Move Enter: Accept ESC: Abort IR Transmission Delay The choice: Disabled, Enabled (default). UR2 Duplex Mode The choice: Full, Half (default). TR-LCD1500-ITX-7 User Manual...
  • Page 66 [378/IRQ7] Parallel Port Mode [SPP] x EPP Mode Select EPP1.7 x ECP Mode Use DMA PWRON After PWR-Fail [Off] Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit ↑↓← → ：Move F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default TR-LCD1500-ITX-7 User Manual...
  • Page 67 PWRON After PWR-Fail [Off] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default EPP Mode Select Select EPP port type 1.7 or 1.9. The choice: EPP1.7 (default), EPP1.9. TR-LCD1500-ITX-7 User Manual...
  • Page 68 If your system supports ECP parallel port mode and you have the port set to use ECP, you must use this setting to assign a DMA channel for use by the port. The choice: 1, 3 (default). TR-LCD1500-ITX-7 User Manual...
  • Page 69 ECP, you must use this setting to assign a DMA channel for use by the port. The choice: DMA1, DMA3 (default). PWRON After PWR-Fail When power fails, you can select power ON or Off or Former status. The choice: Off (default), On, Former-Sts. TR-LCD1500-ITX-7 User Manual...
  • Page 70 This is used to select an IRQ for the onboard serial port 5. The choice: IRQ3, IRQ4, IRQ5, IRQ6, IRQ7 (default), IRQ10, IRQ11. Onboard Serial Port 6 This is used to select an I/O address for the onboard serial port 6. The choice: Disabled, 4F8, 4E8 (default). TR-LCD1500-ITX-7 User Manual...
  • Page 71 The choice: Disabled, Enable (default). USB Operation Mode The choice: Full/Low Speed, High Speed (default). USB Keyboard Function The choice: Disabled, Enable (default). USB Mouse Function The choice: Disabled, Enable (default). USB Storage Function The choice: Disabled, Enable (default). TR-LCD1500-ITX-7 User Manual...

  • Page 72: Power Management Setup

    PCI Express PM Function PCI Express PME [Enabled] Item Help Menu Level ► ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default PCI Express PME The choice: Enabled (default), Disabled. TR-LCD1500-ITX-7 User Manual...
  • Page 73 4 sec. Wake-Up by PCI card Enable/Disable PCI PME wakes up function. The choice: Enabled (default), Disabled. Power On by Ring Enable/Disable Power On By Ring function. The choice: Enabled, Disabled (default). TR-LCD1500-ITX-7 User Manual...

  • Page 74: Pnp/Pci Configuration

    ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default Init Display First This item allows you to choose which one to activate first, PCI Slot or onchip VGA. The choice: PCI Slot (default), Onboard, PCIEx. TR-LCD1500-ITX-7 User Manual...
  • Page 75 [Auto] INT Pin 7 Assignment [Auto] INT Pin 8 Assignment [Auto] **PCI Express relative items** Maximum Payload Size [128] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default TR-LCD1500-ITX-7 User Manual...
  • Page 76 ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default IRQ-3,4,5,7,9,10,11,12,14,15 assigned to IRQ-3 assigned to PCI Device ….. [ Reserved ….. [ : Move Enter: Accept ESC:Abort The choice: PCI Device (default), Reserved. TR-LCD1500-ITX-7 User Manual...
  • Page 77 This BIOS feature determines if your graphics card should allow VGA palette snooping by a fixed function display card. The choice: Enabled, Disabled (default). INT Pin 1/2/3/4/5/6/7/8 Assignment The choice: Auto (default),3,4,5,7,9,10,11,12,14,15. Maximum Payload Size The choice: 128 (default). TR-LCD1500-ITX-7 User Manual...

  • Page 78: Pc Health Status

    F6:Fail-Safe Defaults F7:Optimized Default CPU Warning Temperature Select the CPU over-heated warning temperature. The choice: Disabled (default), 50 C/122F, 53C/127F, 56C/133F, 60C/140F, 63C/145F, 66C/151F, 70C/158F. Current System Temp Show System Temperature. Current CPU1/2 Temperature Shows Board Temperature TR-LCD1500-ITX-7 User Manual...
  • Page 79 CPU FAN Speed Shows speed. CPU Fan CHASSIS Fan Speed Shows CHASSIS speed Shutdown Temperature Select the CPU over-heated shutdown temperature. The choice: Disabled (default), 60 C/140F, 65C/149F, 70C/158F, 75C/167F TR-LCD1500-ITX-7 User Manual...

  • Page 80: Load Fail-Safe Defaults

    Load Optimized Defaults (Y/N)? N ►PnP/PCI Configuration Exit Without Saving ►PC Health Status Esc :Quit ↑↓← → ：Select Item F10:Save & Exit Setup Pressing „Y‟ loads the default values that are factory settings for optimal performance system operations. TR-LCD1500-ITX-7 User Manual...

  • Page 81: Set Supervisor/User Password

    To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely. TR-LCD1500-ITX-7 User Manual...
  • Page 82 BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. TR-LCD1500-ITX-7 User Manual...

  • Page 83: Save & Exit Setup

    Esc :Quit ↑↓← → ：Select Item F10:Save & Exit Setup This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. TR-LCD1500-ITX-7 User Manual...

  • Page 84: Chapter 4 - Appendix

    Appendix AC Power Adapter ..........84 I/O Port Address Map ..........85 Interrupt Request Lines (IRQ) ......... 86 POST Beep ............87 Resistive Touchscreen Option ........88-94 TR-LCD1500-ITX-7 Mechanical Drawings ....95-106 TR-LCD1500-ITX-7 User Manual...

  • Page 85: Ac Power Adapter

    AC Power Adapter Below is the AC power adapter for the TR-LCD1500-ITX-7 industrial computer. A 6' HP style power cord is included. Other voltages that are available for this system are: 12V, 24V, 48V, 125V and 250V DC. TR-LCD1500-ITX-7 User Manual...

  • Page 86: I/O Port Address Map

    Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1) TR-LCD1500-ITX-7 User Manual...

  • Page 87: Interrupt Request Lines (Irq)

    Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Software Redirected to Int 0Ah IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE TR-LCD1500-ITX-7 User Manual...

  • Page 88: Post Beep

    BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by two short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly. TR-LCD1500-ITX-7 User Manual...

  • Page 89: Resistive Touchscreen Option

    When the New Hardware Found message comes up, choose Cancel. Run the Setup.exe program from the driver CD. Please note that the touch screen controller in the TR-LCD1500-ITX-7 is USB and follow the prompts accordingly. Windows will copy the files to your hard drive and setup will be complete. (Windows XP will give a warning message about the TouchKit Controller certification, press Continue anyway.)
  • Page 90 The system will not make any sound until finger leaves the touch panel. Frequency Sound frequency, drag the cursor from left to right = low to high. Duration Sound duration, drag the cursor from left to right = short to long. TR-LCD1500-ITX-7 User Manual...
  • Page 91 [Standby] to enter standby mode that saves power consumption. [Shutdown] to turn off PC. [Reboot] to restart PC. [Cancel] to escape from the Shutdown utility dialog. [Exit] to disable the Shutdown utility. Please note that Windows NT does not support this function. TR-LCD1500-ITX-7 User Manual...
  • Page 92 Cursor visibility function allows the cursor to be hidden. Go to Start / Control Panel / Mouse / Pointers / Scheme, and choose TouchKit Hide Cursor. Press [Apply] to make the setting change, and press [OK] to escape the property page. Double Click Adjustment TR-LCD1500-ITX-7 User Manual...
  • Page 93 Right If you set the Edge to <Smaller>, TouchKit will reduce the vertical position of the right edge. If you set the Edge to <Larger>, TouchKit will extend the vertical position of the right edge. TR-LCD1500-ITX-7 User Manual...
  • Page 94 10%, and cursor will be moved 10 pixels from the X and Y Axis to the left and bottom. Choose the Default button to restore the default settings. 4. MONITORS: Multiple Monitors, Split Monitor Multiple Monitors To configure the mapping relationship between the monitors and the touch panels, select the monitor page as below. TR-LCD1500-ITX-7 User Manual...
  • Page 95 Left: 0, Right: 0, Top: 0 and Bottom: 0. 5. ABOUT: General information about TouchKit. Uninstalling TouchKit To uninstall, use the TouchKit/Uninstall from the Programs menu on the Start button. TR-LCD1500-ITX-7 User Manual...
