RAB Lighting SHARK-2FT Installation Instructions

INSTRUCTIONS
SHARK INSTALLATION
®
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
firmly. Apply weatherproof silicone sealant around the edge of the ceiling mounting box and/or junction box. This is
especially important with an uneven ceiling surface. Silicone all plugs and unused conduit entries.
SURFACE MOUNTING
The fixture is suitable for outdoor applications in wet locations
either ceiling or wall mounted.
1. Use appropriate mounting screws (not supplied) to secure the
Surface Mounting Brackets (2 included) to Mounting Surface.
Recommended Surface Mounting Brackets distance center to
center is 14-5/8" (for SHARK2) and 37" (for SHARK4).
NOTE: Mount Surface Mounting Brackets (2) symmetrical
about the center of the fixture and aligned with each other.
2. Unlatch the Lens and Tray Assembly from Housing.
Pre-installed Tether Cables (2) will prevent Lens and Tray
Assembly from falling down as shown in Fig. 1.
3. Feed supply wires through one of the Conduit Plugs (3) to
make electrical splices. Cord-grips (2) are provided and can be
used based on the application.
4. Use appropriate UL approved wire connectors as required by
code to complete wiring with supply wires. Be careful not to
pinch the wires.
WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sharp objects.
5. Secure Lens and Tray Assembly to Housing by clamping Latch
down. Be careful not to pinch the wires. Check that the Gasket
is fully seated.
6. Push Housing into Surface Mounting Brackets (2) as shown in
Fig. 2. Ensure that the Housing is secure to Surface Mounting
Brackets (2).
7. Use silicone or Teflon tape on all Conduit Plugs and on the
threads of all conduit entry points. If outdoor surface is irregular,
use caulk to seal any gaps around Housing.

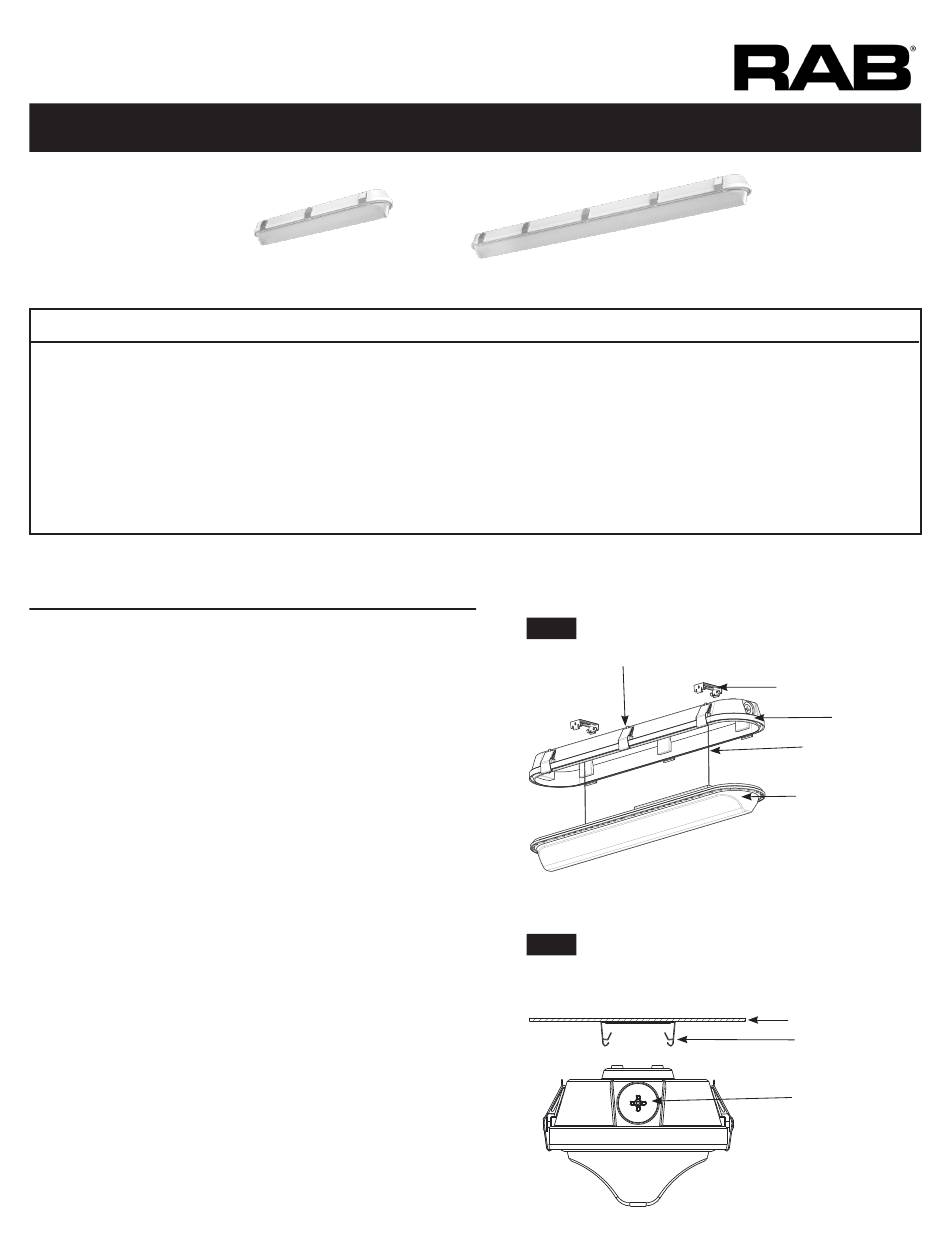

SHARK - 2FT SHARK - 4FT
Fig: 1
Latch
Fig: 2
Surface Mounting Bracket (2)
Housing
Tether Cable
Lens and Tray Assembly
Mounting Surface
Surface Mounting Bracket
Conduit Plug (3)
