ACL800FL-CONV-W RS485 to TCP/IP
Converter Installation Sheet
Description
The ACL800FL-CONV-W is highly integrated serial to ethernet
converter that enables you to connect any UTC biometric
reader over a local LAN network or over the Internet to your
computer. Configuration of the IP address, dynamic DNS,
TCP/UDP ports can be done from browser or from the ACL800
BioManager software. The software is capable to automatically
search IP addresses of the converters, as well as the serial
numbers of the biometric readers.
The device is already preset for use with the biometric readers.
Wiring

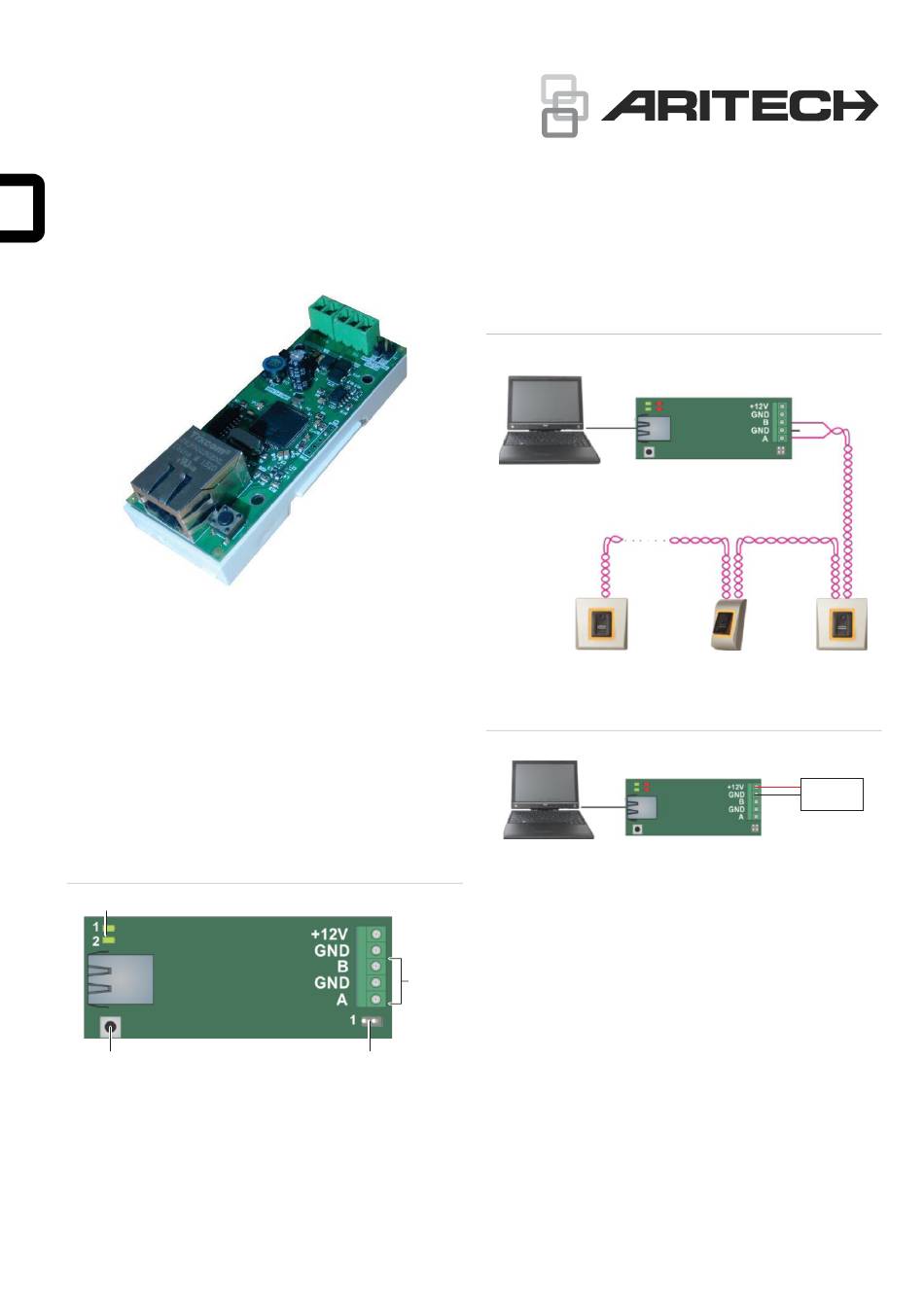

Figure 1: PCB
LEDs
Reset
© 2022 Carrier
RS485
Termination resistor
120 Ω
1 / 4
Figure 2: Connections
RS485ACL800
Biomanager
ACL800FL-CONV-W
TCP/IP
1 km max. / 31 units
Figure 3: Power supply connection
PC
ACL800FL-CONV-W
TCP/IP
Changing the IP address
The default IP of the converter is: 192.168.1.100. If you like to
change the IP address, follow the instructions bellow.
1.
Connect the converter ACL800FL-CONV-W directly to the
PC.
2.
Change the IP address of the PC to the same range as
the converter's IP address (192.168.1.XXX)
3.
Open Browser or ACL800 BioManager (as explained in
"Configuration" on page 2) and change the IP to the
desired one.
4.
Save.
P/N 1073494-EN • REV B • ISS 07JUL22
RS485
Biometric readers
Power
+
−
supply
Advertisement
Summary of Contents for Aritech ACL800FL-CONV-W RS485
- Page 1 ACL800FL-CONV-W RS485 to TCP/IP Converter Installation Sheet Figure 2: Connections RS485ACL800 Biomanager ACL800FL-CONV-W TCP/IP 1 km max. / 31 units RS485 Description The ACL800FL-CONV-W is highly integrated serial to ethernet converter that enables you to connect any UTC biometric Biometric readers reader over a local LAN network or over the Internet to your computer.
- Page 2 Figure 6: Search portals Configuration From Web Browser Write the IP as URL (default http://192.168.1 100). Write the username and password (default Username: admin; Password: 00000000). Figure 4: Authentication and settings Reset IP to defaults Press and hold the tact switch for about 5 seconds until the second green LED turns on.
- Page 3 32 x 86 mm, 4 fixing holes Ø3 mm PCB size Contact information Housing DIN Rail or Wall mount, plastic, size 2 unit firesecurityproducts.com or www.aritech.com 0 to +40°C, noncondensing Operating temperature Dimension 90 x 37 x 33 mm Regulatory information...
- Page 4 P/N 1073494-EN • REV B • ISS 07JUL22 4 / 4...
