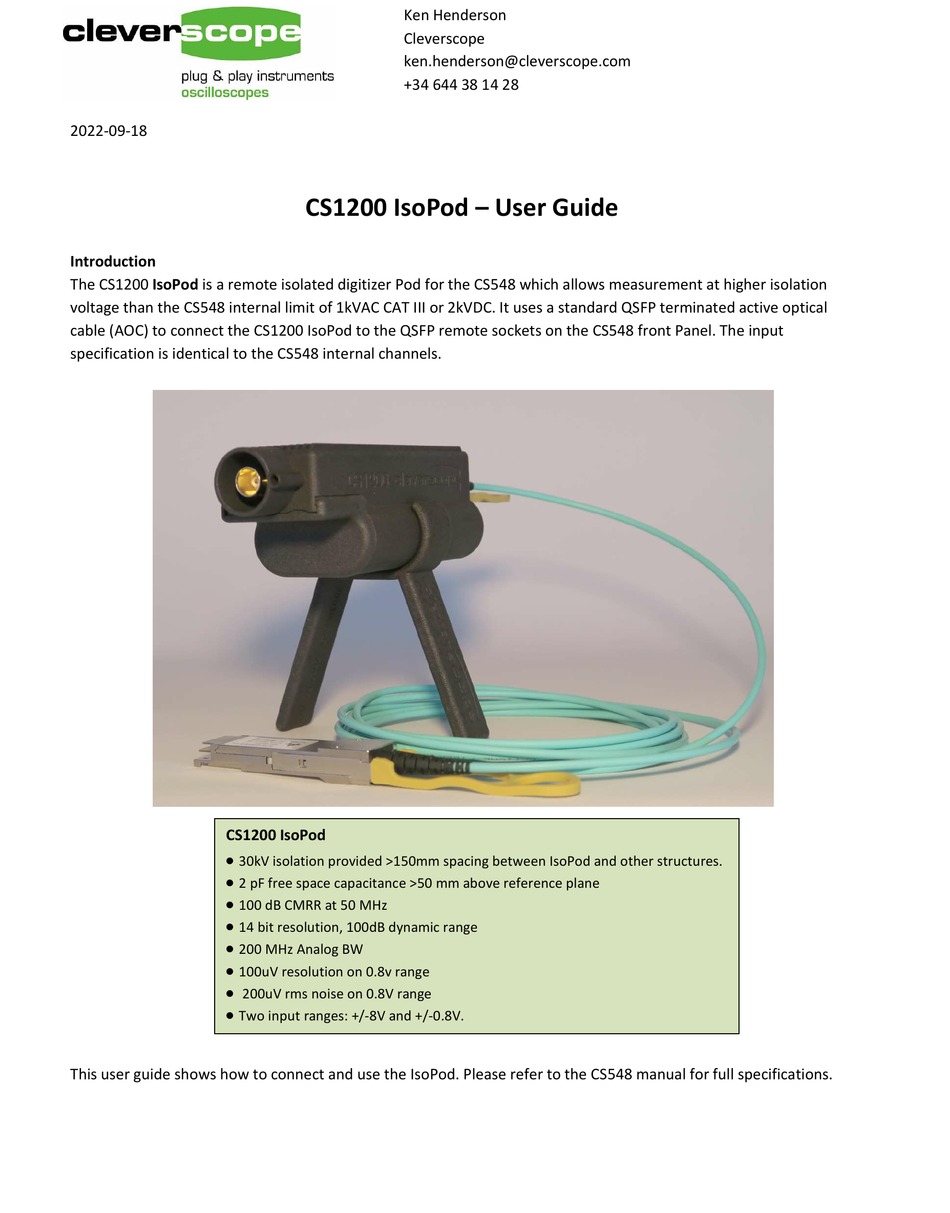

Introduction
The CS1200 IsoPod is a remote isolated digitizer Pod for the CS548 which allows measurement at higher isolation
voltage than the CS548 internal limit of 1kVAC CAT III or 2kVDC. It uses a standard QSFP terminated active optical
cable (AOC) to connect the CS1200 IsoPod to the QSFP remote sockets on the CS548 front Panel. The input
specification is identical to the CS548 internal channels.
CS1200 IsoPod
This user guide shows how to connect and use the IsoPod. Please refer to the CS548 manual for full specifications.
Ken Henderson
Cleverscope
ken.henderson@cleverscope.com
+34 644 38 14 28
CS1200 IsoPod – User Guide
30kV isolation provided >150mm spacing between IsoPod and other structures.
2 pF free space capacitance >50 mm above reference plane
100 dB CMRR at 50 MHz
14 bit resolution, 100dB dynamic range
200 MHz Analog BW
100uV resolution on 0.8v range
200uV rms noise on 0.8V range
Two input ranges: +/-8V and +/-0.8V.
Advertisement
Table of Contents
Related Manuals for Cleverscope CS1200 IsoPod
Summary of Contents for Cleverscope CS1200 IsoPod
- Page 1 CS548 internal limit of 1kVAC CAT III or 2kVDC. It uses a standard QSFP terminated active optical cable (AOC) to connect the CS1200 IsoPod to the QSFP remote sockets on the CS548 front Panel. The input specification is identical to the CS548 internal channels.
- Page 2 Batteries The IsoPod uses 2x ‘21700’ size Li-Ion cells. These are normally delivered in a semi discharged state so please fully charge before first use. Note: The demo system is supplied with 4x 21700 5000mAh cells and 8-cell Li-Ion charger with USB type C adaptor. Once charged insert 2 cells into IsoPod paying attention to the polarity as shown on the enclosure:...
- Page 3 Then slide battery cover into place: To open the battery cover press the button and pull on cover: The supplied 5000mAh cells will run the IsoPod for approx 10 hours. At present we have not implemented battery monitoring in the application so keep in mind the amount of time the IsoPod has been running. If the AOC is removed the IsoPod it will go into a low power state extending battery life.
- Page 4 Fibre Optic Cable The demo is supplied with a 3m long QSFP Active Optical Cable (AOC) but other lengths are available (5, 10, 15, 20, 25, 30 & 50m). Insert the AOC into the CS548 and IsoPod with the label facing upwards: Plug in the AOC metal QFSP with the pull tab under the fiber.
- Page 5 Probing The IsoPod is supplied with a stand placing it 65mm above the work surface. This will reduce the probe free space capacitance and provide some isolation from ground planes. It is also supplied with a short x10 oscilloscope probe fitted with a common mode choke.
