REVENTON VERTIC User Manual

Intelligent control panel VERTIC
User Guide
Welcome
Thank you for buying the product! Your new controller will
provide years of reliable service. Using this digital device
will provide more uniform comfort in your home through
the seasons and more automatic work of the heat recovery
unit Vertic. Please read this manual for complete
instructions on installing and operating your device. If you
require further assistance, please feel free to contact
directly with Reventon Group Sp. z o.o.
In the box you will find
- Intelligent control panel VERTIC
- user guide
Service
We offer the warranty of 24 months from the sales day.
Technical data
Power supply: 230 ~ 240 VAC, 50 ~ 60 Hz
Shell material: PC (fireproof) and acrylic panel
Dimensions: 85 x 85 x 15 mm
RS485/Modbus RTU communication
About device
The intelligent control panel VERTIC allows to remotely
control the operation of heat recovery unit VERTIC. It
has a liquid crystal LCD screen with touch buttons. The
contemporary design of the device makes it look
aesthetically pleasing in any interior. Control panel
allows to modify all parameters of the unit and
equipment.
Features of the controller
 Modern design
 Temperature display

Temperature control

Weekly timer

4 speed control

One-key fan boost
 Manual/auto operation
 Filter replacement reminder

Anti-frost

Humidity control

Humidity display

CO value display (if connected)
2
 Time and date display
 Electric heating control function

Power consumption statistics

RS485/Modbus function

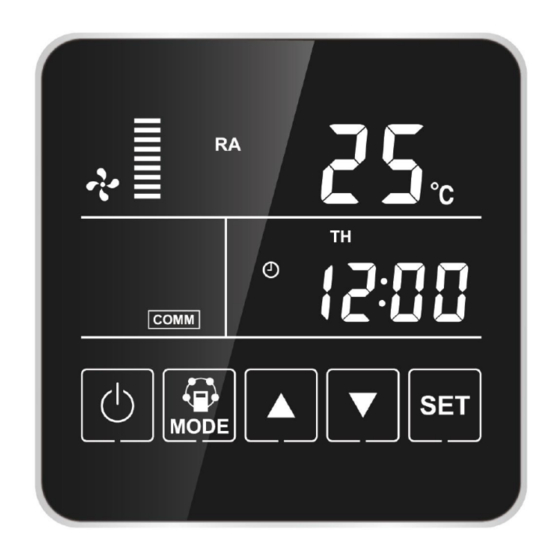

Home screen quick reference
1 Power 13
2 Communication 14
3 Mode 15
4 Up button 16
5 Down Button 17 Setting Temperature
6 SET Button 18 Temperature Mode
7 PM2.5 Symbol 19 Temperature Display
8 CO2 Symbol 20
9 Heating 21 Child Safety Lock
10 Pre-Heating 22
11 Bypass On/Off 23
12 Defrost On/Off 24 Weekly Time On/Off
25 Humidity Symbol
Fan Running
Repair
Fan Speed
Sleep Mode
Filter Alarm
Week
Clock
