STAR INDUSTRIES 1370B Operator's Manual

4101 Garland Drive, Fort Worth, TX 76117
Forklift

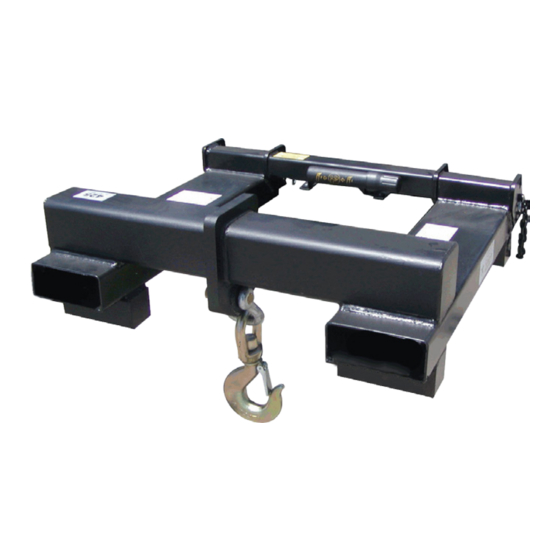

Universal Lift Hook
Operator's Manual
for Model
BEFORE USE, READ AND UNDERSTAND THE
COMPLETE OPERATOR'S MANUAL.
If you need clarification or any additional information call
your Star dealer or call Star Industries @ 1-800-541-1797
during normal business hours.

SPECIFICATIONS

Model Load Capacity
1370B
1371B
Overall Dimensions – 42" wide x 12" High x 28½" deep
Fork Pocket Spread - 34" Center to Center
Accepts forks up to 7" wide x 3" thick
Engineer Approved:
The Star Industries Model 1370B and 1371B Universal-Fit Lift
Hooks are designed for use on telehandlers extendible reach
forklifts) and straight mast forklifts as well. Their design has been
reviewed and carries an engineer's stamp of approval to meet a
3 to 1 or better factor of safety.
The design of the attachment positions the swivel hook at the
standard 24" load center typically found on most forklifts up to
30,000 lb capacity. Because the lifting point is located at the 24"
load center, the forklift's standard load chart will normally apply.
It is only necessary to include the weight of the attachment itself
and rigging along with the weight of the load. A separate load
chart or de-rating of the forklift should not be required.
Be aware that the rated capacity of the Lift Hook itself does not
reflect the capacity of the telehandler/forklift. The total load must
not exceed the capacity shown on the telehandler/ forklift load
chart which will vary with make and model as well as fork and/
or boom position.
DANGER - DO NOT USE WITHOUT INSTALLING
RETAINING PINS behind the heel of each fork and
securing with hair pins or cotter pins
Safety chain(s) must also be used. Wrap chain
around a strong part of the fork carriage and secure
with locking grab hook.
Phone 817.485.6073 Fax 817.428.6008
www.starindustries.com
1370B & 1371B
Empty Weight
10,000 lbs. 271 lbs.
12,000 lbs. 277 lbs.
