Summary of Contents for Förster-Technik ColostroMAT

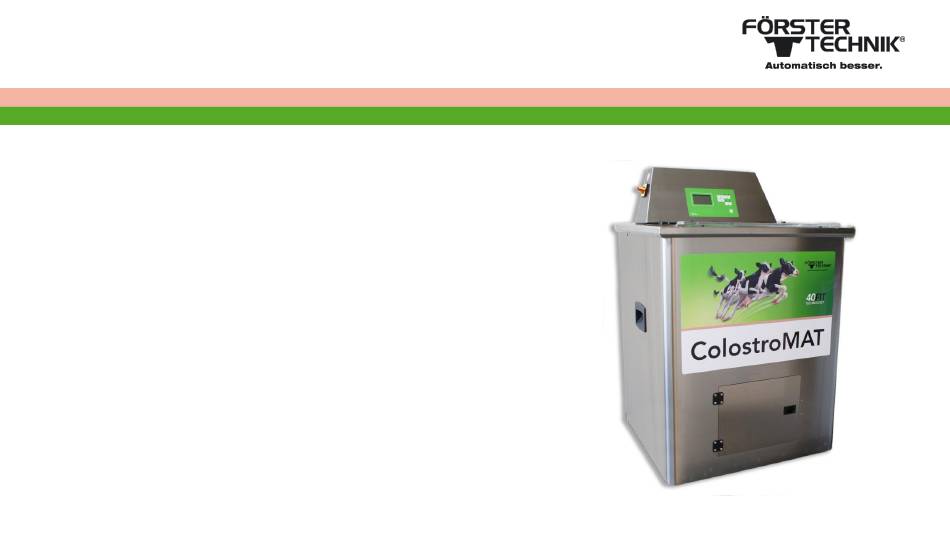

- Page 1 ColostroMAT Förster-Technik GmbH 40FIT Schulung KW 20/2016 Jürgen Plesse...
- Page 2 Overview ColostroMAT 1 Control unit box 2 Control 3 Lid 4 Water tank 5 ColostroBAG-storage 6 Handle 1 Control unit box 2 Main switch 3 Power connection 4 Service door 5 Cold water supply 6 Warm water connection 7 Water drain...
- Page 3 Overview ColostroMAT 1 Bag holder 2 Bax fixer...
- Page 4 Control / Operating unit ColostroMAT Profile 1 Profile 2 Profile 3 Profile 4 Main menu...
-
Page 5: Display Indicator
Display indicator Example Display indicator main menu: Example Display indicator Profile: 1 Operating mode (main menu) 1 Operating mode (Profile 1) 2 Temperature 2 Temperature 3 Time 3 Time 4 main menu 4 Condition of Profile 1... -
Page 6: Connect Water Supply
Commissioning Installation ColostroMAT ■ Even ground Connect water supply ■ Water hose to cold water 1 Cold water supply ■ Water hose to warm water if needed 2 Warm water supply 3 waste water ■ Drain hose to the outflow and into the gully... - Page 7 Commissioning Connect power plug and turn on via main switch When switching on the first time, select water supply via ■ Cold water supply ■ Warm and cold water supply Set time: ■ Select hours an minutes via...
-
Page 8: Device Mode
Handling Device mode ■ Standby mode: water temperature is kept at 42˚C (disabled by default) ■ Waiting mode: device doesn‘t perform any function ■ Function mode: a profile is running There is a difference made between two operating modi: ■... - Page 9 Operating modi Basic mode: limited changes in the settings possible ■ Mail menu: Drain valve ● ● Start cleaning ● Time...
- Page 10 Operating modi Expert mode: Changes in the setting possible ■ Main menu: Standby settings ● Drain valve ● Temperature unit ● Start cleaning ● Profil settings ● Time ● Factory settings ● ● Diagnosis Informations ● ● Water supply settings ●...
-
Page 11: Operation
Operation Start profile ■ With profile 1 the water bath is heated up and following hold on 60˚C for 60 minutes. After that, it‘s cooled down to 42 ˚C. ■ With profil 2 the water bath is heated up and following hold on 60˚C for 60 minutes. - Page 12 Profile process - Profile 1 Place ColostroBAGs in the bag holder Fix ColostroBAGs Pusch and start profile with Enter...
- Page 13 Profile process - Profile 3 Place ColostroBAGs in the bag holder Fix ColostroBAGs Push ■ Select temperature of the ColostroBAGs Room temperature ● Cooled ● Frozen ● ● only appears if there was something set in the expert mode ■...
- Page 14 Cleaning The cleaning is consisting of the following steps: ■ Pre-rinsing ■ Main rinsing ■ Post-rinsing Procedure of the cleaning Place detergent reservoire in the rotating cage Fill detergent in the reservoire Switch into the cleaning menu Confirm with Enter to start the cleaning. The cleaning starts and all LEDs over the profile buttons blink.
-
Page 15: Set Standby Time
Set standby time Standby time can only be changed in the expert menu. ■ Set standby times are shown ■ Select the desired temperature in the standby via ■ Select start of the standby phase via ■ Select end of the standby phase via ■... - Page 16 Set parameters for profile 1 You can only change the profile parameters in the expert mode ■ ■ Selection of the pasteurisation time via confirm with Enter ■ Selection of the pasteurisation temperature via confirm with Enter ■ Selection of the feeding temperature via confirm with Enter ■...
-
Page 17: Warnings / Error Messages
Warnings / error messages • Lack of water • Drain valve • Heating • Sensor... -
Page 18: Software Update
Software update ■ Turn off the ColostroMAT and remove the power plug ■ Open control unit box ■ Insert SD cart in the provided Slot on the board ■ Insert power plug and switch on the ColostroMAT ■ Wait until the update is performed and confirm with Enter ■... - Page 19 ColostroFIT – the Solution...
- Page 20 Ensure quality Spindle (Colostrometer) or refractometer ■ Min. 50 g IgG/l...
- Page 21 Pasteurization Pasteurization ■ 60 ºC for 60 min ■ Carefully in a water bath ■ Use ColostroBAGs...
- Page 22 Storage At a temperature of 1-2 ºC in the refrigerator can be kept up to 7 days In the freezer (-20 ºC) the colostrum can be kept for up to a year ■ Long-term storage after pasteurization in cases where no colostrum is available from the mother cow “Calf Rearing Guide”...
- Page 23 Rewarm Rewarm to 40 ºC ■ to the optimal feed temperature ■ Use ColostroBAG (1„COLOSTRUM Pasteurizing Guidelines“, Sam Leadley, Calf & Heifer Management Specialist, © Attica Vet. Assoc. 2013)
- Page 24 Feed Feed the calf within 4 hours or sooner after birth ■ 6 hours after birth the absorbtion rate has decreased by half (”Colostrum Feeding Checklist”, Sam Leadley, Calf & Heifer Management Specialist, © Attica Vet. Assoc. 2013) Tube calves only if necessary ■...
- Page 25 ColostroFIT- the solution ColostroMAT ■ pasteurization and heating gentle heating in a water bath ● ■ easy to set up ■ intuitive operation ■ clear structured and safe work flow...
- Page 26 ColostroFIT- the solution ColostroKIT ■ Consumables, to easily and gently fill up ● pasteurize ● ● store defrost ● the colostrum for the new born calf. ■ For Feeding the colostrum to the calf a teat or tube can fast and easy be connected to the ColostroBAG.
- Page 27 ColostroFIT – scope of delivery ColostroMAT ■ ColostroKIT ■ BagFiller ■ Caddy ■ Colostrometer...
- Page 28 ColostroFIT – scope of delivery ColostroKIT ■ 50x ColostroBAGs ■ 3x Tubes ■ 3x Teats ■ 1x TeatFix...
- Page 29 ColostroFIT – scope of delivery ColostroKIT small ■ 10x ColostroBAGs ■ 1x Tubes ■ 1x Teats...
- Page 30 Disclaimer Certain products may not be available in individual countries and products supplied or names may differ from those illustrated. Although the contents of this presentation have been compiled with the greatest possible care, Förster-Technik cannot accept liability for any damage that might arise from errors or omissions in this presentation.
