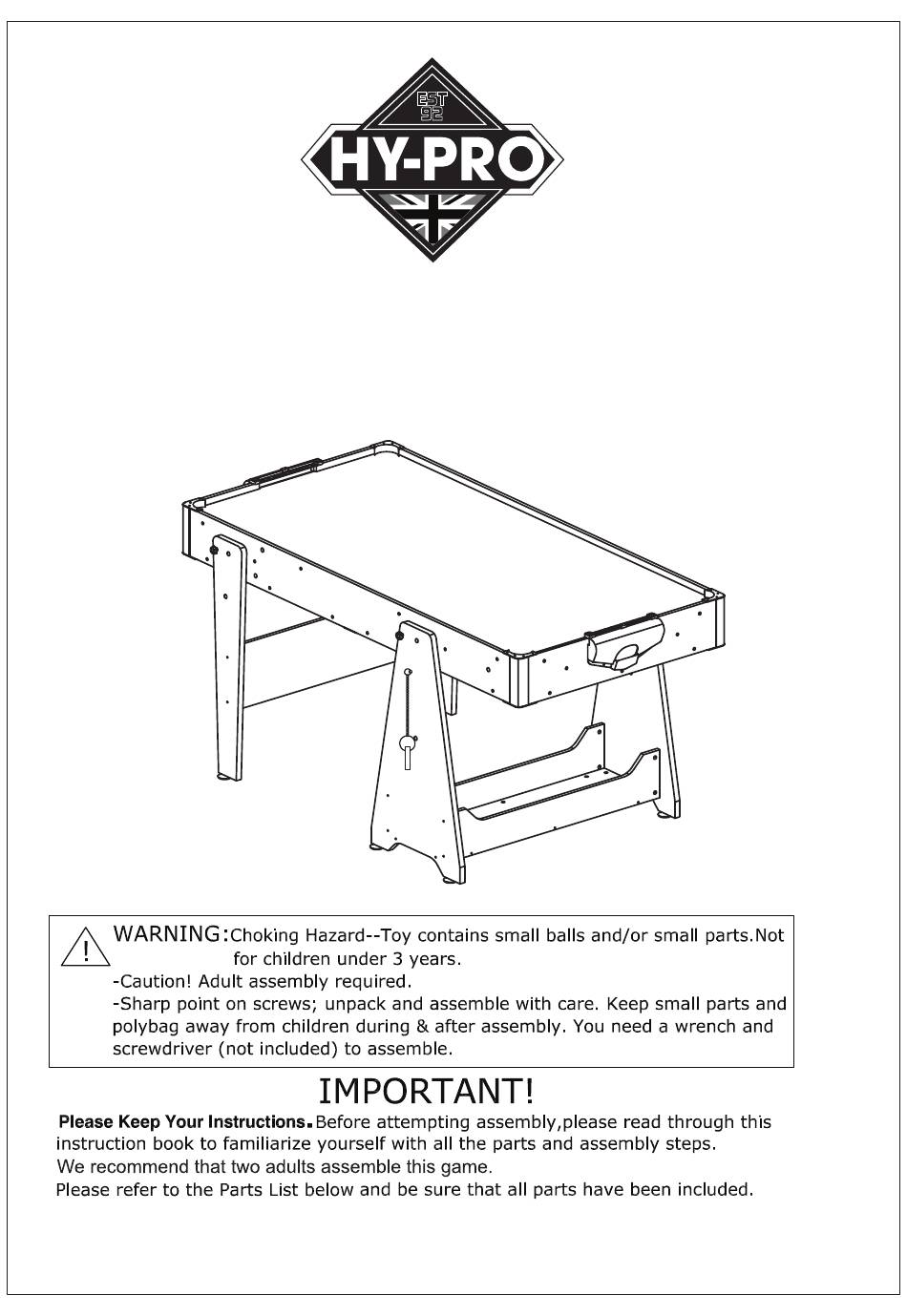

- Page 1 5FT POOL AND AIR HOCKEY TABLE ASSEMBLY INSTRUCTION Item: HP04434...
- Page 2 Table body Main Support Leg-1 Main Support Leg-2 Leg-1 1 pc 1 pcs 1 pcs 1 pcs Leg-2 Accessory Floor Panel Leg end panel Accessory End panel 1 pcs 1 pcs 1 pcs 2 pcs Handle Bolt 45mm Washer 23mm Screw 12mm Bolt 41mm 8 pcs...
- Page 3 Using at least two people carefully place the table body (#1) onto a soft, non staining surface . Using screw (#12) attach the goals (#24) to the table body (#1) ttach main support leg(#2 & #3) along with leg (#4 & #5) to the table body (#1) using bolt and handle bolt (#9 &...
- Page 4 To assemble the accessory tray secure the accessory end panel (#8) to the accessory floor panel (#6) using screw (#13) Once done secure the completed accessory tray to the main support legs using screw (#14) Add leg end panel (#7) to the leg(#4 &...
- Page 5 Using at least two adults carefully turn the table the right way up. To fold the table, please remove all accessories from the playing surface and remove handle bolt (#11) completely With at least two adults carefully fold the table towards its standing position. Once done, insert the handle bolt (#11) and safety pin (#22) into the table body frame locking it into place.
- Page 6 To rotate the table, remove handle bolt (#11) and safety pin (#22).With at least two adults carefully rotate the table body (#1) and rotate the legs over the table. Once done, insert handle bolt (#11) into the main upport leg and leg(#2 #3 #4 #5) Lock the table back into place by securing the handle bolts (#11) into the table once move...
- Page 7 Dire for use of the Power Puck 1. Carefully remove the ba ery compartment cover using a screw driver. 2. Insert ba eries, ensuring correct polarity. 3. Replace and secure cover by ghtening the screw. To charge the Power puck, connect with the ba ery box. Normal charging is around 30-40min.
