Summary of Contents for Stone STAD133WT-15

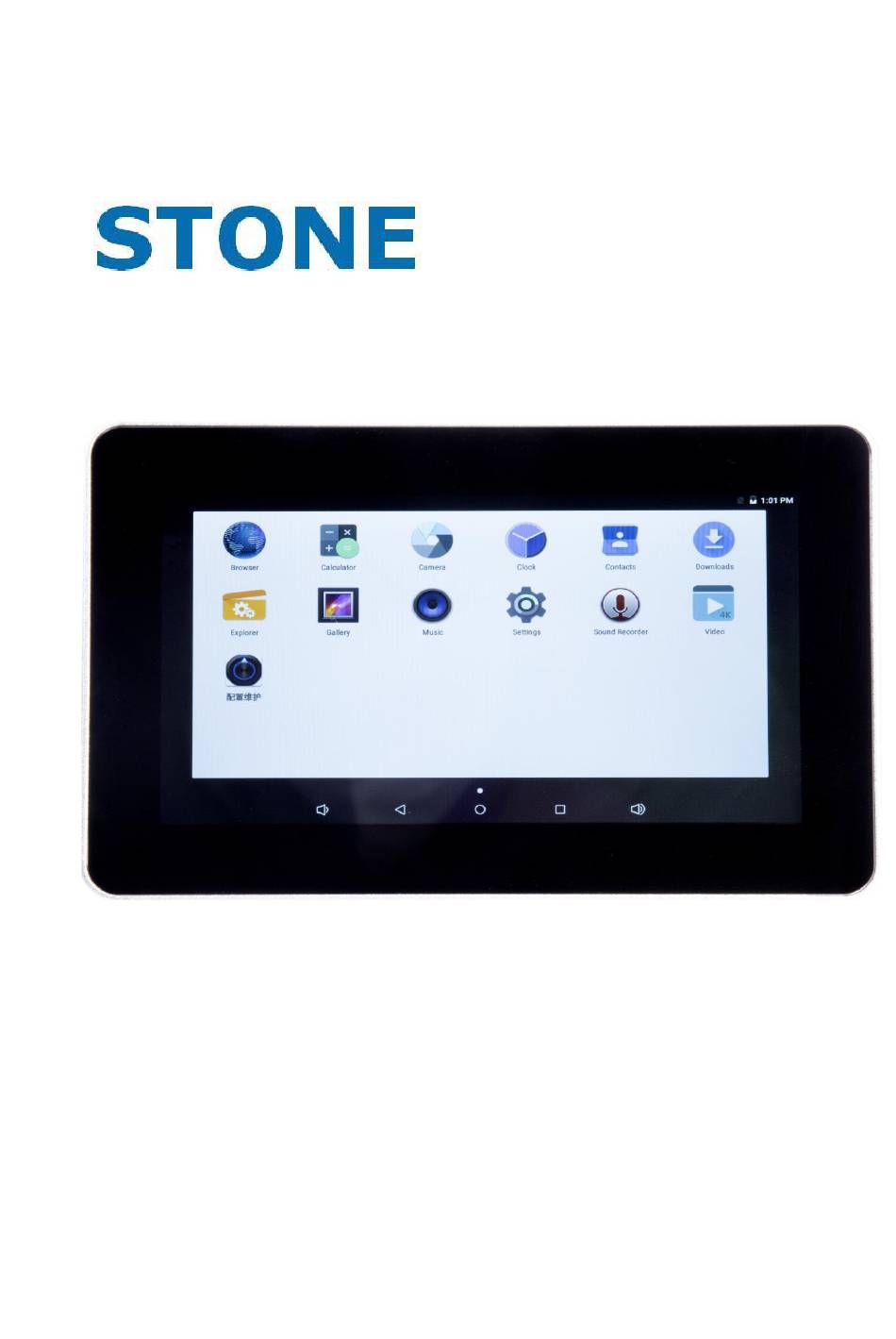

  • Page 1 Android industrial control LCD display Model STAD133WT-15 Equipment Manual...
  • Page 2: Table Of Contents

    All rights reserved by STONE Technologies Contents 1 Android LCD Specification Introduction ............3 1.1 Introduction ..................... 3 1.2 Technical Parameters ................4 2 Interface Description ..................6 2.1 Serial Ports ..................... 6 2.2 USB-HOST Interface ................6 2.3 USB-DEVICE Interface ................7 2.4 GPIO Interface ..................
  • Page 3: Android Lcd Specification Introduction

    All rights reserved by STONE Technologies Android LCD Specification Introduction 1.1 Introduction STAD133WT-15 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.8GHz Quad-core Coretex A17. Recommended power supply is DC 12V/2A. STAD133WT-15 Equipment Manual...
  • Page 4: Technical Parameters

    All rights reserved by STONE Technologies 1.2 Technical Parameters Main Parameters Parameter Description ARM Cortex™-A17 RK3288/Quad-core 1.8Ghz System Android 5.1.1 Rooted 4pcs 512MB,2G DDR3 eMMC EMMC OpenGLES1.1/2.0/3.0 ARM Mali-T764 OPEN VG1.1, OPENCL, Directx11 Display Parameters Parameter Description Interface Resolution 1920x1080...
  • Page 5 All rights reserved by STONE Technologies GPS Global positioning, you 1 (Optional) need to choose the Mobile 4G module with GPS function Buttons 1 recovery button (for flash) 1 power LED, 1 heart-beat LED Power Supply Parameter Typical Unit Operating Voltage 11.5...
  • Page 6: Interface Description

    All rights reserved by STONE Technologies Interface Description 2.1 Serial Ports STAD133WT-15 is integrated with 4 serial ports. UART1, UART2, UART3, UART0 are RS-232 level converted, All have been treated with anti-static treatment. UART3,UART4 is RS232 and RS485 hardware reuse(UART3,UART4 is either for RS232, either for RS485, they can’t be used at the same time).
  • Page 7: Usb-Device Interface

    GPIO3_D0_U 2.5 Network Interface The STAD133WT-15 is a 100M adaptive Ethernet interface that is brought out via RJ45. If you want to use Android's Ethernet function, you need to plug the network cable into the ETH interface and then turn on the Ethernet function by setting.
  • Page 8: Button

    -OUT_L -OUT_R +OUT_R 2.10 WIFI and Bluetooth Module STAD133WT-15 is equipped with Bluetooth WIFI 2-in-1 AP6212 module. AP6212 can support Bluetooth 4.2 protocol 2.4G WIFI, after pairing, it supports the function of transferring files with mobile phones and other devices.
  • Page 9: Module

    2.13 LED Interface The STAD133WT-15 has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal.
  • Page 10: Accessories

    All rights reserved by STONE Technologies Accessories 3.1 Antenna Selection Rod antenna FPC antenna 3 meters sucker antenna 3.2 Speaker Speaker Configuration Details Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040...
  • Page 11: Physical Dimensions

    All rights reserved by STONE Technologies Physical Dimensions STAD133WT-15 Equipment Manual Release 01/2019...
  • Page 12: International Certification

    All rights reserved by STONE Technologies International Certification CE Certificate FCC Certificate ROHS Certificate ISO9001:2008 STAD133WT-15 Equipment Manual Release 01/2019...
  • Page 13: Naming Rule

    - Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STAD133WT-15 Equipment Manual Release 01/2019...
