Summary of Contents for MEN G214

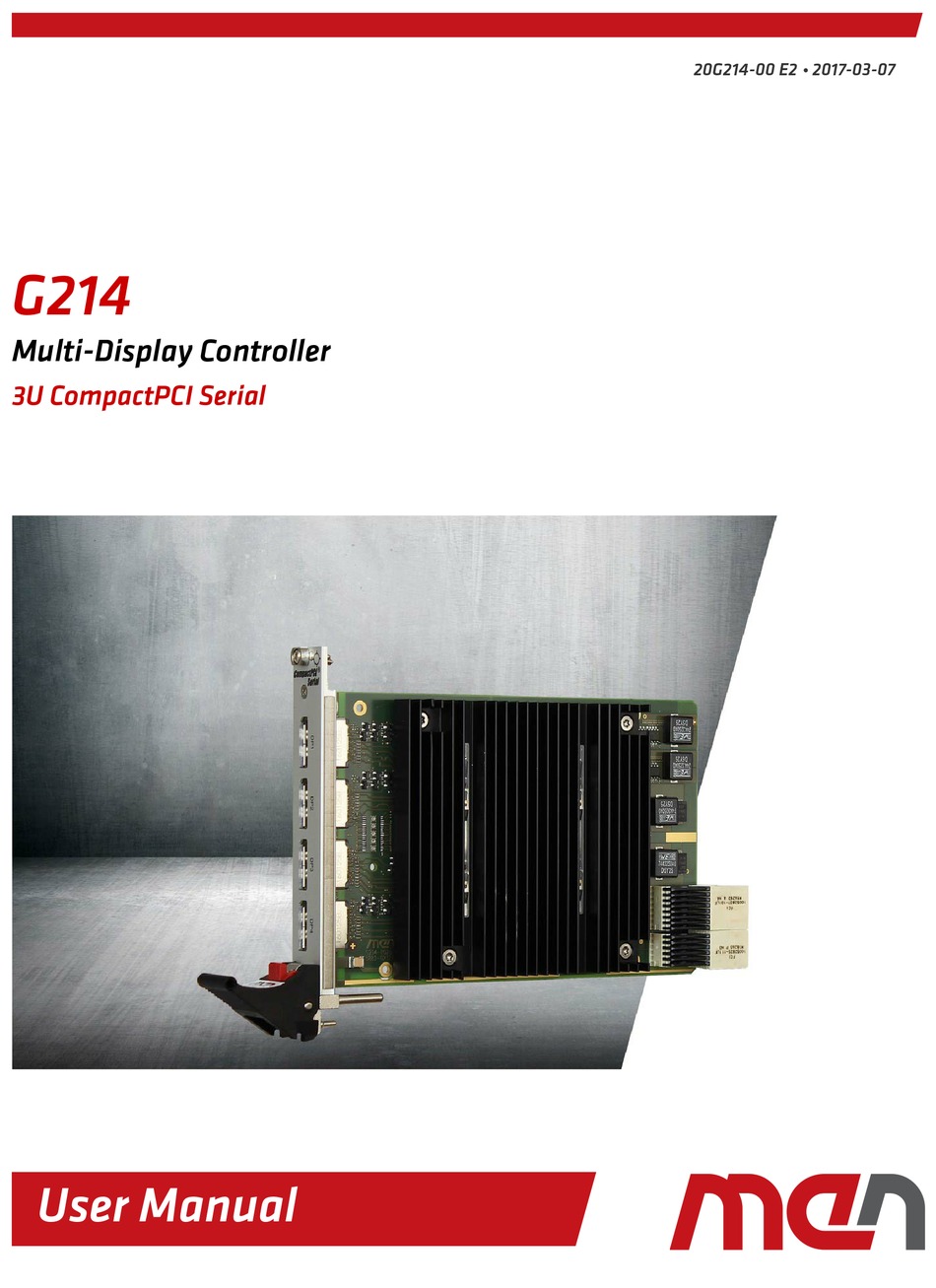

- Page 1 20G214-00 E2 2017-03-07 G214 Multi-Display Controller 3U CompactPCI Serial User Manual...
-
Page 2: Table Of Contents
Contents Contents Contents............2 About this Document . -
Page 3: About This Document
This user manual is intended only for system developers and integrators, it is not intended for end users. It describes the design, functions and connection of the product. The manual does not include detailed information on individual components (data sheets etc.). G214 product page with up-to-date information and downloads: www.men.de/products/g214/ History Issue... - Page 4 About this Document Conventions Indicates important information or warnings concerning situations which could result in personal injury, or damage or destruction of the component. Indicates important information concerning electrostatic discharge which could result in damage or destruction of the component. Indicates important information or warnings concerning proper functionality of the product described in this document.
-
Page 5: Product Safety
Only store the product in its original ESD-protected packaging. Retain the original packaging in case you need to return the product to MEN for repair. 20G214-00 E2 2017-03-07 Page 5 ... -
Page 6: Legal Information
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for the products in question. If buyer does not notify MEN in writing within the foregoing warranty period, MEN shall have no liability or obligation to buyer hereunder. - Page 7 Legal Information Conformity MEN products are no ready-made products for end users. They are tested according to the standards given in the Technical Data and thus enable you to achieve certification of the product according to the standards applicable in your field of application.
-
Page 8: Product Overview
Product Description High Resolution and Long-Term Availability The G214 is a 4HP/3U CompactPCI Serial peripheral board based on the AMD Radeon E6760 GPU. The board is an easy way to provide a CompactPCI Serial system with high- end graphics features that are not offered by regular CPU chipsets. The supported high... -
Page 9: External Interfaces
Product Overview External Interfaces Figure 1. Front interfaces (4 HP model and 8 HP model) ® ® CompactPCI CompactPCI Serial Serial G214 G214 20G214-00 E2 2017-03-07 Page 9 ... -
Page 10: Board Layout
Product Overview Board Layout Figure 2. Board layout – top view (with four DisplayPort interfaces) Heat sink DisplayPort 1.2 connectors CompactPCI Serial connector P2 CompactPCI Serial connector P1 20G214-00 E2 2017-03-07 Page 10 ... -
Page 11: Block Diagram
Product Overview Block Diagram Figure 3. Block diagram 4 HP + 4 HP DisplayPort 1.2 Note: The 02G214‐00 standard model PCIe x4 comes with P2 assembled. Radeon E6760 PCIe x4 DisplayPort 1.1a F Front Rear Options 20G214-00 E2 2017-03-07 Page 11 ... -
Page 12: Technical Data
Product Overview Technical Data Graphics AMD Radeon E6760 graphics processor 600 MHz max. graphics engine operating frequency Maximum resolution (with PCIe x8 host connection) 4096x2560 pixels at 24 bpp / 60 Hz (DisplayPort 1.2) 2560x1600 pixels at 24 bpp / 60 Hz (DisplayPort 1.1a) 6 SIMD engines x 80 processing elements = 480 shaders ... - Page 13 Airflow: min. 1.0 m/s Temperature range (storage): -40°C to +85°C Cooling concept Air-cooled, or Conduction-cooled in MEN CCA frame Relative humidity (operation): max. 95% non-condensing Relative humidity (storage): max. 95% non-condensing Altitude: -300 m to +3000 m ...
-
Page 14: Product Identification
Product Identification MEN documentation may describe several different models and design revisions of the G214. You can find the article number, design revision and serial number affixed to the G214. Article number: Indicates the product family and model. This is also MEN’s main ... -
Page 15: Getting Started
Power down the system. » Insert the G214 into a peripheral slot of your CompactPCI Serial system, making sure that the backplane connectors are properly aligned. Note: The peripheral slots of every system are marked by a circle with a plus sign behind... -
Page 16: Functional Description
Thermal Considerations A suitable heat sink is provided to meet thermal requirements. If you use any other heat sink than that supplied by MEN, or no heat sink at all, warranty on functionality and reliability of the G214 may cease. -
Page 17: Table 2. Pin Assignment - Displayport
It depends on the operating system, driver software and use case if an active or passive DisplayPort adapter is applicable. Note: Passive DisplayPort adapters are only applicable for up to two monitors. MEN offers suitable accessory articles for G214. See the MEN website for ordering information: www.men.de/products/g214/#ord... -
Page 18: Table 4. Maximum Resolution With X8 Pci Express Connection (Calculated Values)
Functional Description 3.4.1.2 Display Resolution The G214 supports up to six single Displays via its DisplayPort connectors. If more than one DisplayPort interface is used, the type of PCIe connection limits the maximum resolution on each interface. The following table shows the maximum resolution on each DisplayPort using up to six displays with the same resolution. -
Page 19: Connection Of Displays
Functional Description 3.4.2 Connection of Displays 3.4.2.1 Daisy-Chaining Displays The DisplayPort 1.2 interfaces simplify connecting displays with multi-streaming technology (MST). MST enables daisy-chaining of displays compatible with DisplayPort 1.2 and the use of MST hubs to drive multiple displays via one DisplayPort connector. A DisplayPort 1.1a compatible display in the daisy-chain has to be the last member of the chain, since it has no DisplayPort output available. -
Page 20: Compactpci Serial
Functional Description 3.4.2.3 AMD Eyefinity Technology The AMD Eyefinity Multi-Display Technology allows the use of up to six displays simultaneously. This enables addressing of multiple displays with the same resolution as a "single large surface", where all connected displays appear as one large screen. See the AMD website for further information on AMD Eyefinity technology: http://www.amd.com/eyefinity...
