LED DALI Signal Repeater - User Manual

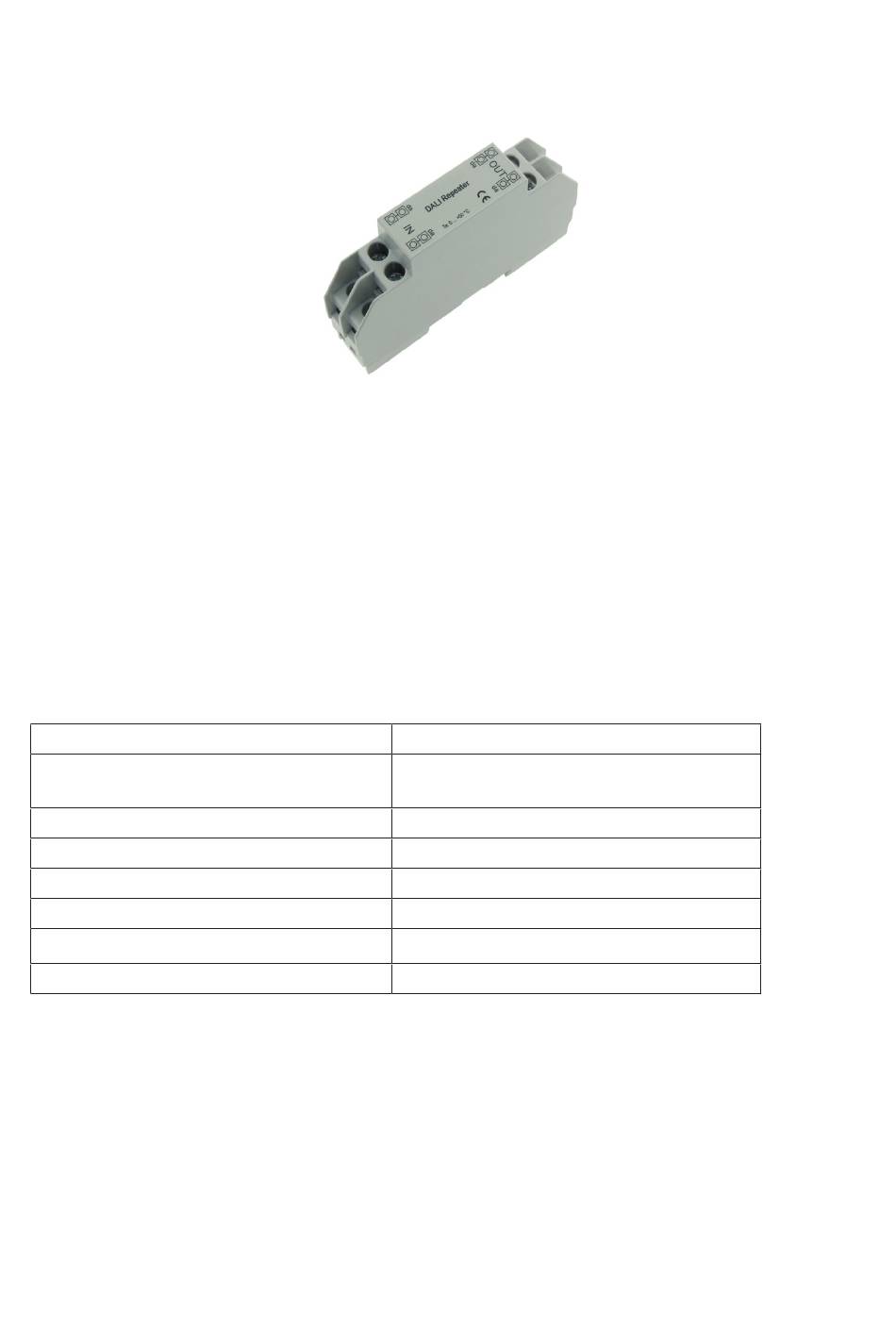

1. Product Description

The DALI Signal Repeater is a device to enhance the maximum DALI cable length from 300m up
to 600m. Either radially arranged network layout or cascaded swystem mounting operated with
single master. The maximum amount of DALI-devices in the total network is limited to 64, the
devices can be divided on the subcircuits at will. Suitable for Din-Rail mounting.

2. Specification

power supply
typ. current consumption
(main control/sub control circuit)
DALI IN / Input
DALI OUT / Output
mounting
max. wire corss-section
Dimensions (L x W x H) in mm
weight

3. Description

1. Device to enhance the maximum DALI cable length from 300m up to 600m
2. Enhancement and Transmission of the DALI-signals (bidirectional).
3. Galvanic separation between DALI-circuits
4. Either radially arranged network layout or cascaded system mounting operated with single
master.
5. restricted cascading (Series wiring) of multiple repeaters in multi-master operating mode
6. The maximum amount of DALI-devices in the total network is limited to 64, the devices can be
divided on the subcircuits at will.
7. For each subordinate DALI circuits a separate power supply is needed. (DALI PS).
8. Suitable for Din-Rail mounting.
Item no.: LC-004-700
via DALI- Bus
6 mA / 4mA
DALI
DALI
DN-Rail
2,5 mm2
120 x 41 x 22 mm
78g
