I N S T R U C T I O N M A N U A L
FOR THE ORIGINAL
WETBENCH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WETBENCH and is the answer not in the manual?

Questions and answers

Summary of Contents for PRAXIS WETBENCH

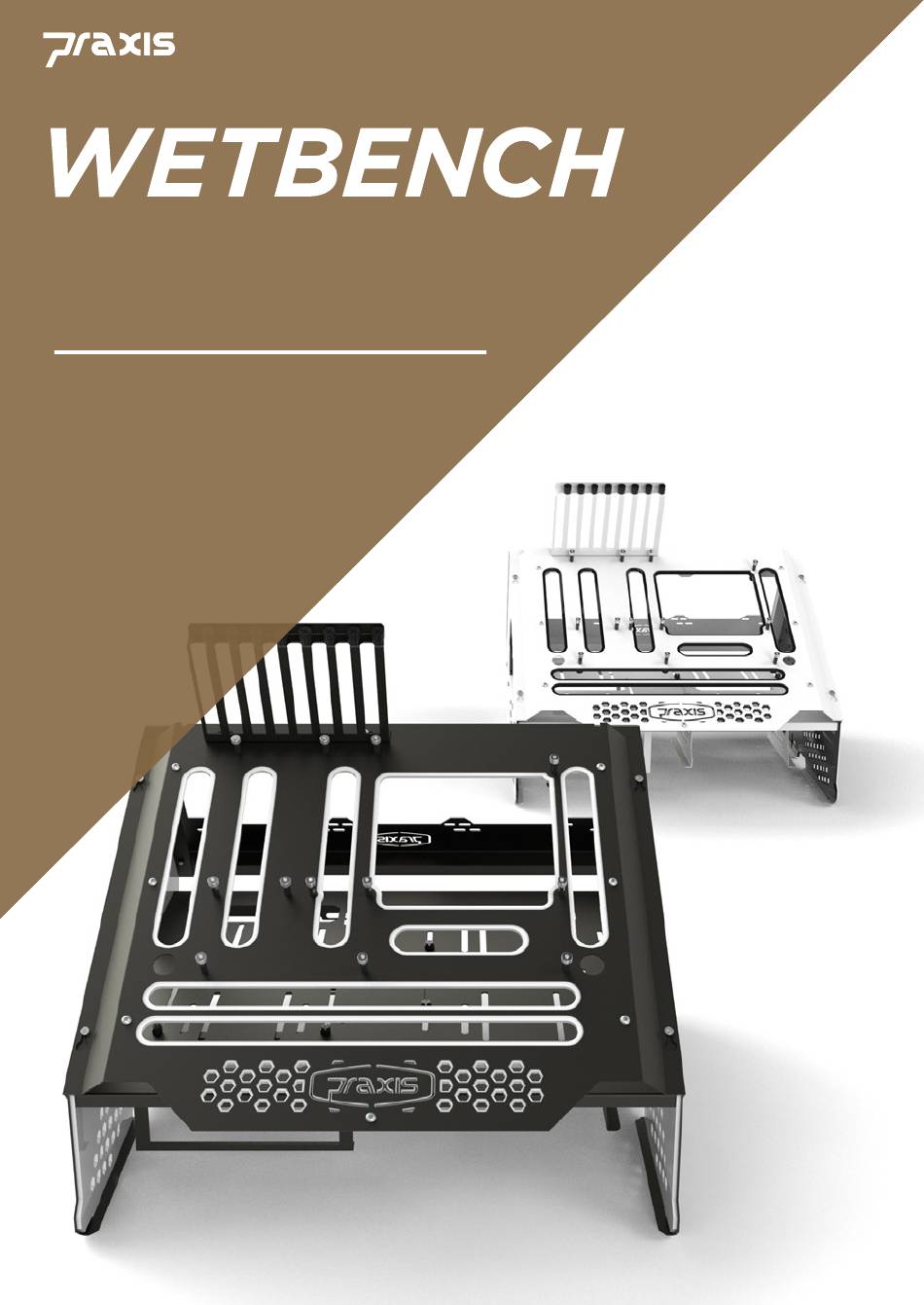

  • Page 1 I N S T R U C T I O N M A N U A L FOR THE ORIGINAL WETBENCH...

  • Page 2: Table Of Contents

    CONTENTS INCLUDED MOUNTING HARDWARE ....... 3 WETBENCH HARDWARE ............4 ACRYLIC LEG INSTALL ............5 LEG TO MIDTRAY INSTALL ..........6 HARD DRIVE TO MIDTRAY INSTALL ........ 7 PSU INSTALL ................8 OPTICAL DRIVE INSTALL ............. 9 INSTALL OF MIDTRAY BRACKETS ........10 ACRYLIC MOTHERBOARD INSTALL ........11...

  • Page 3: Included Mounting Hardware

    MOUNTING HARDWARE PART # PART NAME M3 MOTHERBOARD NUT M4X6 LOWHEAD SCREW 12MM MOTHERBOARD STANDOFF M3 SPLIT WASHER M3X10MM SOCKET CAP M3x8MM GPU SCREWS 6/32 .25” HDD NYLON SCREW M4X8MM MIDTRAY NYLON SCREW M3x5MM SSD/DRIVE NYLON SCREW M3 MOTHERBOARD SCREW 2.5MM HEX KEY WRENCH...

  • Page 4: Wetbench Hardware

    WETBENCH HARDWARE ITEM # PART NAME MOTHERBOARD TRAY MID TRAY LEFT & RIGHT SLANTED LEGS BACK RADIATOR TRAY GPU BRACKET FRONT AND BACK PSU BRACKET 5.25” BAY BRACKET ACRYLIC INSERTS FOR LEGS ACRYLIC INSERTS FOR MOTHERBOARD...

  • Page 5: Acrylic Leg Install

    INSTALLING ACRYLIC TO LEGS STEP 1 | M3 NUT M3 WASHER M3 CAP Grab your leg and acrylic insert. Be sure to pull off the brown protective paper from your acrylic. Attach your leg and acrylic using 1 M3X10MM SOCKET CAP (part 5), 1 M3 SPLIT WASHER (part 4), and 1 M3 MOTHERBOARD NUT (part 1).

  • Page 6: Leg To Midtray Install

    ATTACHING LEGS TO MIDTRAY STEP 2 | M4x6MM FIGURE 1 Gather the Midtray and both legs. Attach them using 4 M4X6 lowhead screws (part 2) on each side. Be sure that the midtray overlaps the leg and that you lean your leg at an angle and then straighten it into the midtray as Figure 1 shows.

  • Page 7: Hard Drive To Midtray Install

    HARDDRIVE INSTALL STEP 3 | M3x5MM 6/32” Install any HDD or SDD on top of the mid tray. These drives can be oriented on either front or back depending on your prefer- ence. SSD’s use M3x5 nylon screws (part 9) and HDD’s utilize 6/32”...

  • Page 8: Psu Install

    PSU INSTALL STEP 4 | M4X8MM FIGURE 2 REAR VIEW After your drives are installed you can screw in the back of your PSU to the bracket. Then connect it to the location of the midboard tray of your choosing. (Figure 2.2).

  • Page 9: Optical Drive Install

    OPTICAL DRIVE INSTALL STEP 5 | M3x5MM Use M3x5 nylon screws (part 8) to install your optical drive. If you’re not using one you can disregard this step.

  • Page 10: Install Of Midtray Brackets

    MIDTRAY BRACKETS INSTALL STEP 6 | M4X8MM After your drives and/or ODD is installed you can install your brackets onto the midtray using M4x8 nylon screws (part 8). Note: These brackets are modular and can be oriented on both the left and right side and slid forward and backwards.

  • Page 11: Acrylic Motherboard Install

    MB & ACYLIC INSTALL STEP 7 | M3 WASHER M3 CAP & NUT Grab your motherboard and acrylic insert. Be sure to pull off the brown protective paper from your acrylic. Attach your motherboard and acrylic using 7 M3X10MM SOCKET CAP (part 5), 7 M3 SPLIT WASHER (part 4), and 7 M3 MOTHERBOARD NUT (part 1).

  • Page 12: Motherboard Standoff Install

    INSTALLING MB STANDOFFS STEP 8 | M3 MB SCREW 12MM STANDOFF Install your 12mm standoffs (part 3) and your M3 motherboard screws (part 10) to the motherboard tray. Ensure that you’re placing them in the correct location according to your motherboard layout.

  • Page 13: Gpu Bracket Install

    GPU BRACKET INSTALL STEP 9 | M4x6MM M3x8MM Install the GPU bracket as illustrated above using 2 M4x6 Lowhead screws (part 2). You can shift your GPU bracket left and right to align with your GPU. Use M3x8MM GPU screws (part 6) to secure your GPU into the bracket.

  • Page 14: Motherboard Tray Install

    INSTALLING MB TRAY STEP 10 | M4x6MM FIGURE 3 Screw in 2 M4x6 lowhead screws (part 2) to each leg (4 total screws). Don’t completely tighten these (figure 3) as the motherboard tray will slide under the screws as shown in figure 3.

  • Page 15: Motherboard Install

    INSTALLING MOTHERBOARD STEP 11 | M3 NUT After your standoffs are installed, place your motherboard on the tray and hand tighten the M3 nuts (part 1) to properly secure your board. Make sure they are fully tightened ensuring no short will occur.

  • Page 16: Radiator Tray Install

    STEP 12 | FIGURE 4 M4x6MM Spin your wetbench to the back and place 2 M4x6 lowhead screws (part 2) on each leg. Keep these loose so your radiator mount can slide on (figure 4). Once everything is installed you can tighten down the radiator bracket or keep it as is for easy disconnect.
  • Page 17 RADIATOR VARIATIONS STEP 12.1 | The radiator tray can hold up to a 360mm radiator internally or externally. We recommend utilizing the hardware that came with your radiator for install.

  • Page 18: Vandal Switch Install

    WIRING VANDAL SWITCH FIGURE 5.1 Wiring vandal switch for power: Take the power SW cord and attach the NO and C prong. Then connect the other end to the POWER on the motherboard. Repeat for POWER & RESET the RESET button. FIGURE 5.1...
  • Page 19 Your 22mm vandal switches can be installed on either the right or left side of the motherboard.. Use the supplied hardware to properly secure your vandal switch. We also recommend wiring the switches and testing before installing them to your wetbench.
  • Page 20 MOTHERBOARD MITX, mATX, ATX, eATX OPTICAL DRIVES Up to two 5.25” drives, can support dual 5.25” bay reservoir STORAGE DRIVES 4 HDD or 4 SSD 3 HDD and 1 SSD 2 HDD and 2 SSD 1 HDD and 3 SSD SSDs up to 2.5”...
