Summary of Contents for GOMEZ SIM INDUSTRIES QRS-1
- Page 1 USER MANUAL...

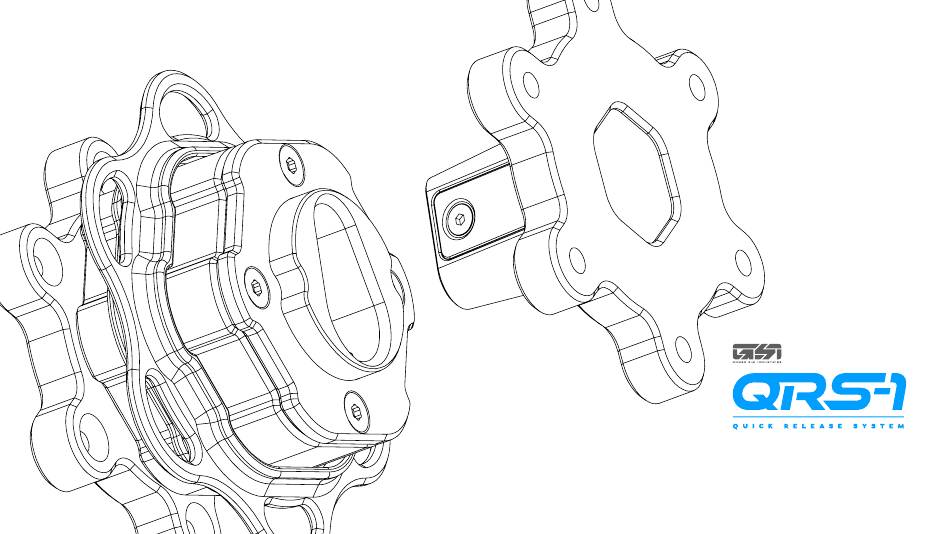

- Page 2 M5 x 16mm COUNTERSUNK SCREWS TOLERANCE SHIMS MOUNTING INSTRUCTIONS Step 1. Using the provided “stubby” hex tool attach main wheel side of the QRS-1 quick release mechanism to your 70mm circle pitch diameter wheel using the provided M5 x 16mm countersunk screws. Step 2.
- Page 3 TOLERANCE ADJUSTMENT CAP M3 x 6mm SHIM SCREWS QRS-1 BASE SIDE UNDERSTANDING TOLERANCE ADJUSTMENT The base side tightness (male) can be adjusted with the provided shims to add or remove tolerance between the male and female sides of the Each shim is 0.05mm in thickness. To achive the perfect fitment add or remove one shim at a time until desired fit is found.
- Page 4 TERMS AND CONDITIONS WARRANTY LIMITATIONS Gomez Sim Industries LLC prides itself on its attention to detail and the quality of its products and materials. This warranty does not include: Any condition resulting from other than ordinary wear or any use for which We provide this manufacturer’s warranty from the date of purchase for all GSI products for a period of 12 months.
- Page 5 ● An accident or other event has occurred after the product has been handed over, in which the product has been dam- aged by external factors. ● Normal wear and tear in use. 5,20 CE-Marking Product meets EU standards for health, safety, and environmental protection. Manufacturer: Gomez Sim Industries LLC Manufacturer address: 1167 Mississippi Ave #100, Dallas, Texas 75207...
