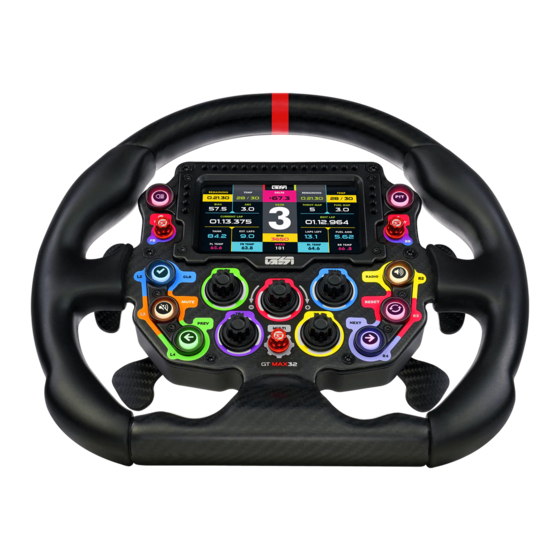

Summary of Contents for GOMEZ SIM INDUSTRIES GT MAX32

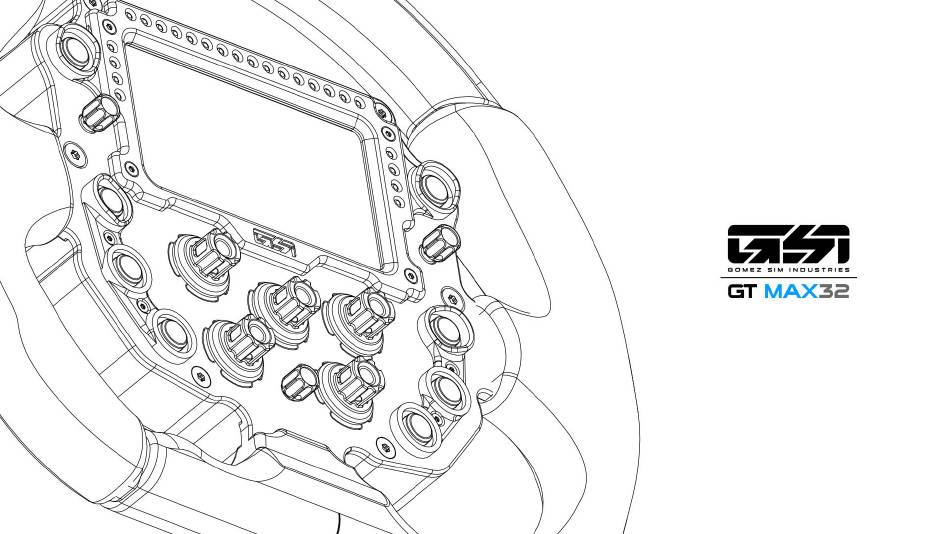

- Page 1 OWNERS MANUAL...
- Page 2 GT MAX32 FEATURE OVERVIEW...
-
Page 3: Connecting Methods
CONNECTING METHODS Wheel side DIN connector. To ensure proper operation, you need to have a clean, reliable USB data For smooth operation, we recommend using throughput signal and the absence of EMI (Electrical Magnetic Interference) from other devices. one of the following connection methods: - Connect wheel via a powered USB hub or directly to computer. - Page 4 GSI CONTROL CENTER INSTALLATION Download GSI Control Center. https://gomezsimindustries.com/support Upon installation, follow the instructions based on your GSI model. The installer will download all the necessary elements you need for smooth operation of your GSI model such as drivers and LED profiles. With the GSI control center you will be able to set on board functions for clutch calibration, clutch bite point, dead zones and master clutch selection.
- Page 5 3. Select your display (Generic VOCORE) in the "Pick a supported device" screen and click Ok. 4. Make sure to uncheck ‘Flip display' (180º). 5. Select ‘GSI GT MAX32 Dash’ or your dash of choice from the ‘Displayed dashboard’ dropdown...
- Page 6 RGB LED SETUP SIMHUB LED SETUP Navigate to the Arduino section and click the “My Hardware” tab. Here make sure “Single Arduino” is selected. Your GSI wheels onboard LEDs will appear under “Detected Hardware” Test LED function by navigating to the “RGB LEDS” tab. Once there click “Open data test editor”...
- Page 7 CLUTCH CALIBRATION CLUTCH CALIBRATION VIA GSI CONTROL CENTER With the wheel plugged in, calibrate both clutches by clicking the Calibration button in the GSI Control Center app, then pull both clutches FULLY and release. Your clutches are now calibrated. After calibration, click either the Dual Clutch or Gas and Brake option buttons.
- Page 8 SHIFTER / CLUTCH MAINTENANCE GSI “CEMS” N52 SHIFTERS GSI shifters have incredibly tight tolerances for a maximum level of precision in actuation. It is important to keep the shifters well lubed for proper operation. Shifters come lubed from the GSI factory. After some time the shifter will need to be maintained and lubed by the user.
-
Page 9: Hub Installation
HUB INSTALLATION MOUNTING (Optionally Available) HUB EXTENSIONS Each GSI wheel comes with a 70mm pitch circle diameter. The Pitch Circle Diameter (PCD) is the diameter of the circle which passes through the center of all the wheel rim holes. Any hub that is a 70mm PCD will attach to the GSI. - Page 10 QRS-1 INSTALLATION MOUNTING QRS-1 “QUICK RELEASE SYSTEM” (Optionally Available) The GSI QRS-1 “Quick Release System” is mounted with the provided short hex tool. Screw the six M5 x 16mm countersunk screws to marry the wheel side QR to the back of the GSI GT MAX 32. The base side tightness (male) can be adjusted with the provided shims to add or remove tolerance between the male and female sides of the QR.
- Page 11 This warranty gives you specific legal rights. You may have other rights, Please note, to receive a free replacement, you may be asked to send the faulty product to Gomez Sim Industries. which vary from state to state.
- Page 12 ● An accident or other event has occurred after the product has been handed over, in which the product has been damaged by external factors. ● Normal wear and tear in use. CE-Marking Product meets EU standards for health, safety, and environmental protection. Manufacturer: Gomez Sim Industries LLC Manufacturer address: 1167 Mississippi Ave #100, Dallas, Texas 75207...
