i61&i62&i63&i64

User Manual

Software Version:0.0.14

Release Date：2021/10/25

Table of Contents

Need help?

Do you have a question about the i61 and is the answer not in the manual?

Questions and answers

Summary of Contents for LINKVIL i61

Page 1 User Manual Software Version:0.0.14 Release Date：2021/10/25...
Page 2: Table Of Contents
Directory Directory................................１ 1 Picture................................４ 2 Table.................................. ６ 3 Safety Instruction..............................1 4 Overview................................2 5 Install Guide................................ 3 5.1 Use POE or external Power Adapter.....................3 5.2 Appendix............................... 3 5.2.1 Common command modes......................3 5.2.2 LED status............................4 6 User Guide................................6 6.1 Interface description..........................6 6.2 Interface description..........................8 6.3 Installation instructions........................
Page 3 9.2 System >> Information........................21 9.3 System >> Account..........................22 9.4 System >> Configurations........................22 9.5 System >> Upgrade..........................23 9.6 System >> Auto Provision........................25 9.7 System >> FDMS..........................28 9.8 System >> Tools...........................28 9.9 System >> Reboot..........................29 9.10 Network >> Basic..........................29 9.11 Network >>...
Page 4 9.40 EGS Setting >> Card...........................73 9.41 EGS Setting >> Password......................... 74 9.42 EGS Setting >> Time Profile.......................76 9.43 EGS Setting >> Logs........................... 77 10 Trouble Shooting.............................78 10.1 Get device system information......................78 10.2 Reboot device............................78 10.3 Device factory reset..........................78 10.4 Network Packets Capture........................78 10.5 Get device log............................78 10.6 Common Trouble Cases........................
Page 5: Picture
Picture Picture 1 - i61 Panel..........................6 Picture 2 - i62 Panel..........................6 Picture 3 - i63 Panel..........................7 Picture 4 - i64 Panel..........................7 Picture 5 - Interface..........................8 Picture 6 - Installation.......................... 9 Picture 7 - WEB Login......................... 10 Picture 8 - SIP Line Configuration.......................11 Picture 9 - Card...........................
Page 6 Picture 37 - Basic Settings........................43 Picture 38 - Line Basic Setting......................43 Picture 39 - RTCP-XR...........................44 Picture 40 - Features.......................... 45 Picture 41 - Media Settings........................ 49 Picture 42 - Camera Settings......................50 Picture 43 - SnapShot......................... 54 Picture 44 - Action URL........................55 Picture 45 - Time/Date........................
Page 7: Table
Table Table 1 - Common command mode....................3 Table 2 - i61&i62 LED status......................... 4 Table 3 - i63 LED status.........................4 Table 4 - i64 LED status.........................5 Table 5 - Panel introduction......................... 7 Table 6 - Interface..........................8 Table 7 - Configuration instructions....................10 Table 8 - Intercom..........................17...
Page 8 Table 37 - Time to add the card, automatically generatedd Rule............. 74 Table 38 - Time Profile........................76 Table 39 - Logs............................ 77 Table 40 - Trouble Cases........................79 ７...
Page 9: Safety Instruction
Safety Instruction Please read the following safety notices before installing or using this unit. They are crucial for the safe and reliable operation of the device. Please use the external power supply that is included in the package. Other power ...
Page 10: Overview

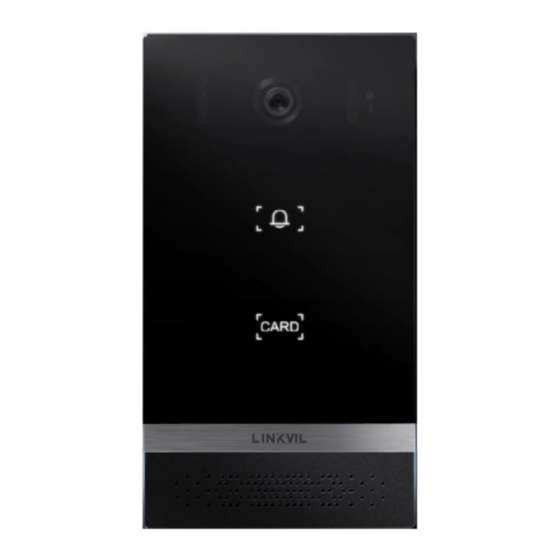

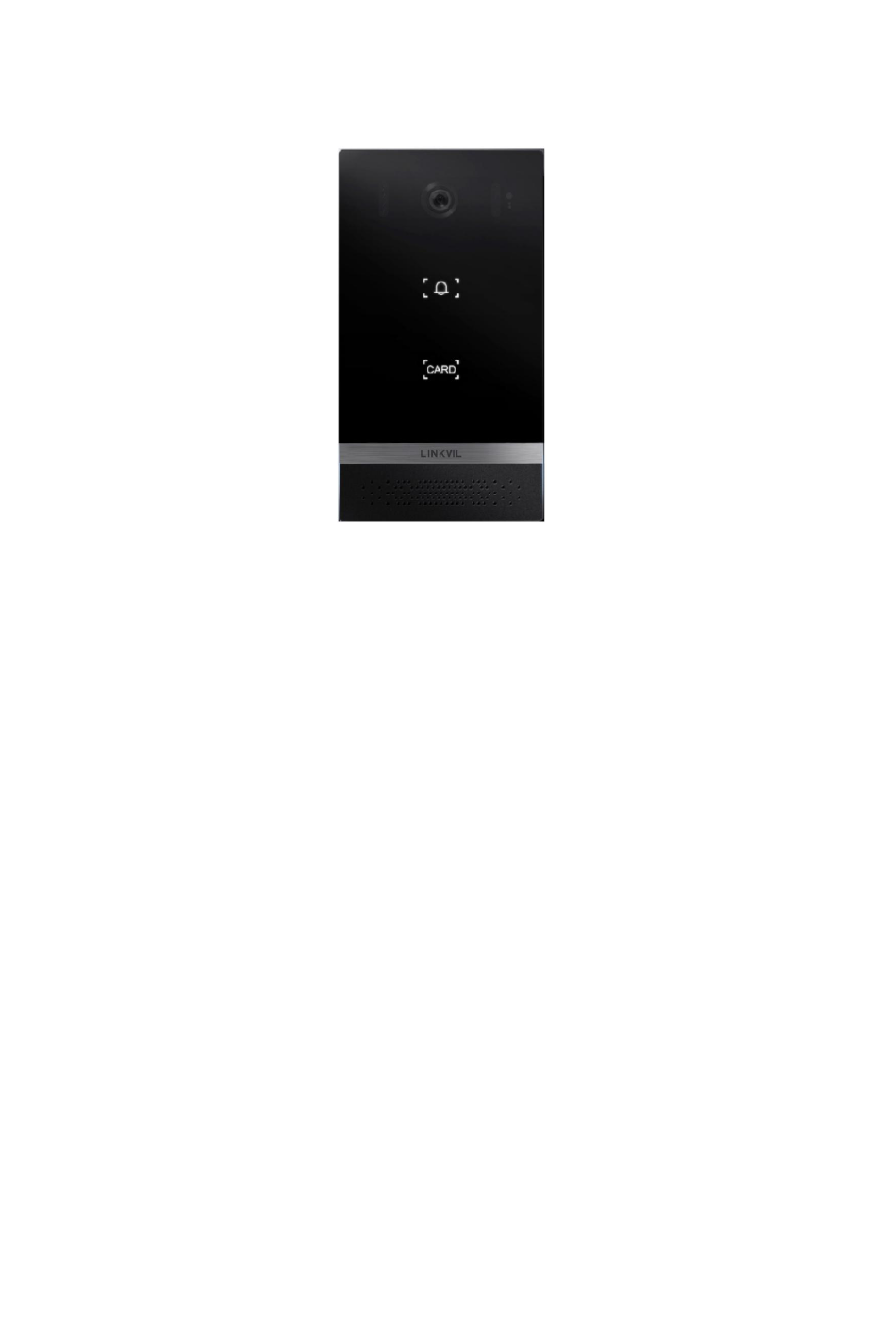

Overview i61&i62&i63&i64 is a SIP Audio and Video Door Phone specially developed for the needs of users in the security industry. It has the advantages of high reliability and high-quality audio/video. It integrates intelligent security and audio and video access control into one.
Page 11: Install Guide
Install Guide 5.1 Use POE or external Power Adapter i61&i62&i63&i64 called as ‘the device’ hereafter, supports two power supply modes, power supply from external power adapter or over Ethernet (POE) complied switch. POE power supply saves the space and cost of providing the device additional power outlet.
Page 12: Led Status
After you press the speeddial button again, you can exit the voice loopback mode 5.2.2 LED status i61 and i62 indicators have the same position and behavior Table 2 - i61&i62 LED status Type Indicator status...
Page 13 Table 4 - i64 LED status Type Indicator status Indicator status LED light Steady green Standby (No registration, normal network) Steady cyan Registration success Cyan light flash talking/Calling/going Red slow flash Registration failed Red slow flash Network anomaly Orange light flash Upgrade and restore factory Card reader indicator Steady...
Page 14: User Guide
User Guide 6.1 Interface description IP Camera Photosensitive Infrared lamp Distance sensor DSS key RFID area Speaker Picture 1 - i61 Panel IP Camera Photosensitive Infrared lamp Distance sensor DSS key Speaker RFID area Picture 2 - i62 Panel...
Page 15 IP Camera Photosensitive Infrared lamp Distance sensor DSSkey Speaker RFID area Picture 3 - i63 Panel IP Camera Photosensitive Infrared lamp Distance sensor Dialing key Speaker RFID area Picture 4 - i64 Panel Table 5 - Panel introduction Number Name Description IP Camera Video signal acquisition and transmission...
Page 16: Interface Description
6.2 Interface description Open the rear case of the device, there is a row of terminal blocks for connecting the power supply, electric lock control, etc. The connection is as follows: ① ⑤ ② ⑥ ③ ⑦ ④ ⑧ Picture 5 - Interface Table 6 - Interface Description Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is...
Page 17: Installation Instructions
6.3 Installation instructions 6.3.1 Installation 1. Draw the installation holes on the wall according to the installation dimension drawing provided by the equipment, use an electric drill to make the vacant place, after drilling the hole, remove the installation dimension drawing, and use a hammer to drive the plastic plug into the drilled hole;...
Page 18: Web Configuration
Touch and hold the speed-dial button for 3 seconds, wait for the speaker to beep, press the speed-dial button three times within 5 seconds, and the system will automatically announce the IP address by voice after successfully switching to the network mode. Table 7 - Configuration instructions Default configuration DHCP mode...
Page 19: Door Opening Operation
correct information such as phone number, authentication name/password, SIP server address, server port, etc. which are provided by the SIP server administrator. WEB interface ： After login into the phone page, enter [Line] >> [SIP] and select  SIP1/SIP2 for configuration, click apply to complete registration after configuration, as shown below: Picture 8 - SIP Line Configuration 6.6 Door opening operation...
Page 20: Basic Function
Basic Function 7.1 Swipe to open the door Access control settings on web page→EGS Setting→Add Card Rule→Select " Type"  (Normal card provides open door function, Add card and Del card provides add and delete card function. Default Normol card) Entere your name and card number (just enter the first 10 digits of the card number), ...
Page 21: Password To Open Door
Picture 10 - Remote Door Opening 7.3 Password to Open Door Configure access on Web→EGS Setting →Password → Add password rule → Select  "Local " (only the i64 supports local password access) Enter your your name and password password to the password list. ...
Page 22: Making Calls
7.4 Making Calls After setting the function key to Hot key and setting the number, press the function key to immediately call out the set number, as shown below: Picture 12 - Function Setting See detailed configuration instructions 9.26 Function Key After setting the speed dial according to the above settings, i64 can directly dial the set number by pressing the management center button You can also press the dial button first...
Page 23: Auto Answer
7.7 Auto Answer The user can turn off the auto-answer function (enabled by default) on the device webpage, and the ring tone will be heard after the shutdown, and the auto-answer will not time out. Web interface: Enter [Line] >> [SIP], Enable auto answer and set auto answer time and click submit. Picture 13 - WEB line enable auto answer SIP P2P auto answering：...
Page 24: Call Waiting
The range can be set to 0~120s, and the call will be answered automatically when the timeout is set. 7.8 Call Waiting Enable call waiting: new calls can be accepted during a call.  Disable call waiting: new calls will be automatically rejected and a busy signal will be ...
Page 25: Advance Function
Advance Function 8.1 Intercom The equipment can answer intercom calls automatically. Picture 17 - WEB Intercom Table 8 - Intercom Parameters Description When the intercom system is enabled, the device will Enable Intercom accept the SIP header call-info of the Call request Command automatic call If the option is enabled, device will answer the intercom call automatically while it is in a normal call, and it will...
Page 26 Picture 18 - MCAST Table 9 - MCAST Parameters Description Enable Auto Mcast Send the multicast configuration information by Sip Notify signaling, and the device will configure the information to the system for multicast listening or cancel the multicast listening in the system after receiving the information Auto Mcast Timeout When a multicast call does not end normally, but for some...
Page 27: Hotspot
[Intercom Settings] >> [MCAST]. Press the DSSKey of Multicast Key which you set.  Receive end will receive multicast call and play multicast automatically.  MCAST Dynamic： Description: send multicast configuration information through SIP notify signaling. After receiving the message, the device configures it to the system for multicast monitoring or cancels multicast monitoring in the system.
Page 28 acquired and configured when the device is enabled. Just change the mode to "client" and the other options are set in the same way as the hotspot. Picture 19 - SIP hotspot The device is the hotspot server, and the default extension is 0. The device ACTS as a client, and the extension number is increased from 1 (the extension number can be viewed through the [SIP hotspot] page of the webpage).
Page 29: Web Configurations
Web Configurations 9.1 Web Page Authentication Users can log into the device's web page to manage user device information and operate the device. Users must provide the correct user name and password to log in. If the password is entered incorrectly three times, it will be locked and can be entered again after 5 minutes.
Page 30: System >> Account
9.3 System >> Account Picture 20 - WEB Account On this page the user can change the password for the login page. Users with administrator rights can also add or delete users, manage users, and set permissions and passwords for new users. 9.4 System >>...
Page 31: System >> Upgrade
Export Configurations  Right click to select target save as, that is, to download the device's configuration file, suffix “.txt”. (note: profile export requires administrator privileges) Import Configurations  Import the configuration file of Settings. The device will restart automatically after successful import, and the configuration will take effect after restart Clear Configurations ...
Page 32 Firmware Upgrade： Web page： Login phone web page, go to [System] >> [Upgrade].  Picture 23 - Web page firmware upgrade Table 11 - Firmware upgrade Parameter Description Upgrade server Enable automatic upgrade, If there is a new version txt and new software firmware on the server, phone Enable Auto Upgrade will show a prompt upgrade message after Update Interval.
Page 33: System >> Auto Provision
The file requested from the server is a TXT file called vendor_model_hw10.txt.Hw  followed by the hardware version number, it will be written as hw10 if no difference on hardware. All Spaces in the filename are replaced by underline. The URL requested by the phone is HTTP:// server address/vendor_Model_hw10 ...
Page 34 Picture 24 - Auto provision settings Devices support SIP PnP, DHCP options, Static provision, TR069. If all of the 4 methods are enabled, the priority from high to low as below: PNP>DHCP>TR069> Static Provisioning Transferring protocol: FTP、 TFTP、 HTTP、 HTTPS Table 12 - Auto Provision Auto Provision Parameters...
Page 35 Enable Get When the feature is enable, if the configuration of server is Digest From changed, phone will download and update. Server DHCP Option Configure DHCP option, DHCP option supports DHCP custom Option Value option | DHCP option 66 | DHCP option 43, 3 methods to get the provision URL.
Page 36: System >> Fdms
3. Update after interval. Static Provisioning Server TR069 Enable TR069 Enable TR069 after selection ACS Server Type There are 2 options Serve type, common and CTC. ACS Server URL ACS server address ACS User ACS server username (up to is 59 character) ACS Password ACS server password (up to is 59 character) Enable TR069...
Page 37: System >> Reboot
Picture 26 - Tools Syslog： When enabled, set the syslog software address, and log information of the device will be recorded in the syslog software during operation. If there is any problem, log information can be analyzed by technical support. 9.9 System >>...
Page 38 Picture 27 - Network Basic Setting Table 14 - Network Basic Setting Field Name Explanation IPv4 Network Status The current IP address of the equipment Subnet mask The current Subnet Mask Default gateway The current Gateway IP address The MAC address of the equipment IPv4 Settings Settings Select the appropriate network mode.
Page 39: Network >> Service Port
1）After setting the parameters, click【Apply】to take effect. 2） If you change the IP address, the webpage will no longer responds, please enter the new IP address in web browser to access the device. 3）If the system USES DHCP to obtain IP when device boots up, and the network address of the DHCP Server is the same as the network address of the system LAN, then after the system obtains the DHCP IP, it will add 1 to the last bit of the network address of LAN and modify the IP address segment of the DHCP Server of LAN.
Page 40: Network >> Vpn
RTP port start The value range is 1025-65535. The value of rtp port starts from range the initial value set. Each time a call is made, the value of the voice and video ports is increased by 2 RTP port quantity Number of calls Network >>...
Page 41: Network >> Advanced
When the VPN connection established, the VPN IP Address should be displayed in the VPN status. There may be some delay of the connection establishment. User may need to refresh the page to update the status. Once the VPN is configured, the device will try to connect to the VPN automatically when the device boots up every time until user disable it.
Page 42: Line >> Sip
Picture 30 - Network Setting Network advanced Settings are typically configured by IT administrators to improve the quality of device service. Table 16 - Network Setting Field Name Explanation LLDP Settings Enable LLDP Enable or disable LLDP Packet Interval LLDP Send detection cycle Enable Learning Function Learn the discovered device information on the device QoS Settings...
Page 43 Picture 31 - SIP Table 17 - SIP Parameters Description Register Settings Line Status Display the current line status at page loading. To get the up to date line status, user has to refresh the page manually. Activate Whether the service of the line should be activated Username Enter the username of the service account.
Page 44 Registration Set SIP expiration date. Expiration SIP Proxy Server Enter the IP or FQDN address of the SIP proxy server. Address Proxy Server Port Enter the SIP proxy server port, default is 5060. Proxy User Enter the SIP proxy user. Proxy Password Enter the SIP proxy password.
Page 45 in each feature code field. Enable Blocking Set the feature code to dial to the server Anonymous Call Disable Blocking Set the feature code to dial to the server Anonymous Call Call Waiting Set the feature code to dial to the server Code Call Waiting...
Page 46 Enable Rport Set the line to add rport in SIP headers Enable PRACK Set the line to support PRACK SIP message DNS Mode Select DNS mode, A, SRV, NAPTR Enable Long Allow more parameters in contact field per RFC 3840 Contact Enable Strict Proxy Enables the use of strict routing.
Page 47: Line >> Sip Hotspot
Local SIP Port Modify the phone SIP port. Enable uaCSTA Set to enable the uaCSTA function. Line >> SIP Hotspot 9.15 SIP hotspot is a simple and practical function. It is simple to configure, can realize the function of group vibration, and can expand the number of SIP accounts. 8.3 Hotspot for details Line >>...
Page 48 Picture 33 - Custom setting of dial - up rules Table 19 - Dial - up rule configuration table Parameters Description Dial rule There are two types of matching: Full Matching or Prefix Matching. In Full matching, the entire phone number is entered and then mapped per the Dial Peer rules.
Page 49 Suffix Characters to be added at the end of the phone number. It is an optional item. Length Set the number of characters to be deleted. For example, if this is set to 3, the phone will delete the first 3 digits of the phone number.
Page 50: Line >> Action Plan
Line >> Action Plan 9.17 Picture 36 - Action Plan Table 20 - Action Plan Parameter Description Number Auxiliary phone number (support video) Type Support video display on call. Direction For call mode, incoming/outgoing call displays video Line Set up outgoing lines. Username Bind the user name of the IP camera.
Page 51 Picture 37 - Basic Settings Picture 38 - Line Basic Setting Table 21 - Line Basic Setting Parameters Description STUN Settings Server Address Set the STUN server address Server Port Set the STUN server port, default is 3478 Binding Period Set the STUN binding period which can be used to keep the NAT pinhole opened.
Page 52: Line >> Ptcr-Xr
Mode Line >> PTCR-XR 9.19 The RTCP-XR mode is based on THE RTP Control Extended Report (RFC3611). It sends RTCP-XR packets to evaluate network packet loss, delay, and voice quality. Picture 39 - RTCP-XR Table 22 - set RTCP-XR Parameters Description VQ RTCP-XR Settings RTCP-XR...
Page 53: Intercom Settings >> Features
Intercom settings >> Features 9.20 Picture 40 - Features Table 23 - Feature Parameters Parameters Description Basic Settings Enable Call Waiting Enable this setting to allow user to take second incoming call during an established call. Default enabled. Enable Auto The phone will hang up and return to the idle automatically at Handdown hands-free mode...
Page 54 Outgoing List Enable country Wether enable country Code Code Country Code Country Code Area Code Area Code Allow IP Call If enabled, user can dial out with IP address P2P IP Prefix You can set IP call prefix,for example,i set it as “172.16.2.”,then i input #160 in dialpad and press dial key ,it will call 172.16.2.160 automatically Restrict Active URI...
Page 55 Default: Use the default prompt tone Voice: built-in voice prompt by default, default is "open the door successfully" Support custom door opening success prompt tone, which can be customized in system - upgrade - ringtone or after the door is opened and the ringtone file upgrades successfully Tone of open door Closed: There is no prompt tone after the door fails to open...
Page 56 customised Card deletion failure Close: No beep after failed card deletion beep Default: Use the default beep Voice: default built-in voice prompt, default is "card deletion failed" Support for customising the card deletion failure tone, in System - Upgrade - Ringtone, after upgrading the ringtone file under the card deletion failure can be set to use a customised Magnetic door Closed: No beep after door magnetic detection anomaly...
Page 57: Intercom Settings >> Media
Intercom settings >> Media 9.21 Picture 41 - Media Settings Table 24 - Media Setting Parameters Description Codecs Settings Select the enabled and disabled voice codecs codec:G.711A/U,G.722,G.729,ILBC,opus Media Setting Default Ring Type Set the default ring type. If the caller ID of an incoming call was not configured with specific ring type, the default ring will be used.
Page 58: Intercom Settings>>Camera Settings
H.264Payload Type Set the H264 Payload Type，the value must be 96~127. RTP Control Protocol(RTCP) Settings CNAME user Set CNAME user CNAME host Set CNAME host RTP Settings RTP keep alive Hold the call and send the packet after 30s Alert Info Ring Settings Value Set the value to specify the ring type.
Page 59 adjusted according to the actual color temperature. Incandescent lamp mode：To compensate for the hue of incandescent lamps, it is suitable for use under beige light sources (bulbs, tungsten lamps, candles) and other light sources of this type.。 Warm light mode：Compensate the hue of warm light, suitable for light sources with a color temperature of about 2700K。...
Page 60 lose its color and become a black and white image. Auto mode：The camera automatically sets the sharpness according Sharpness to the environment, no need for the operator to adjust Mode Manual mode：Manually set the sharpness parameters of the camera Sharpness is sometimes called "sharpness", which is an indicator that reflects the sharpness of the image plane and the sharpness of Sharpness the edges of the image.
Page 61 VBR：Video call will adapt to the bit rate of the opposite end, so that the video effect is better. Bitrate Control CBR：The video call will not change according to the bit rate set by itself. Resolution Support 1080P，720P，4CIF,VGA,CIF,QVGA The larger the value is, the more fluent the video is, and the higher Frame Rate the requirement for network bandwidth is;...
Page 62: Intercom Setting >> Mcast
Picture 43 - SnapShot Capture trigger mode: input trigger, call status trigger, Movement detection trigger Input trigger: Select the input port to trigger the snapshot Call status trigger: The snapshot is triggered when an incoming call, call, or call occurs Movement detection trigger: A capture is triggered when the camera detects abnormal action Save the screenshot to the server or SD card.
Page 63: Intercom Setting >> Time/Date
Picture 44 - Action URL Intercom Setting >> Time/Date 9.25 Users can configure the device's time Settings on this page. Picture 45 - Time/Date Table 27 - Time/Date Time/Date Explanation Field Name Network Time Server Settings Time Synchronized via Enable time-sync through SNTP protocol...
Page 64: Intercom Settings>>Time Plan
SNTP Time Synchronized via Enable time-sync through DHCP protocol DHCP Primary Time Server Set primary time server address Set secondary time server address, when primary server Secondary Time Server is not reachable, the device will try to connect to secondary time server to get time synchronization. Time zone Select the time zone Resync Period...
Page 65: Intercom Settings >> Tone
Picture 46 - Time Plan Table 28 - Time Plan Parameters Description Name Enter a defined action name type Timing restart, timing upgrade, timing sound detection, timing playback audio Audio path Support local Local: select the audio file uploaded locally Audio settings Select the audio file you want to play, it supports trial listening, and you can play it immediately after clicking the trial listening...
Page 66: Intercom Settings >> Led
Picture 47 - Tone Intercom settings >> Led 9.28 The user can configure the status and color of the indicator light on this page. Picture 48 - Led Status indicator: The user can customize how the LED displays when the device is in different status.
Page 67: Call List >> Web Dial
User can add specific number to be blocked, or a prefix where any numbers matched the prefix will all be blocked. Restrict Outgoing Call  You can set the rule to restrict some numbers from dialing out,until you remove the number from the table.
Page 68 Picture 50 - Function Key Settings Table 29 - Function Key Settings Parameters Description Function key settings memory Speed Dial:The user can directly dial the set number. This feature is convenient for customers to dial frequent numbers. Intercom: This feature allows the operator or secretary to quickly connect to the phone, widely used in office environments Key event The user can select a function key as the shortcut to trigger an event...
Page 69 Programmable Key Settings Desktop None：Nothing happens when you press the speed dial Dsskey1：When it is set to dsskey1, follow the settings of dsskey1 to make call, answer, etc. Dsskey2 ： When it is set to dsskey2, perform operations such as calling and answering according to the setting of dsskey2 Dialer None：Nothing happens when you press the speed dial...
Page 70 Memory  Enter the phone number in the input box. When you press the function key, the device will call out the set phone number. This button can also be used to set the IP address, press the function key to make an IP direct call. Picture 51 - Memory Key Table 30 - Memory Key Subtyp...
Page 71: Security >> Web Filter
Picture 52 - Multicast Table 31 - Web Multicast Type Number Subtype G.711A Set the host IP address and port number, they must G.711U be separated by a colon (The IP address range is G.729AB Multicast 224.0.0.0 to 239.255.255.255, and the port number iLBC is preferably set between 1024 and 65535) opus...
Page 72: Security >> Trust Certificates
Picture 53 - WEB filter Add and delete the allowed IP network segments; configure the start IP address in the start IP, configure the end IP address in the end IP, and then click [Add] to add successfully. You can set a large network segment or add it into several network segments.
Page 73: Security >> Device Certificates
Picture 54 - Trust Certificates Security >> Device Certificates 9.34 Select the default certificate or the custom certificate as the device certificate. You can upload and delete uploaded certificates. Picture 55 - Device Certificates...
Page 74: Security >> Firewall
Security >> Firewall 9.35 Picture 56 - Firewall Through this page, you can set whether to enable the input and output firewalls, and at the same time, you can set the input and output rules of the firewall. Use these settings to prevent malicious network access, or restrict internal users from accessing some resources of the external network, and improve safety.
Page 75: Device Log
255.255.255.255, it means it is a specific host. When it is set as a subnet mask of type 255.255.255.0, it means that the filter is a network segment; It is the destination address mask. When it is configured as 255.255.255.255, it means it is a specific host. When it is set as Dst Port Range a subnet mask of 255.255.255.0 type, it means that a network segment is filtered;...
Page 76 Picture 59 - Security Settings Table 33 - Security Settings Security Settings Parameters Description Basic Settings Ringtone Duration Set the ringtone duration, default value is 2 seconds. Set remote server address. The device will send message to the Input & Tamper server when the alarm is triggered.
Page 77 Enable or disable LOG Enable Logs Triggered by DTMF Select the DTMF trigger ring tone. Ring tone Triggered by URI Select the URI trigger ring tone. Ringtone Triggered By SMS Select the SMS trigger ring tone. Ringtone Triggered By Select the Dsskey trigger ring tone. Dsskey Ringtone Output Response Enable or disable Output Response...
Page 78 Select the input port, when the input port meets the trigger Trigger by Input condition, the output port will be triggered (The Port level time change, By < Output Duration > control) Select call state to trigger the output port, options are: Talking: When the device’s talking status changes, trigger the output port.
Page 79: Egs Setting >> Features
EGS Setting >> Features 9.38 Picture 60 - ESG Feature Settings You can set basic access control Settings on this screen Table 34 - ESG Feature Parameters Field Name Explanation Basic Settings Relay1 Mode Monostable: there is only one fixed action status for door unlocking. Bistable: there are two actions and statuses, door unlocking and door locking.
Page 80: Egs Setting >> Relay
Relay2Follow Independent: Open the door independently with Relay1 mode Synchronous: open the door at the same time as Relay1 Asynchronous: Relay1 opens after a period of time Relay2 opens Asynchronous The user can set the asynchronous door opening delay time of delay Relay1 and Relay2, the default is 1 second RFID card format Supported access control card format...
Page 81 Door Sensor1 Enable or disable door sensor 1 Door Sensor Door Sensor1 detection delay time setting,5 seconds by default Check Delay 1 Door Sensor2 Enable or disable door status sensor 2 Door Sensor Door Sensor2 detection delay time setting,5 seconds by default Check Delay 2 Lock Status 1 Door Close/Open...
Page 82 Import Card List Click the <Select> to choose to import remote card list file (cardlist.csv) and then clicking <Update> can batch import remote card rule. Add Card Rule Type Standard, namely to open the door card Add, swipe the added card administrator card in the standby mode, the device will enter the card add mode, and then swipe the card, the card that has not been added to the card list will be added Delete, swipe the added card delete administrator card in standby,...
Page 83 Field Name Explanation Import Password List Click the <Select> to choose to import remote password list file (passwordlist.csv) and then clicking <Update> can batch import remote password rule. Add Password Rule Local, that is, the local door opening password, enter the password dial Type interface in standby and enter the set opening password to open the door immediately...
Page 84 EGS Setting >> Time Profile 9.42 Picture 64 - Time Profile Table 38 - Time Profile Field Name Explanation Import time list Click the <Select> to choose to import remote Profile list file (timeProfileList.csv) and then clicking <Update> can batch import remote Period. Period Add Name Set the name of the time period...
Page 85 EGS Setting >> Logs 9.43 Picture 65 - Logs Table 39 - Logs Field Name Explanation Relay Relay Result Display the result of a single door opening (success or failure) Name The name of the person who opened the door Source Card number or password to open the door Type...
Page 86 10 Trouble Shooting When the device is not working properly, users can try the following methods to restore the device to normal operation or collect relevant information to send a problem report to the technical support mailbox. 10.1 Get device system information Users can obtain information through the [System] >>...
Page 87 problem appears, and then click the "end" button, "save" to the local for analysis or send the log to the technician to locate the problem. 10.6 Common Trouble Cases Table 40 - Trouble Cases Trouble Case Solution Device could not boot up 1. The device is powered by external power supply via power adapter or POE switch.
