DRILLING MACHINE
OPERATION INSTRUCTION
Before using be sure to read this instruction
-Z3--
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sieg Z3

  • Page 1 DRILLING MACHINE OPERATION INSTRUCTION Before using be sure to read this instruction -Z3--...
  • Page 2: Important Safety Instruction

    IMPORTANT SAFETY INSTRUCTION READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS TOOL Operator COMMON SENSE AND CAUTION ARE FACTORS WHICH CANNOT BE BUILT INTO ANY PRODUCT. THESE FACTORS MUST BE SUPPLIED BY THE OPERATOR. PLEASE REMEMBER: When using electric tools, machines or equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.
  • Page 3: Grounding Instructions

    IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO NOT OPERATE THE TOOL! Grounding Instructions This machine has a three-prong plug, the third prong is the ground. Plug this cord only into a three-prong receptacle. Do not attempt to defeat the protection the ground wire provides by cutting off the round prong.

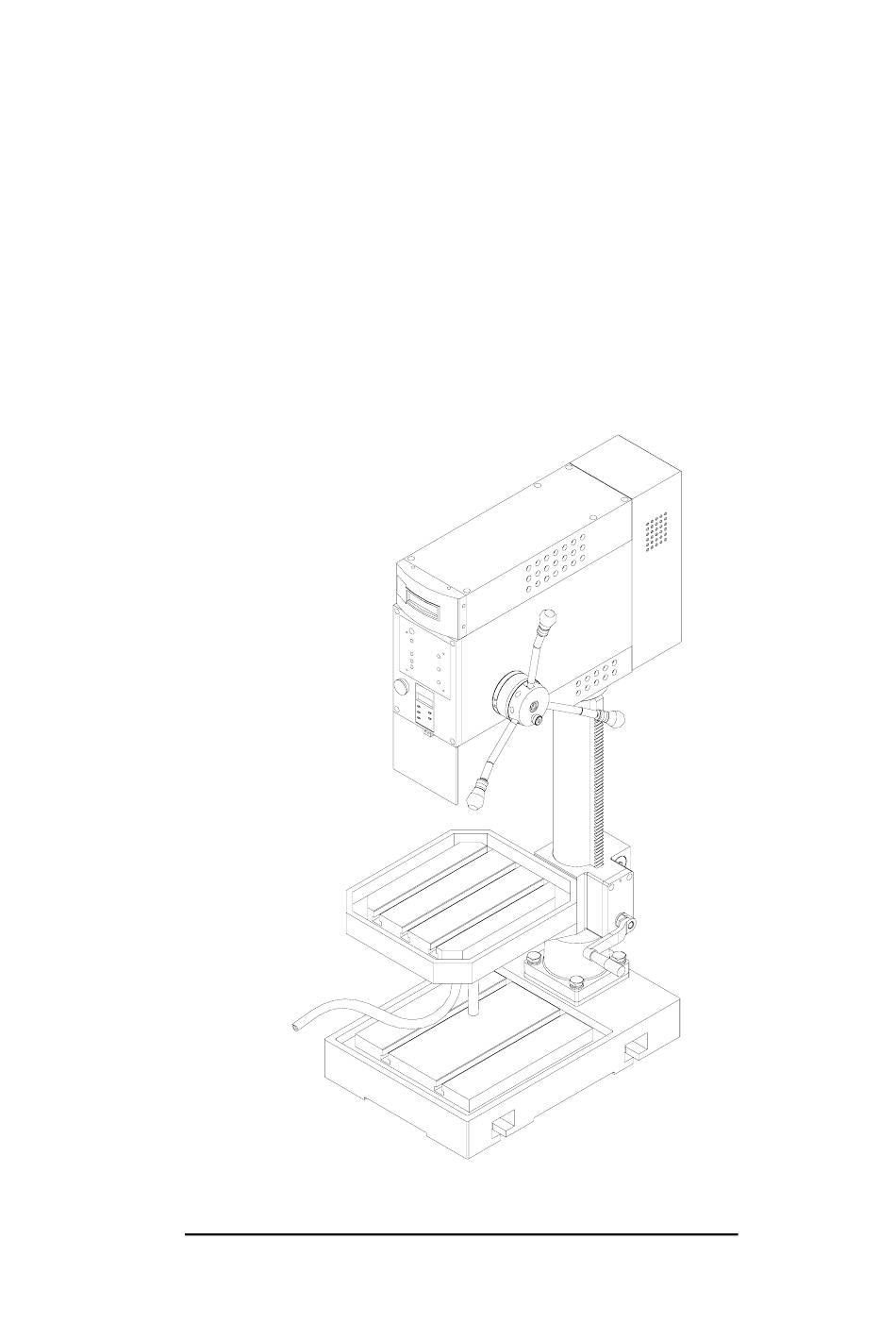

  • Page 4 FEATURE Cover Hose Spindle speed readout Base Operation panel Lift handle Feeding depth readout Lift stock Spindle Column Safety guard Rack Worktable Feeding handle Locking handle Electrical box...
  • Page 5 Application This drilling machine is both for drilling and tapping, widely used in different places. Fine exterior, wide range of speed and easy to use. Designed for industrial usage, drilling, tapping, reaming, steps and mill plane with metal and other material. Operation 1.
  • Page 6: Operation Panel

    Spindle speed readout Operation panel Spindle depth readout Operating steps 1. Insert the electric plug into its socket. Turn the power switch to ‘I’ position, the power indicator lights (green). 2. Release the Emergency stop switch by turning the round head of the switch, the Spindle speed readout shows ‘0000’.
  • Page 7: Flow Chart

    Notice: UThe highest spindle speed in REVERSE direction is a half of when in FORWARD direction. After using should turn the power switch to position ‘0’ and pull out the plug from socket. Flow chart...
  • Page 8 How to mount or take off the shank and drill chuck Take off If the shank and drill chuck is mounted on the machine, rotate the small hand wheel (1) 180,°the rotor shaft (2) will turn over and almost touch the block(3). Holding the drill chuck and push the spindle feeding handle upward (do not need too much strength), shank and drill chuck goes out.
  • Page 9 Parts drawing ( I )
  • Page 10 Parts drawing ( II )
  • Page 11: Parts List

    Parts list Description Q’ty Description Q’ty Taper shank Rotate shaft fastenss block Spindle Small rotate shaft Bearing 61907-LS Spring 5*5 Spline sleeve Washer (I) Tip shaft Key 8*32 Check ring 62 Bearing 51107 Cap screw M4*8 Bearing 6007-RS Cap screw M4*10 Flange cover Display Fixing block Cap screw M4*14...
  • Page 12 Description Q’ty Description Q’ty Switch fixed support Lock connect Nut M12 power line Small bolt main label Compress spring 0.5*5*10 Gear shaft Small tip shaft Key 5*10 Screw M4*8 Right support flange Speed show face plate Change switch seat Keep off piece Compress spring 0.6*5*22 Rotate speed display Small shaft...
  • Page 13 Parts list ( III ) Description Q’ty Description Q’ty 159 Screw M6*16 Bolt M10*30 160 Round pin B5*25 161 Oil cup 6 162 Bush 163 Bearing 51103 164 Washer 165 Small round nut M16*1.5 166 Rotate handle 167 Rotate handle M10*80 168 Move circle 169 bearing 51124 170 Beaing seat...
  • Page 14: Electric Diagram

    Electric diagram...
  • Page 15: Packing List

    Packing List Description Q’ty Remarks Drill chuck and key B18/JT6 L Hex. Wrench S:3,4,5,6,8 Tilted wedge Screw driver 3” Oil can Fuse Double end wrench: 14*17 Manual...
