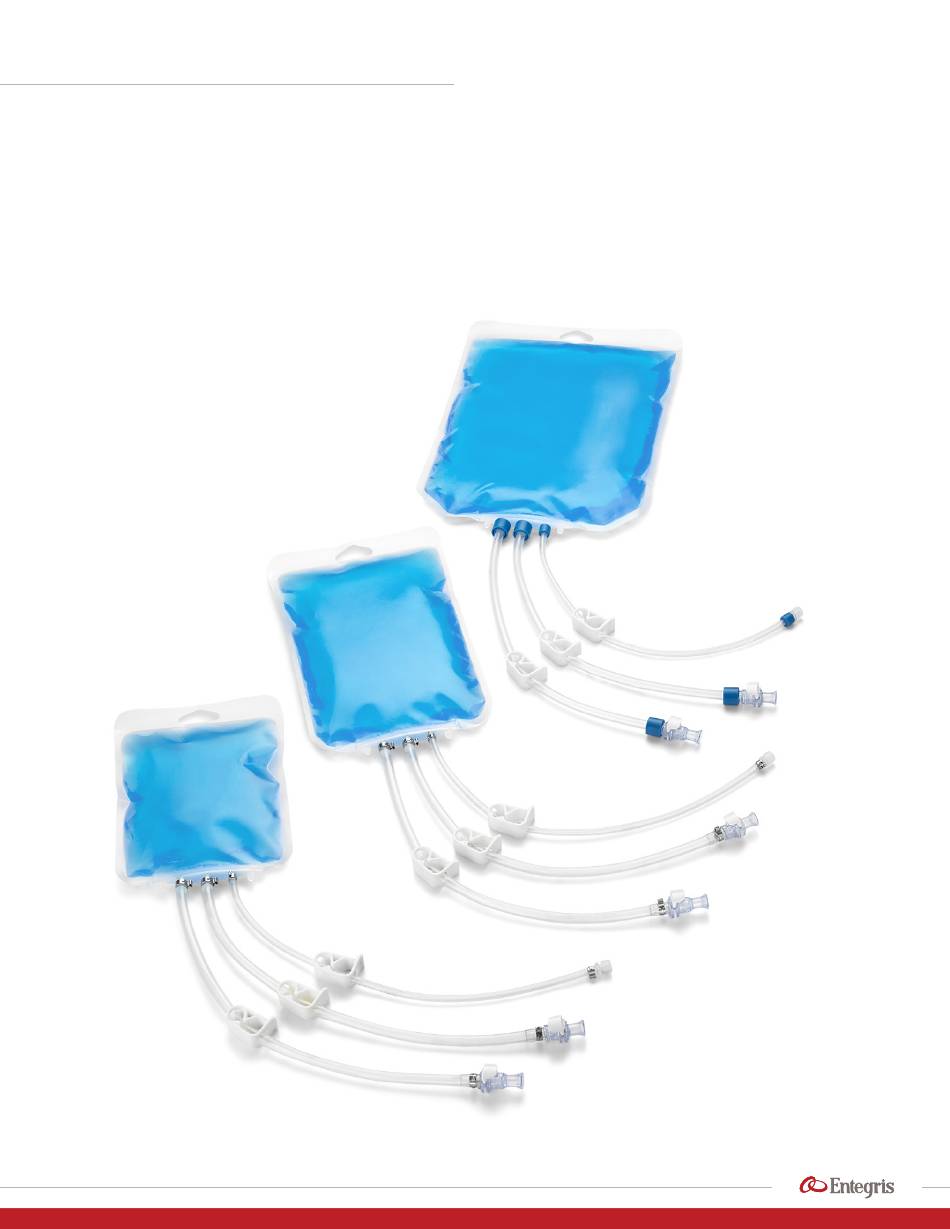

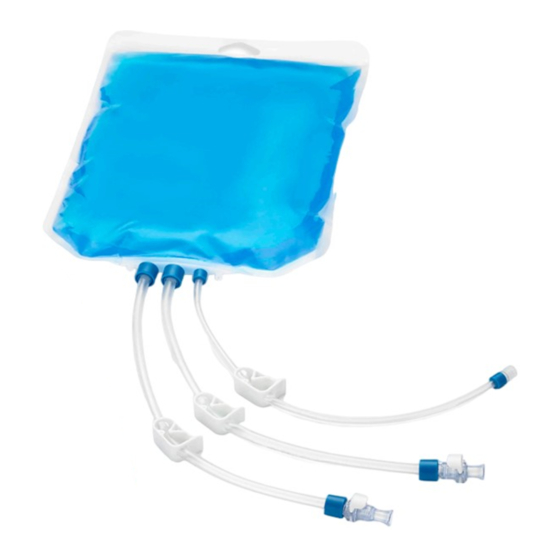

  • Page 1 ADVANCED MATERIALS HANDLING MANUAL Aramus Standard ™ Bag Assemblies User manual...

  • Page 2: Table Of Contents

    Ordering Information ........... 7 Aramus Standard Bag Assembly with RoSS ® Shell ............10 Specifications ..............11 Shipping ................. 12 Inspection ..............12 Assembly Instructions ..........12 Ordering Information ..........14 User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 3: Introduction

    • Please note that the user shall be solely responsible and liable for validation and use of Aramus bags beyond the range of our specifications for unit operations, applications, and process parameters. User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 4: Aramus Standard Bag Subassemblies

    To open the outer bag, grip the side of the protective packaging bag and use the “easy Entegris offers the Aramus bag assembly in a sub- tear" notches (see Figure 2) to pull in opposite direc- assembly configuration; meaning without tubing, tions, allowing the top section and main body of connectors, or sterilization.

  • Page 5: Removing The Full Aramus Assembly From Its Packaging

    Figure 4. ARAMUS STANDARD BAG ASSEMBLIES — Entegris offers the Aramus bag in a full assembly with your desired configuration of tubing and connectors, delivered sterilized with a Sterility Assurance Level (SAL) of 10...

  • Page 6: Storage, Handling, And Shipping

    C-Flex tubing, platinum-cured silicone ® tubing, BarbLock ® , and pinch clamps Oetiker http://www.oetiker.com/ Stepless ® clamps Nordson Medical http://www.nordsonmedical.com/ Luer connections AdvantaPure http://www.advantapure.com/ AdvantaFlex and AdvantaSil tubing ® ® User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 7: Configurations

    Rod (5 L, 10 L, 20 L, and 50 L*) Note: See Ordering Information for the standard part numbers available; customization available upon request. *Not a standard product, but is available upon request. User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 8: Ordering Information

    2D = 2D bag Product family SU = Single-use Notes: Assemblies sold sterilized. Assembly temperature performance is component-dependent. Assemblies are individually double-bagged. *Not a standard product, but is available upon request. User Manual | Rev. B 03/20 | Entegris, Inc.
  • Page 9 2D = 2D bag Product family SU = Single-use Notes: Assemblies sold sterilized. Assembly temperature performance is component-dependent. Assemblies are individually double-bagged. *Not a standard product, but is available upon request. User Manual | Rev. B 03/20 | Entegris, Inc.
  • Page 10 0005 = 5 L SU = Single-use 0010 = 10 L Note: Subassemblies sold unsterilized. 0020 = 20 L *Not a standard product, but is available upon request. 0050 = 50 L* User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 11: Aramus Standard Bag Assembly With Ross ® Shell

    CAUTION: Failure to confirm fit for use under the customer’s requirements may result in product failure. NOTE: Additional accessories such as foam inserts may be necessary to ensure consistent freezing at different fill volumes. User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 12: Specifications

    (14.1" × 25.3" × 2.0") (16" × 27.7" × 2.0") (19.8" × 34.8" × 2.0") Contact Entegris technical support if you have questions regarding this information, and to confirm you have the most up-to-date version. WARNINGS Aramus Bag Assembly • Do not handle or carry the bags by the tubing •...

  • Page 13: Shipping

    Keep the lid fully removed and stored in a horizontal position until step 5. User Manual | Rev. B 03/20 | Entegris, Inc.
  • Page 14 To thaw, store the RoSS system at ambient tempera- ture on a bench or table. Thawing can be accelerated using a fan. Thawing can also be done in a plate freezer, refer to manufacturer’s recommended procedures. User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 15: Ordering Information

    Compatible Aramus bag assembly SU-FS-0001-01 SU-FS-0002-01 SU-FS-0005-01 SU-FS-0010-01 10 L SU-FS-0020-01 20 L Cryo Control Unit (CCU) Part number Compatible Aramus bag assembly SU-CC-0001-01 SU-CC-0002-01 SU-CC-0005-01 SU-CC-0010-01 10 L SU-CC-0020-01 20 L User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 16: Aramus Standard Bag Assembly With Cassettes

    Optimal fill volumes and ranges should be deter- mined by the customer for each individual product, freezing method, freezer type, and profile. CAUTION: Failure to confirm fit for use under the customer’s requirements may result in product failure. User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 17: Specifications

    (8.4" x 6.3" x 0.8") (11.9" x 6.2" x 0.9") (12.0" x 7.5" x 0.91") Contact Entegris technical support if you have questions regarding this information, and to confirm you have the most up-to-date version. WARNINGS Aramus Bag Assembly Cassette •...

  • Page 18: Shipping

    Step 2: Fill and Insert Aramus Bag Assembly Place filled, Aramus bag into cassette. Orient any connected tubing, clamps, and connectors as shown to fit into the cassette. Ensure no components are raised above the cassette’s side walls. User Manual | Rev. B 03/20 | Entegris, Inc.
  • Page 19 Be sure to slide the cassette com- pletely inside the rack, and lock if applicable, before immersing in liquid nitrogen vapor. CAUTION! Always use cryogenic gloves when handling cassettes or racks in low temperatures. User Manual | Rev. B 03/20 | Entegris, Inc.

  • Page 20: Ordering Information

    Entegris can provide no assurance that the Special Products will operate uninterrupted or error free. b) Entegris can provide no assurance that it will be able to support the Special Products after sale, that it will commercially introduce the Special Products, that...

  • Page 21: Limited Warranty

    LIMITED WARRANTY Entegris' products are subject to the Entegris, Inc. General Limited Warranty. To view and print this information, visit entegris.com and select the Legal & Trademark Notices link in the footer. Entegris does not warrant any failure in the case of customers using unapproved foreign components.
