PSL K1255 User Manual

Welcome to use the controller. It is an advanced unit for its size and function. We recommend that you take time to read this manual fully
before you attempt to use the controller. It has 4 channel outputs, 16 patterns can be selected in AUTO mode or MUSIC mode. Other
functions: Full on and Stand By can be set. The microphone sensibility, input audio and speed of chase can be adjusted.

Technical Specifications

Control power input
User power input
Output
Fuse
Input music level
Chase speed
Dimension
Weight

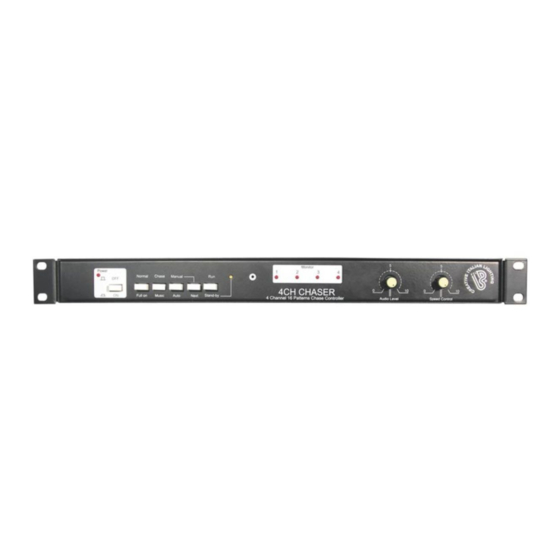

front
rear
1. Power indicator
2. Power switch
3. Full-on /normal selector
4. Music/Chase selector
5. Auto/Manual mode selector
6. Next (pattern selector in manual)
7. Stand By/ Run
8. Stand By indicator

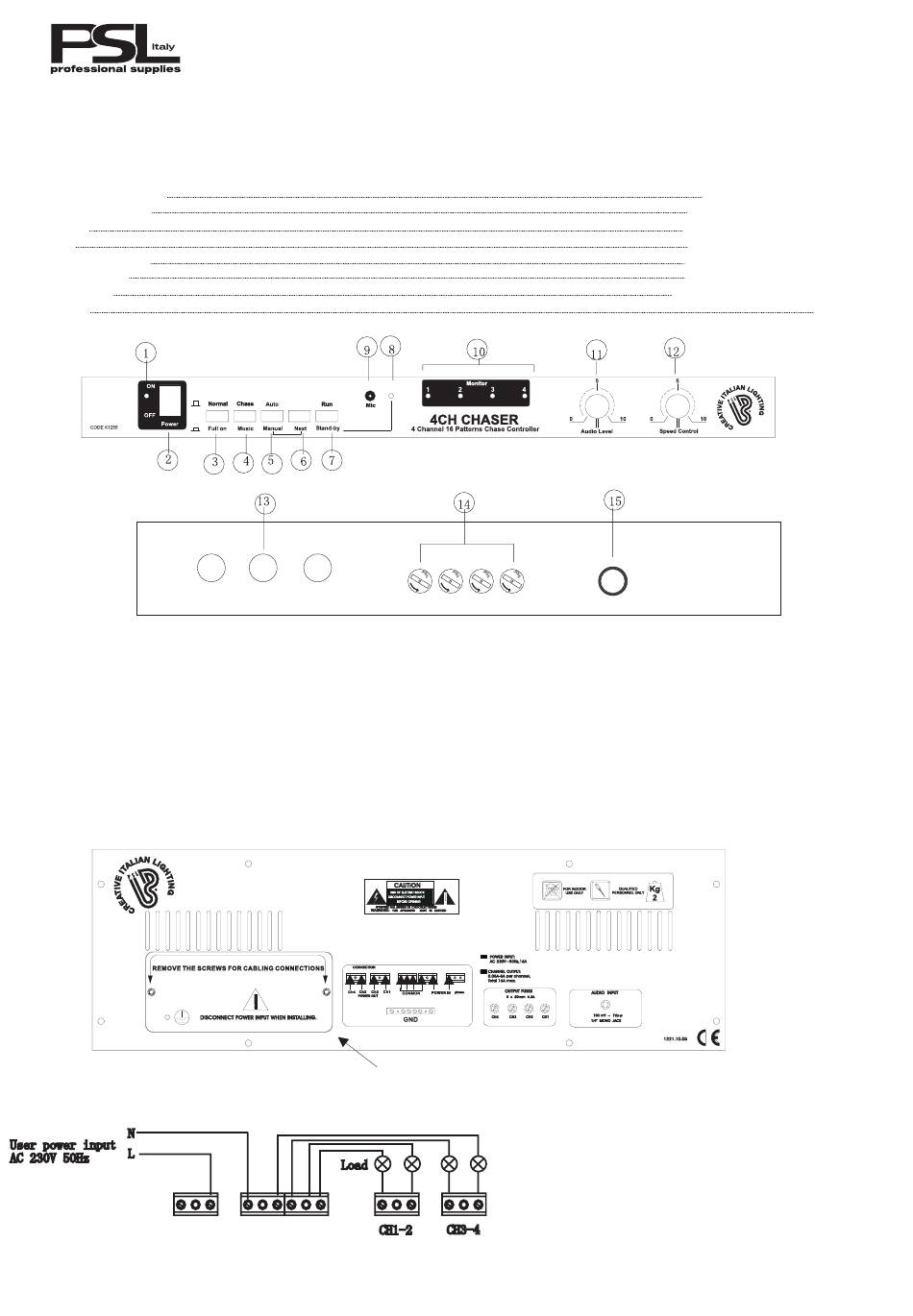

Connection diagram

4CH CHASER - user's manual
Code K1255
Remove this cover for the cabling connection
PSL - ITLAY
9. MIC
10. Ch1-4 output indicator
11. Adjuster knob of music
12. Adjuster knob of chase speed
13. Spiles
14. Fuse holder
15. Input audio
CAUTION
User power input: 230Vac 50/60Hz.
Do not apply power source before completely installation.
Always disconnect from mains before replacing the fuse.
To reduce risk of fire or electrical shock, do not expose to rain
or moisture.
Do not try to repair it when the circuit is out of order. Send it
back to the supplier for repairing.
230Vac 50Hz, 200mA
230Vac 50Hz, 16A max.
5A per channel, total 16A
F6,3A 250Vac, 5x20mm
100mV--1Vpp, jack mono
0,5--30 times per second
483 x 138 x 44 (1 rack unit)
1,9Kg
