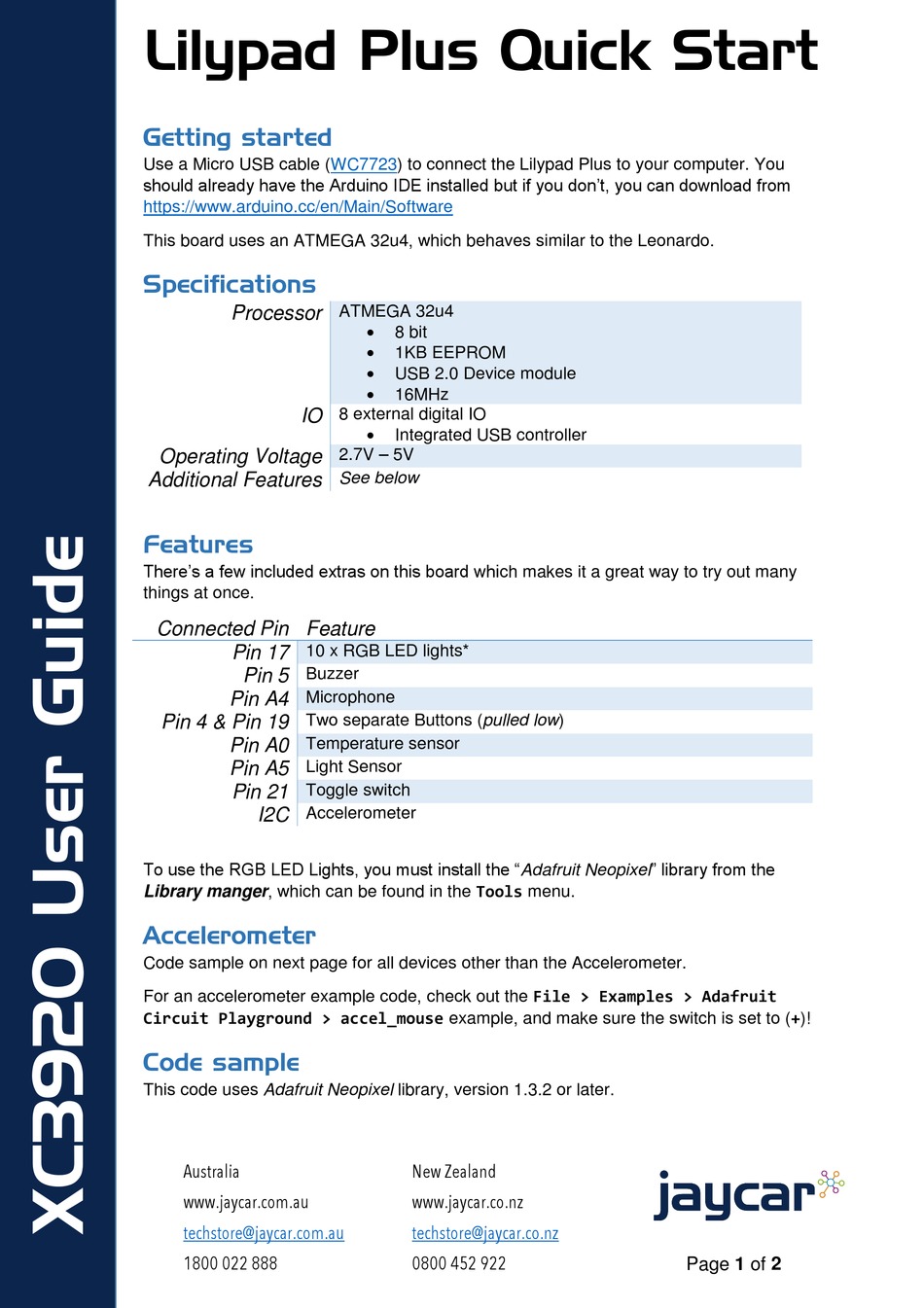

Lilypad Plus Quick Start

Getting started

Use a Micro USB cable (WC7723) to connect the Lilypad Plus to your computer. You
should already have the Arduino IDE installed but if you don't, you can download from
https://www.arduino.cc/en/Main/Software
This board uses an ATMEGA 32u4, which behaves similar to the Leonardo.

Specifications

Processor
IO
Operating Voltage
Additional Features

Features

There's a few included extras on this board which makes it a great way to try out many
things at once.
Connected Pin Feature
10 x RGB LED lights*
Pin 17
Buzzer
Pin 5
Microphone
Pin A4
Two separate Buttons (pulled low)
Pin 4 & Pin 19
Temperature sensor
Pin A0
Light Sensor
Pin A5
Toggle switch
Pin 21

Accelerometer

I2C
To use the RGB LED Lights, you must install the "Adafruit Neopixel" library from the
Library manger, which can be found in the Tools menu.
Accelerometer
Code sample on next page for all devices other than the Accelerometer.
For an accelerometer example code, check out the File > Examples > Adafruit
Circuit Playground > accel_mouse example, and make sure the switch is set to (+)!

Code sample

This code uses Adafruit Neopixel library, version 1.3.2 or later.
Australia
www.jaycar.com.au
techstore@jaycar.com.au
1800 022 888
ATMEGA 32u4

8 bit

1KB EEPROM

USB 2.0 Device module

16MHz
8 external digital IO

Integrated USB controller
2.7V – 5V
See below
