Model 0600K
Pull Side Mounting
Magnet
930105 120VAC
930106 24VAC/DC
Holder Cover
550106-*(non-detectored)
Closer Cover
233069K*
Right Hand Shown
General Information:
Non Handed
Door Hanging Means:
• Standard 4", 4-1/2", or 5" Butt Hinges
• 3/4" Offset Pivot
• Swing Clear Hinges
• For other means, contact factory
ISFM0600
A Fire/Life Safety Holder/Closer Product
*85° thru 135° Maximum Degree of Swing
Single Point Hold Open
Not for Use on Doors that will be
Manually Closed on a Daily Basis
Holder Assembly (includes magnet)
550100
120VAC
550101
24VAC/DC
Closer Body
85010163-*
Screw
550035
230052
01844016
02344010-602
01030
06344008
02398206
02346204
2" Minimum head frame
For frame face sizes less than 2", contact factory
Maximum reveal 1/8"
*See chart for greater degree of swing

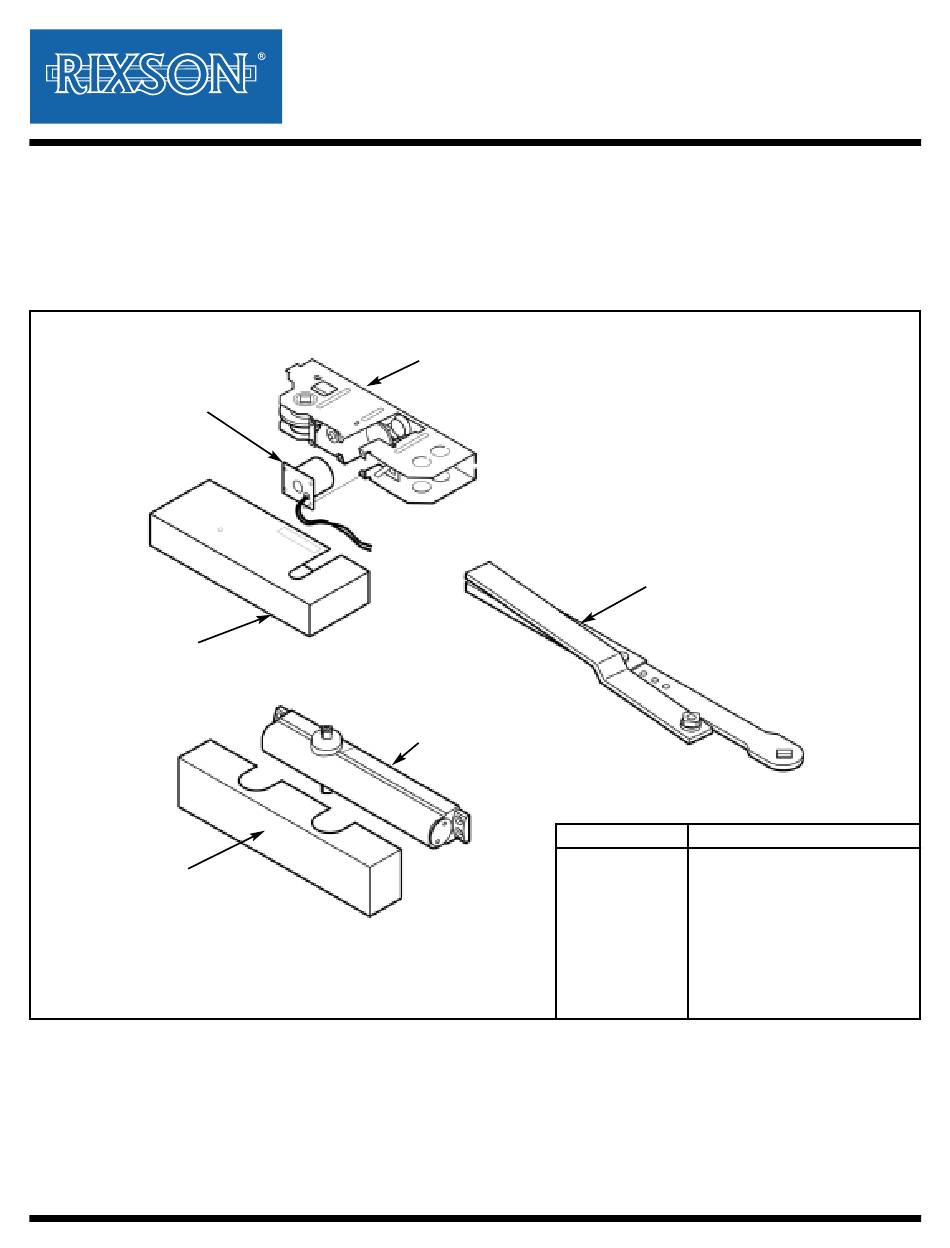

SMOK-CHEK V
Pull Side Arm
550120K*
Description
SPDL Spacer (2)
FLHD Comb 1/4-20 x 1-1/4 (4)
1/4-20 x 1 FLH Allen (1)
Pan HD 1/4-20 x 5/8 (4)
Washer (1)
FLHD 1/4-20 x 1/2 (1)
Pan HD Type AB #8 x 3/8 (1)
Cover Screw (2)
