State 10/2022 Version V1.0
Technical Manual

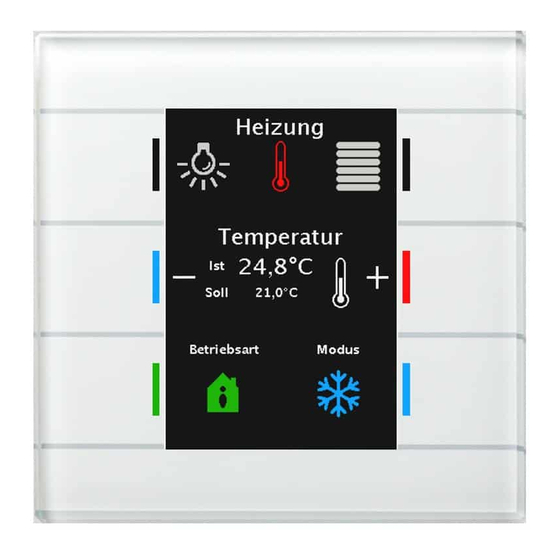

MDT Glass Push-button II Smart
MDT Push-button Smart 86
BE-GT20W.02
BE-GT20S.02
BE-GT2TW.02
BE-GT2TS.02
Further Documents:
Datasheet:
https://www.mdt.de/EN_Downloads_Datasheets.html
Assembly and Operation Instructions:
https://www.mdt.de/EN_Downloads_Instructions.html
Solution Proposals for MDT products:
https://www.mdt.de/EN_Downloads_Solutions.html
Functional Overview:
https://www.mdt.de/en/for-professionals/downloads/functional-overview.html
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
BE-TAS86.02
BE-TAS86T.02
