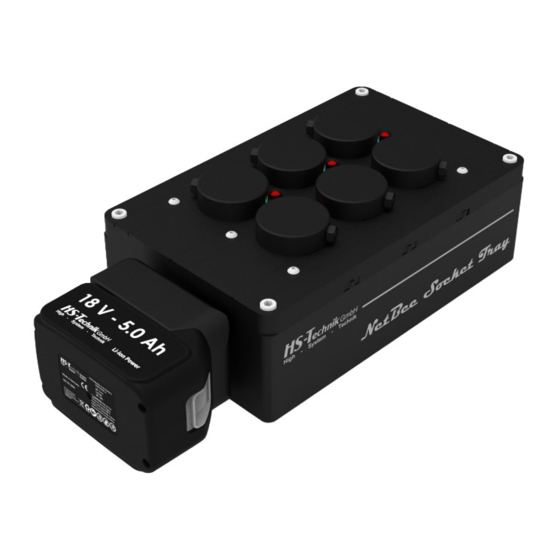

Summary of Contents for HS-Technik NetBee Socket Tray

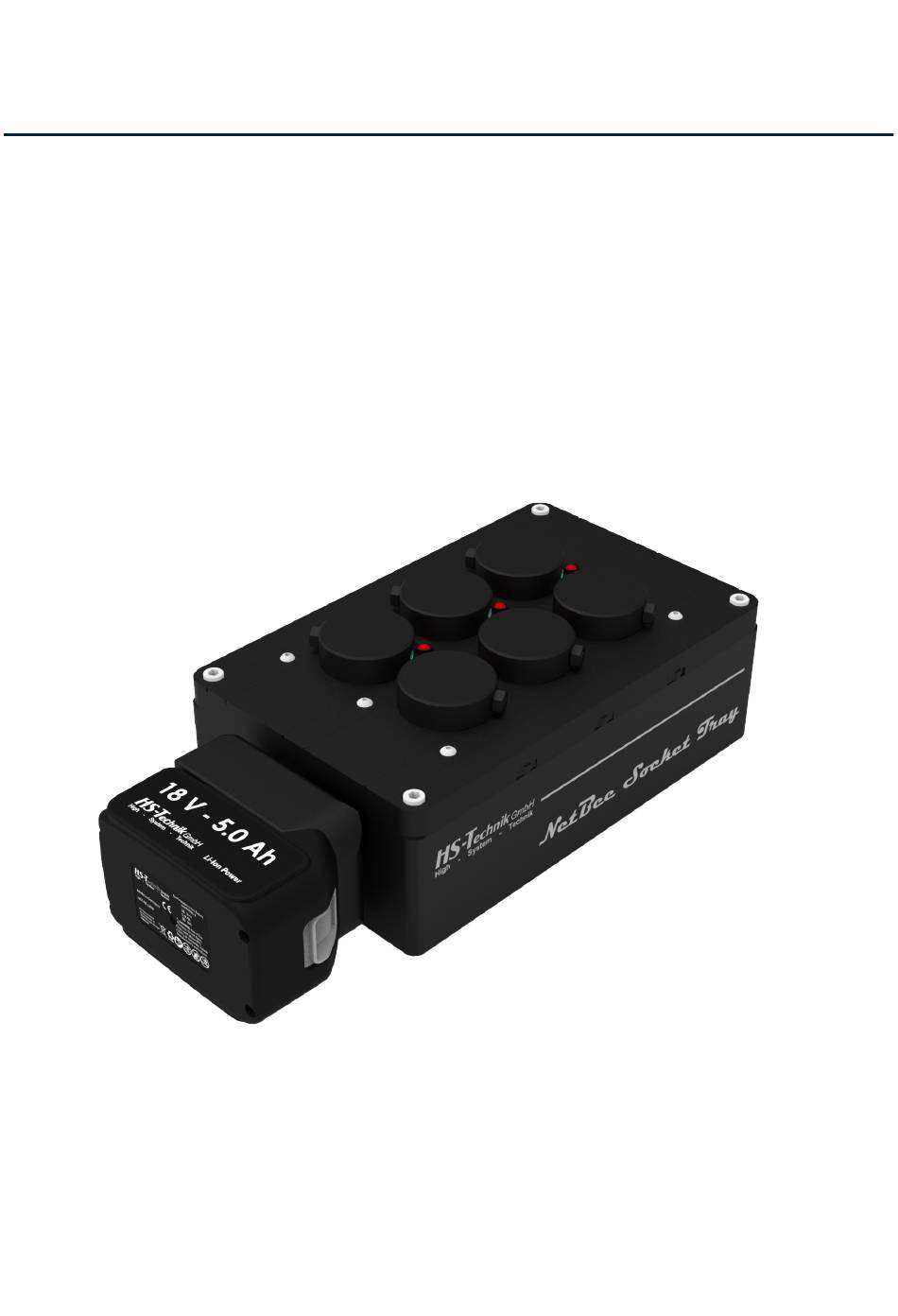

- Page 1 OPERATING INSTRUCTIONS NetBee - Original operating instructions - NetBee Socket Tray Issue date: October 2022...
-
Page 2: Table Of Contents
Table of contents 1 Operating principles NetBee Product Safety Reference documents Warranty Safety 2 Specifications Technical Dimensions / Weight Environmental 3 Function Models Equipment configuration Main parts 4 NetBee Socket Tray Configuration 5 NetBee Socket Tray Maintenance - 2 -... -
Page 3: Operating Principles
Our technical support and our technicians would be happy to assist you. This manual is a complete guide for the NetBee Socket Tray, describing how to use. - 3 -... -
Page 4: Netbee Product Safety
Before using the product, read the NetBee Socket Tray Product Safety manual and strictly follow the safety instructions. Reference documents To have a complete view of the NetBee Socket Tray applications, refer also the following HS-Technik GmbH documents: • NetBee Product Safety •... -
Page 5: Specifications
- Pin 4: GND Power Supply connector view from outside Canbus connector view from outside The mating connectors are delivered with the NetBee Socket Tray. Models WiFi Rechargeable battery (HST-PR-1850 18 V 5.0 Ah, Li-Ion) for models WiFi. Battery last for at least 8 hours. -
Page 6: Dimensions / Weight
Dimensions / Weight Dimensions are in millimeters. Customized NetBee Socket Tray versions may have different dimensions. NetBee Socket Tray WiFi 6/8 sockets Model Weight NetBee-ST6-39-W 302 mm 4.0 kg NetBee-ST6-50-W 302 mm 4.0 kg NetBee-ST8-39-W 402 mm 5.2 kg - 6 -... -
Page 7: Environmental
NetBee Socket Tray CANBUS / Ethernet Model Weight NetBee-ST6-39 240 mm 110 mm 260 mm 3.8 kg NetBee-ST6-50 240 mm 110 mm 260 mm 3.8 kg NetBee-ST8-39 340 mm 110 mm 360 mm 5.0 kg Environmental The following conditions must be observed during operation: •... -
Page 8: Function
3 Function The NetBee Socket Tray is designed to manage the sockets used on tools and wrenches. Operation mode: • All the sockets must be present on the tray. • Only one socket must be taken at a time, according to the parameter (socket number) of the tightening operation. - Page 9 The NetBee Socket Tray connected to NetBee via WiFi The NetBee Socket Tray connected via WiFi The NetBee Socket Tray connected to NetBee via Ethernet The NetBee Socket Tray connected via Ethernet The NetBee Socket Tray connected to NetBee via Canbus...
-
Page 10: Models
Models The NetBee Socket Tray can be delivered in the versions: WiFi: Wireless communication, working with: • NetBee Ethernet: Ethernet communication • NetBee Canbus: Canbus interface (for NetBee only), working with: • NetBee Sockets configuration can be: • 6 sockets 39 mm •... -
Page 11: Equipment Configuration
Equipment configuration 1. Sockets 2. LED (one per socket) 3. Sensor position adjustment - 11 -... -
Page 12: Main Parts
LED BLINK: Indicates the socket that must be used for the tightening program. When the NetBee Socket Tray is switched on, the LEDs are activated in sequence. The position of the sensor can be adjusted to suit the sockets used:... - Page 13 Grain and nut To remove the caps, remove the 4 screws and pull the bars: Screw Screw Screw Screw - 13 -...
- Page 14 The grain and nut are used to provide friction to the socket used, especially in applications where the socket tray is mounted on a moving cart. Socket Screw and nut Battery For NetBee Socket Tray WiFi version only, which is powered by external battery Battery - 14 -...
- Page 15 Ethernet port For NetBee Ethernet Canbus interface For NetBee Socket Tray version Canbus, this connector is available Canbus connector See the Technical chapter for more information about pinout of the connector. Power supply For Ethernet and Canbus versions only Power supply See the Technical chapter for more information about pinout of the connector.
-
Page 16: Netbee Socket Tray Configuration
4 NetBee Socket Tray Configuration The NetBee Socket Tray, when first received, must be configured to work in the specific network of the user (not for Canbus models). The NetBee Socket Tray are configured, by default, as following: NetBee Socket Tray WiFi: •... - Page 17 NetBee Socket Tray WiFi Configuration Switch off the NetBee Socket Tray and open the chassis, removing the 4 screws: Screw Screw Screw Screw Set the internal DIP switches to ON: switches - 17 -...
- Page 18 Switch on the NetBee Socket Tray. With the configuration software above, set the new network parameters and save. Switch off the NetBee Socket Tray. Set the DIP switches to OFF: Close the NetBee Socket Tray chassis with the 4 screws.
- Page 19 The NetBee Socket Tray does not require a specific maintenance. Keep the NetBee Socket Tray clean and verify the LEDs are working when the NetBee Socket Tray is powered on. For WiFi models, refer to the battery manufacturer manuals for battery instructions and maintenance.
- Page 20 HS-Technik GmbH Im Martelacker 12 D-79588 Efringen-Kirchen Telephone: +49 (0)7628 - 91 11-0 Fax: +49 (0)7628 - 91 11-90 E-Mail: info@hs-technik.com Internet: www.hs-technik.com...
