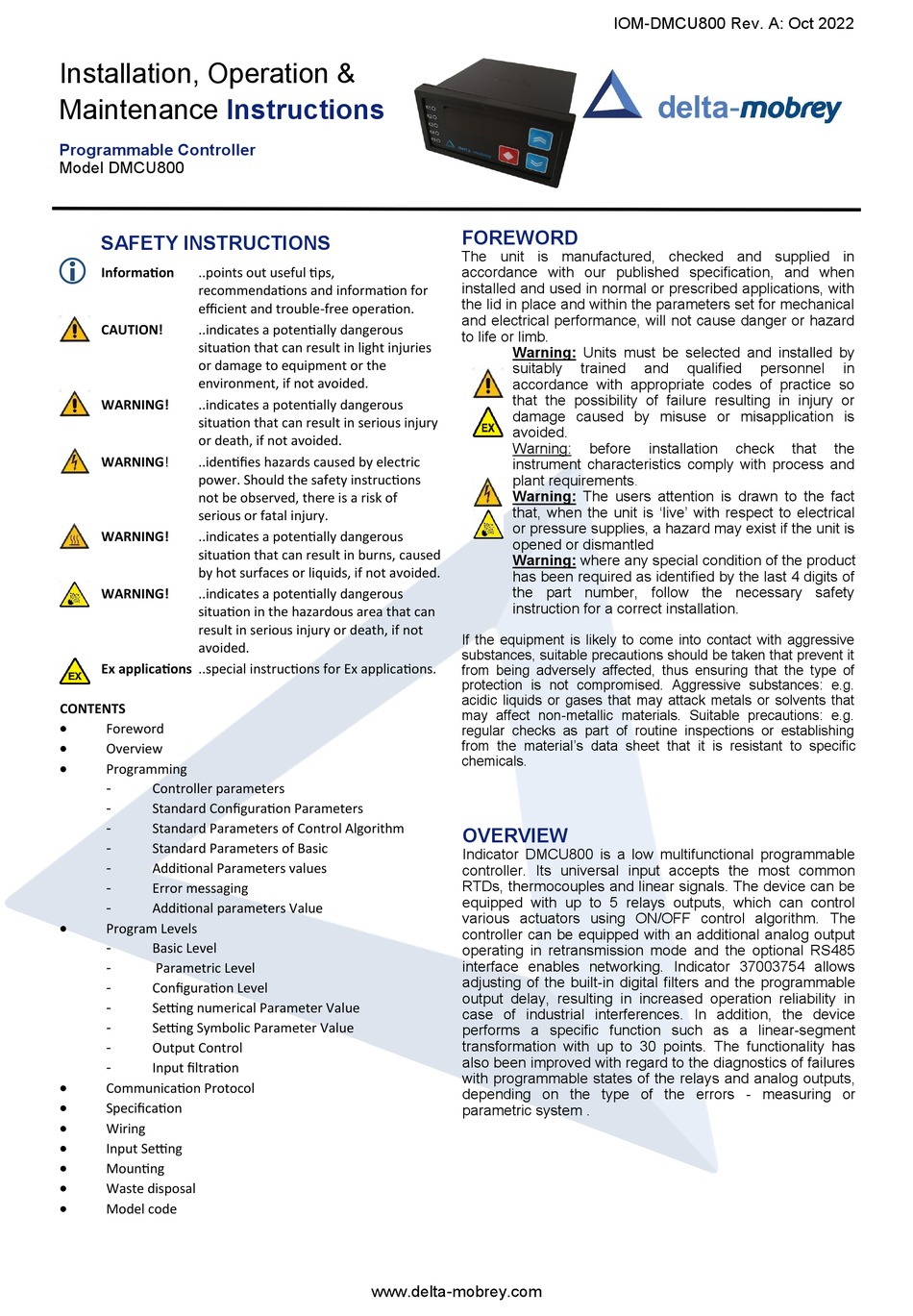

Installation, Operation &
Maintenance
Instructions
Programmable Controller
Model DMCU800
SAFETY INSTRUCTIONS
Information
..points out useful tips,
recommendations and information for
efficient and trouble-free operation.
CAUTION!
..indicates a potentially dangerous
situation that can result in light injuries
or damage to equipment or the
environment, if not avoided.
WARNING!
..indicates a potentially dangerous
situation that can result in serious injury
or death, if not avoided.
WARNING!
..identifies hazards caused by electric
power. Should the safety instructions
not be observed, there is a risk of
serious or fatal injury.
WARNING!
..indicates a potentially dangerous
situation that can result in burns, caused
by hot surfaces or liquids, if not avoided.
WARNING!
..indicates a potentially dangerous
situation in the hazardous area that can
result in serious injury or death, if not
avoided.
Ex applications ..special instructions for Ex applications.
CONTENTS
•
Foreword
•
Overview
•
Programming
-
Controller parameters
-
Standard Configuration Parameters
-
Standard Parameters of Control Algorithm
-
Standard Parameters of Basic
-
Additional Parameters values
-
Error messaging
-
Additional parameters Value
•
Program Levels
-
Basic Level
-
Parametric Level
-
Configuration Level
-
Setting numerical Parameter Value
-
Setting Symbolic Parameter Value
-
Output Control
-
Input filtration
•
Communication Protocol
•
Specification
•
Wiring
•
Input Setting
•
Mounting
•
Waste disposal
•
Model code
FOREWORD
The unit is manufactured, checked and supplied in
accordance with our published specification, and when
installed and used in normal or prescribed applications, with
the lid in place and within the parameters set for mechanical
and electrical performance, will not cause danger or hazard
to life or limb.
Warning: Units must be selected and installed by
suitably
accordance with appropriate codes of practice so
that the possibility of failure resulting in injury or
damage caused by misuse or misapplication is
avoided.
Warning:
instrument characteristics comply with process and
plant
Warning: The users attention is drawn to the fact
that, when the unit is 'live' with respect to electrical
or pressure supplies, a hazard may exist if the unit is
opened or dismantled
Warning: where any special condition of the product
has been required as identified by the last 4 digits of
the part number, follow the necessary safety
instruction for a correct installation.
If the equipment is likely to come into contact with aggressive
substances, suitable precautions should be taken that prevent it
from being adversely affected, thus ensuring that the type of
protection is not compromised. Aggressive substances: e.g.
acidic liquids or gases that may attack metals or solvents that
may affect non-metallic materials. Suitable precautions: e.g.
regular checks as part of routine inspections or establishing
from the material's data sheet that it is resistant to specific
chemicals.
OVERVIEW

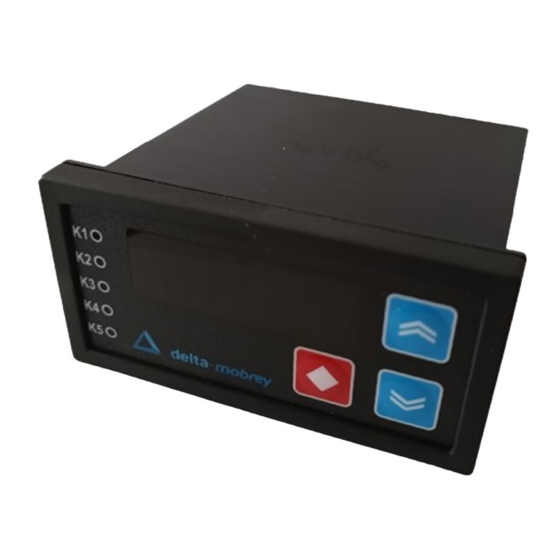

Indicator DMCU800 is a low multifunctional programmable
controller. Its universal input accepts the most common
RTDs, thermocouples and linear signals. The device can be
equipped with up to 5 relays outputs, which can control
various actuators using ON/OFF control algorithm. Тhe
controller can be equipped with an additional analog output
operating in retransmission mode and the optional RS485
interface enables networking. Indicator 37003754 allows
adjusting of the built-in digital filters and the programmable
output delay, resulting in increased operation reliability in
case of industrial interferences. In addition, the device
performs a specific function such as a linear-segment
transformation with up to 30 points. The functionality has
also been improved with regard to the diagnostics of failures
with programmable states of the relays and analog outputs,
depending on the type of the errors - measuring or
parametric system .
www.delta-mobrey.com
IOM-DMCU800 Rev. A: Oct 2022
trained
and
qualified
before
installation
requirements.
personnel
in
check
that
the
Advertisement
Summary of Contents for delta-mobrey DMCU800
- Page 1 Standard Configuration Parameters Standard Parameters of Control Algorithm OVERVIEW Standard Parameters of Basic Indicator DMCU800 is a low multifunctional programmable Additional Parameters values controller. Its universal input accepts the most common RTDs, thermocouples and linear signals. The device can be...
- Page 2 IOM-DMCU800 Rev. A: Oct 2022 PROGRAMMING Controller parameters The device is a programmable device whose service behavior is determined by a set of parameters. All the parameters, along with their names, symbols, and value ranges, are given in Table 1 below...
- Page 3 IOM-DMCU800 Rev. A: Oct 2022 Below the list of all the standard parameters: Error Messaging Standard Configuration Parameters In some cases, the device finds non-conformities in parameter values that must be corrected before These parameters are part of the configuration level operating at Basic level.
- Page 4 IOM-DMCU800 Rev. A: Oct 2022 Additional Parameters Values This version with 5 contact, has additional parameters that can be settled in different levels: CONFIGURATION (ConF), TRANSFORMATION TABLE (tRtb), CONTROL ALGORITHM (Par), ACCESS CONTROL PARAMETERS, BASIC CALIBRATION (cAL). See below: Parameter...
- Page 5 IOM-DMCU800 Rev. A: Oct 2022 PROGRAM LEVELS • To enter parameter value adjustment mode for Set Point 2, follow the same procedure, but start Program levels are shown below with the key until %[2 appears on the Basic Level display.
- Page 6 IOM-DMCU800 Rev. A: Oct 2022 Setting symbolic parameter value Output pulse mode When a relay is forced to ON by the control • Enter parameter value adjustment mode algorithm, it can either stay ON or pulse (see 'Program Levels'). depending on Time On and Time Off parameter •...
- Page 7 IOM-DMCU800 Rev. A: Oct 2022 COMMUNICATION PROTOCOL * Input value (read-only) Protocol architecture numerical value with ISU - measured input value The protocol is based on UART protocol with: sat.lo - ADC under range • Baud Rate - as defined by parameter : Baud Rate.
- Page 8 IOM-DMCU800 Rev. A: Oct 2022 WIRING INPUT SETTING Input signal wiring • Open the case. Connect the input with regard to its type • Follow the below diagrams to find the through the respective and depending on the case configuration jumpers J1 and J2, located on...
- Page 9 IOM-DMCU800 Rev. A: Oct 2022 MOUNTING WASTE DISPOSAL Panel mounting • Place THE Device into an appropriate panel Do not dispose of electronic devices cut-out. together with household waste • Tighten it into place using material! the enclosed mounting bracket(s).
