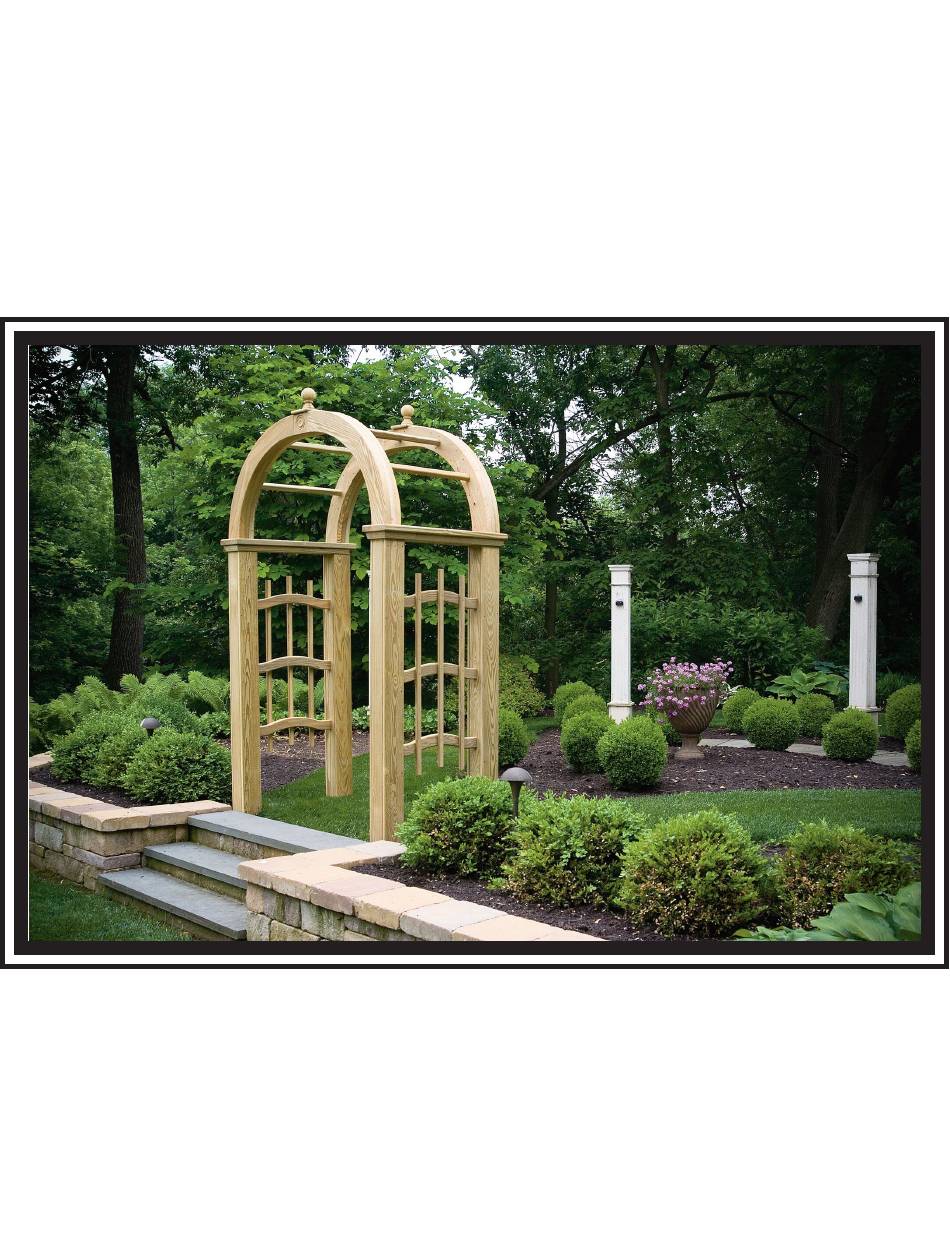

- Page 1 Mt. Vernon Arbor Assembly Manual...
- Page 2 Mt. Vernon Arbor Assembly Manual Thank you for your purchase of this arbor. This manual is designed to simplify the assembly process. Please read through the entire manual before starting! Take a deep breath and get at it; the satisfaction and enjoyment of this arbor is only a few minutes away. Have fun! You have purchased a product that consists of bulky pieces.
- Page 3 Parts List 2 Finials 2 Arbor sides 2 Arches 2 Caps 5 Spindles 2 Arch Plates...
- Page 4 Mt. Vernon Arbor Assembly Manual Step:1 Step:2 Gently tap 5 spindles into one arch. Place remaining arch on top of spindles. Step:3 Step:4 33.5” Align spindles and gently tap on top of Fasten spindles to arch using 2.5" screws arch. Spacing on outside of arches provided.
- Page 5 Mt. Vernon Arbor Assembly Manual Step:7 Step:8 Fasten plate to arch using 2.5" screws provided, Repeat step #7 on opposite side. while making sure plate remains aligned. Holes are pre-drilled on plate. Step:9 Step:10 You are now ready to install caps and finials.
- Page 6 Mt. Vernon Arbor Assembly Manual Step:13 Step:14 Center top plate of arbor side on arch plate and Repeat step #13 on opposite side. fasten using 2.5" screws provided. Holes are pre-drilled on arbor side top plate. Step:15 Congratulations! Your arbor is now complete.
