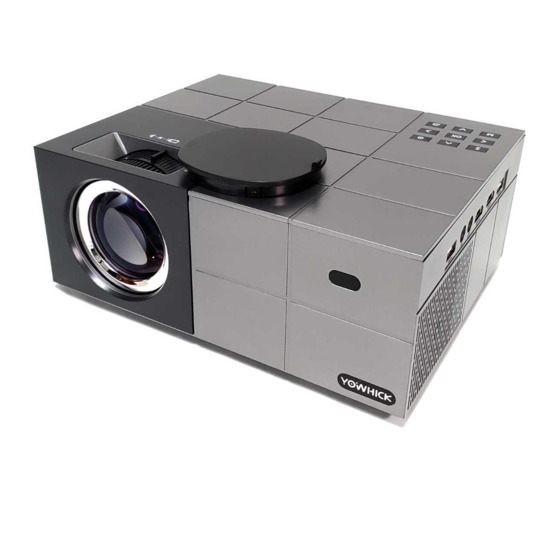

Summary of Contents for YOWHICK GDP1W
-
Page 5: Packing List
10. Please use the original packaging foam or other anti-shock material when relocating the projector. 11. Please contact the YOWHICK customer support team if you encounter any problem with the projector. 12. This projector is covered by the YOWHICK 24-month warranty. -
Page 6: Remote Control
REMOTE CONTROL 1 . Power On/Off 2. Pause/Play © 3. Rewind 4. Mute ® 5. Fast Forward 6. Left/Right/Up/Down 7. Confirm 8. Return 9. Menu 10. Signal ill) 11. Volume- 12. Volume+ Tip:ln screen projection mode, press ond hold " @ "1.5 seconds and release the button then can return to the main menu. -
Page 7: Projector Overview
PROJECTOR OVERVIEW Focus Key Keystone Correctfon -· ' riiiial Audio Output l..iiiii ----: � USB2 :AV HDMI 1 � � � =f---- - USBl N/OFF------------ ------- '. __________ · HDMl2 Signal Source ------- --...;;...------< � Ent e r/Play/Pause 1"1 > -- - �... - Page 8 1. Connecting the projector to power A. Plug the power cord to the projector. B. The power indicator on the projector lights up after the power cord has been connected. 2.Power ON/OFF Press the" (!) "button on the projector or on the remote control to power it on. �= :t..."t e--------,-------<...
- Page 9 3. Multimedia boot screen The multimedia screen will be displayed in 10-20 seconds after you press the power button. 4. Focus & Keystone correction A. If the image is displayed as a trapezoid shape, turn the keystone correction knob on the upper surface of the projector until the projected image becomes rectangular to correct the keystone issue.
-
Page 10: Optical Adjustments
□ , , . 1 1 111 1 1 1 1 1 11 1 11 1 1 1 1 1 .,, , KEYSTONE 1 ] 111: I I I I I l : I I III [II I ♦ FOCUS OPTICAL ADJUSTMENTS The projector corrects the image deformation by the optical keystone correction. - Page 11 However, this projector does not hove a horizontal keystone correction function. The projector must be placed horizontally on the projection screen. If you encounter the problem as shown above, it is probably because the projector has not been placed horizontally to the projection screen, or the projection screen is not vertically positioned.
-
Page 12: Input Source
1. Playing media files from a USB Drive A. Insert a USB storage device into a USB port. Input Source llllllll HDMI HDMl2 B. Pick USB at the Signal Screen Mirroring Sources menu. iiii�l-!131111111 0 • - 10 ·... - Page 13 Supported multimedia file formats and types Audio file MP3/WMA/OGG/ AAC/MM/FLAC/ APE/WAY JPEG/BMP/PNG Picture file MPEGl, MPEG2, FLY, MPEG, RM, AYI/RMYB, Multimedia MOY, MKY, DIYX, FYOB M-JPEG (only Yideofile unspported 640*480) Text file C. Click the USB icon to select the contents D.
- Page 14 2. AV video connection Use a 3-in-l AV cable to connect to the projector as shown below. Once connected, pick AV at the Signal Sources menu. Input Source � HDMI HDMl2 Screen Mirroring c:C[JlJn--- mn:l[Jl Supports NTSC/PAL. · 12 -...
-
Page 15: Hdmi Connection
3. HDMI connection Use the HDMI slot to connect computers and HDMl-compotible devices. Once connected, pick HDMll ot the Signal Sources menu. Input Source � 1g- - - - - HDMI HDMl2 Screen Mirroring Input Source Supported resolutions: 576P, 680P, 720P, 1080P, 640x480, 800x600, 102Ax768, 1280xl024, 1280x720, 1440x900, 1366x768, 1920xl080, 1280x800, 1440x960, 680xl050 4. -
Page 16: Menu Settings
MENU SETTINGS 1. Remote control user guide Press the" @" key to enter the main menu, then press the ◄/► key to enter each sub-menu. Press the" ◄/►" key to select the sub-menu, then adjust the parameters as required, and press the "OK"key to confirm. 2. - Page 17 B. Sound sub-menu: Available adjustments: Sound Mode/ Balance/ Auto Volume/ Bluetooth Turn on/off Bluetooth When the Bluetooth is turned on, search for nearby Bluetooth speakers or earphones to pair the device. Press the "OK" button to pair the device. When the device is connected, press the "OK" button again to disconnect the device. C.
-
Page 18: Settings Sub-Menu
D. Settings sub-menu: Available adjustments: OSD Language/Reset to Factory Settings/Blending/OSD Duration/Software Update E. Input Source sub-menu: Available adjustments: AV/HDMll/HDMI 2/Screen Mirroring/VGA/USB ■ SCREEN MIRRORING 1. Select Screen Mirroring in the Input Source list. 2. Press the OK key to enter the interface. 3. - Page 19 B. Streaming with your Wi-Fi router l. Turn on the projector, select Screen Mirroring as the input source to enter the Screen Mirroring interface for iOS; 2. Open the 'Settings', connect your iOS device to the "YOWHICK-124626," Wi-Fi {PWD: 12345678); · 17 ·...
- Page 20 1. Select Android Screen function 2. Turn on the WLAN on the Android device. 3. Launch the Multi-Screen / Wireless Display / Screen Mirroring / Smart View / Cast Function (Figure 2) 4. Select "YOWHICK-XXXX" (Figure 3) (Figure 1) · 18 ·...
- Page 21 Cast **** YOWHICK - . a ... ,,., (Figure 2) (Figure 3) This projector supports the Miracast co-screen protocol; if you use Chromecast or other co-screen protocol devices, such as Google/Motorola mobile devices, you will be unable to wirelessly cast your screen.
- Page 22 Tips: USB debugging steps may vary due to different devices' Android OS differences. Search for How to open the USB debugging mode on "Your device" in Google. Actual prompts are based on Samsung Galaxy S9+ OS. 1. Open the 'Settings', tap About->Software information->Build number; 2.
- Page 23 2. Select iOS Screen Mirroring function; 3. Tum on Wi-Fi on your iOS device and search for fhe network name of the projector (for example YOWHICK-124626); 4. Pick it ond enter the password: 12345678. Your iOS device will connect to the projector automatically.
-
Page 24: Projector Installation
Tips: If you'd like to connect to another Wi-Fi router, please repeat the above procedures. C. Settings Description WiFi: Connect to Wi-Fi router Reset: Restore the Screen Mirroring function to its original system state ,.!) Reset OTA: Online update Mirror Setting: Mirror mode/ Airplay mode Mirror Setting PROJECTOR INSTALLATION Installation Method... - Page 25 Projector Screen CD Ceiliing/front projection ® Ceiliing/rear projection Projecto J-, ,-----, CZ) Desk/front projection @ Desk/rear projection Projection screen mode setting 1. The projector supports front projection/back/ceiling projection. 2. Enter the settings interface>Picture Settings>Projection Direct Front. 3. Choose the way you want the projector. Install on the ceiling A.
- Page 26 WARNING: 1. If the projector is mounted inoppropriately on a ceiling or on a surface, it may be damaged beyond repair. 2. The recommended ambient temperature range is 41 °f - 95 °f. The incorrect temperature may Lead to the device malfunctioning.
-
Page 27: Throw Distance And Screen Size
Throw distanceand screen size 1. 3m 2.6m 3 .Bm For reference only. Throw distance and screen size may vary due to different configurations. TECHNICAL SPECIFICATIONS LTPS LCD Color Reproduction 16.7m Imaging Technology Resolution 1920*1080 Keystone Manual Correction ± 15 ° Highest Resolution 1920*1080 Power Voltage...
