Summary of Contents for schmalenberger FLUVO 27143

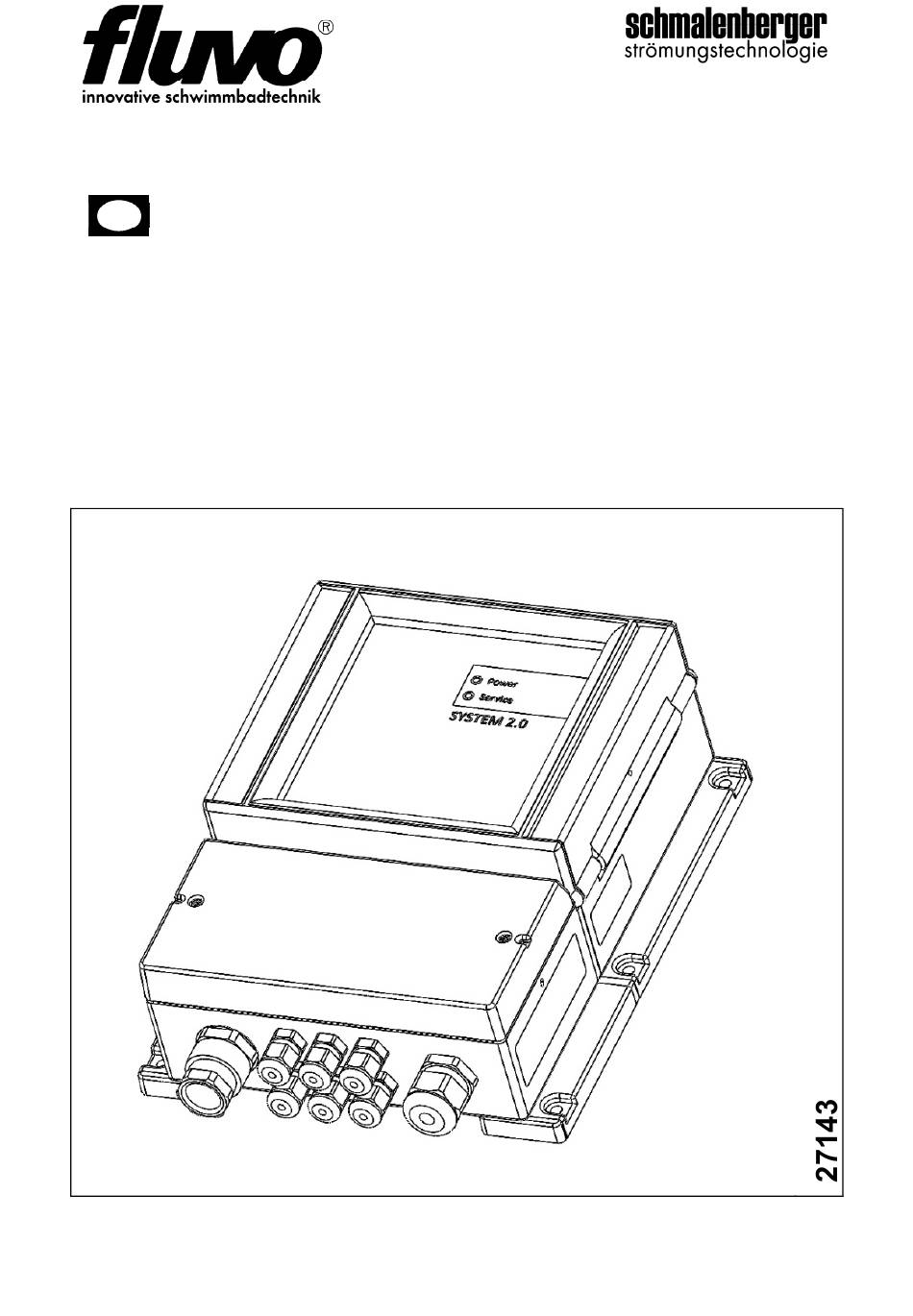

- Page 1 Gateway Operator’s manual Translation of the original...
- Page 2 Please drop these devices off at public collection points provided for that purpose when you have finished using them. Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143...
-
Page 3: Table Of Contents
Network settings ......................23 Converter box – GSA (additional information) ............24 Frequency inverter FU (additional information) ............25 DMX via i-light ......................26 Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 4: Introduction
RS485 interface for DMX output Colour light control Modbus RTU – interface Fluvo – BUS for networking Fluvo components Device card Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 5: Safety Instruction
If the guarantee seal is destroyed, the guarantee and manufacturer's warranty shall be rendered null and void Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 6: Technical Data
The terminal chamber disconnects are inserted and can be removed for easier wiring as follows: Figure 2 Terminal compartment disconnection Installation is in the opposite order. Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 7: Description Of Terminal Connections
Delivery state A inactive / B active Device-specific data MAC address Password for “myfluvo®” app, can be changed, see 8.2 Serial number Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 8: Device Dimensions
Cable ø7-13mm 6x cable gland M12 Cable gland M25 for LAN cable Control line Sealing insert slotted for ø5 mm Cable ø3.5-7 mm Figure 3 Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 9: Technical Specification
RS 485 Data rate 9600 baud Terminating resistor 120 Ohm For connecting FLUVO devices Luchs NT, Control NT, converter box Protected against polarity reversal Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 10: Operating Display
If a fault message is present on a device connected via BUS, this is indicated by the red service LED. Error Flash code Measure Collective fault signal Red LED Check device with fault message for errors and rectify. flashes steadily Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 11: Installation
To ensure the IP65 device protection class: Make sure that a) the cable glands in the housing are firmly tightened b) the seal for the cable is correct. Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 12: Bus Connections
The cable shield is connected to the terminal marked Ʇ on one side. The maximum cable length is 30 m. Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 13: Overview Of Network-Capable Devices Via Bus
For correct BUS operation, the BUS address must be set on the devices. Please note that the BUS address is only adopted when the device is restarted. To do this, disconnect the device from the mains and reconnect it. Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 14: Counter-Current System Gsa With Sensor Button And Fu
In order for the gateway and converter box to communicate with each other, a device address must be set on the converter box using the MODE programme selector switch. Assignment of MODE programme selector switch to FU MODE Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 15: Controlling The Frequency Inverter Fu Via Modbus
Values 1 – 4 (factory setting 1) 6.064 RS485 bus type 1: Modbus RTU / SPF 1.130 Setpoint source 4: SAS/MODBUS 1.131 SW enable 9: Autostart Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 16: Attraction With Sensor Button And Control Nt
Notice: Observe 27248 Control NT operator’s manual Connection terminals BUS A BUS B Ʇ Data cable shield. Make sure to set the BUS terminating resistor in the gateway. Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 17: Luchsnt Light Control Via Bus
A device is operated as MASTER to which the control signals are connected. The remaining devices are operated as SLAVE, for additional information, see 27142 LuchsNT operator’s manual. Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 18: Light Control Via Dmx
When installing, make sure that the polarity is correct. DMX + with DATA+ DMX - with DATA- Ʇ Data cable shield DMX start address 1 is permanently stored. DMX channels 512 Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 19: Start-Up
LED. If, after starting the device, the power operation LED continues to steadily light up “ready for operation”, check the enable terminal to see if it is actively closed. Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 20: Devices Ip Readout Via Myfluvo® App
The device card is located in the terminal compartment when delivered. The MAC address, device password and device serial number are specified on it. Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 21: Device Configuration Via Web Interface
You can access the device settings menu via Here you can teach-in bus subscribers configure the network connection change the app password read out device information. Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 22: Set-Up - Settings
4.2 device-specific data or on the device card. The “myfluvo®” password can be reset to the factory setting by leaving the field blank and confirming with the device password. Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 23: Device Information
OPERATOR'S MANUAL 8.2.3 Device information Figure 13 8.2.4 Network settings Figure 14 In the delivery state, DHCP is switched to active. Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 24: Converter Box - Gsa (Additional Information)
You can read out the current status of the device in the status of the converter box. Figure 15 Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... -
Page 25: Frequency Inverter Fu (Additional Information)
In this menu item it is possible to change the speed levels from 7 to up to 3 steps. The change is implemented in the corresponding active converter box. Figure 16 Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany... -
Page 26: Dmx Via I-Light
DMX communication can be switched OFF or ON. When switched off, the DMX control function is not offered in the “myfluvo®” APP. Figure 17 Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany Version: 27143... - Page 27 OPERATOR'S MANUAL Subject to technical changes Gateway Schmalenberger GmbH + Co. KG Version: 27143 D-72072 Tübingen / Germany...
-
Page 28: Schmalenberger Gmbh + Co. Kg
Im Schelmen 9 – 11 E-mail: info@schmalenberger.de D-72072 Tübingen / Germany © 2022 Schmalenberger GmbH & Co. KG; All rights reserved Manual is subject to changes Subject to technical changes Schmalenberger GmbH + Co. KG Gateway D-72072 Tübingen / Germany...
