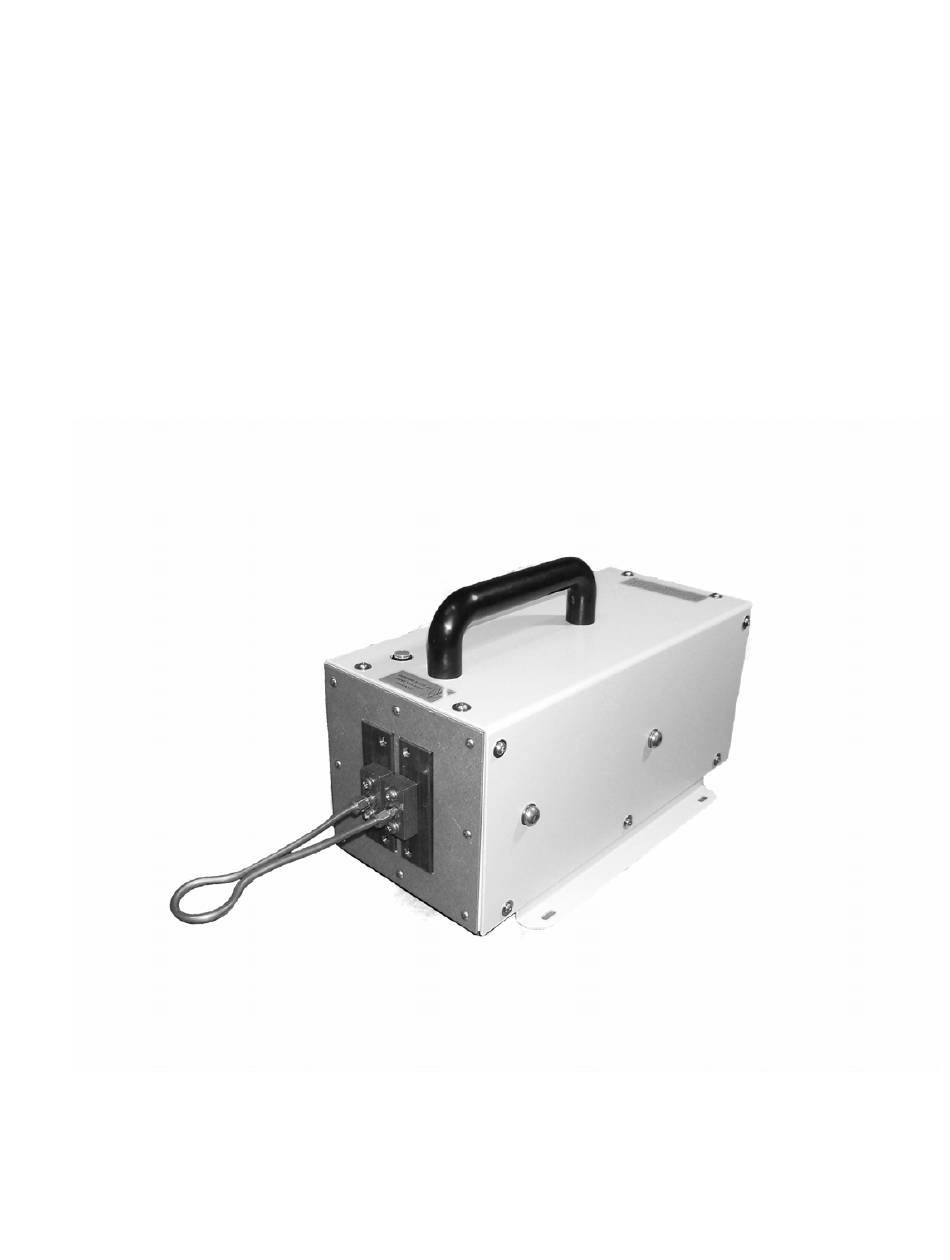

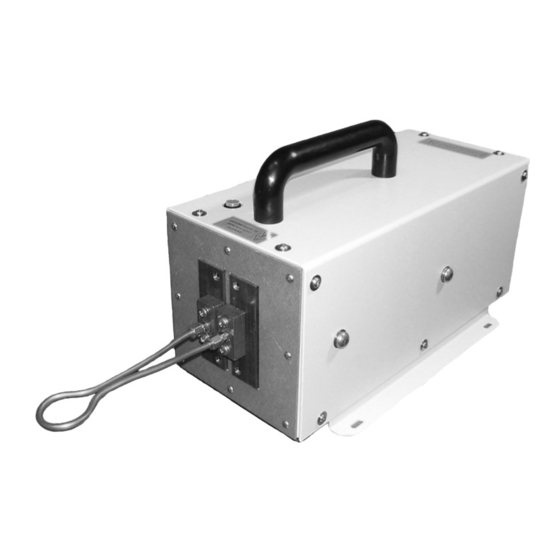

Remote Heat Station
40kW; 35 – 400kHz
User's Guide
RHS-40
Rev. A
1/4/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHS-40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Powell RHS-40

  • Page 1 Remote Heat Station 40kW; 35 – 400kHz User’s Guide RHS-40 Rev. A 1/4/10...
  • Page 2 Table of Contents 1. SPECIFICATIONS AND FEATURES ..................3 2. GETTING STARTED ......................4 3. CONNECTIONS........................5 4. LOAD STATION TUNING......................6...

  • Page 3: Specifications And Features

    1. Specifications and features 1.1. Output Maximum Power 40kW Duty Cycle 100% Maximum Voltage 700V rms Frequency 35kHz to 400kHz Cable current 400Amps Peak 1.2. Physical Dimensions: Length 18.25in (463.55mm) Width (203.2mm) Height (box) 8.625in (219.07mm) Weight (unloaded box) 41lb (18.6kg) Weight (with 10ft cable) 63lb...

  • Page 4: Getting Started

    2. Getting started 2.1. Safety Warnings Have all operation, maintenance and servicing performed by qualified personnel only. Read this operation manual completely before using the power supply. Induction heating can be dangerous. Obey all warnings on unit and in manual. Do not touch live electrical parts.

  • Page 5: Connections

    3. Connections This section gives a description of the required steps to connect the Remote Heat Station to an induction power supply, load, and cooling water. A coil mounts to the output blocks with four 1/4-20 screws. Figure 1: Load connections. 3.1.

  • Page 6: Load Station Tuning

    3.2. Power supply connection The input blocks of the Remote Heat Station should be bolted onto the output of an Induction Heating power supply. The RHS is rated for up to 40kW at up to 400kHz. Consult the manufacturer for use beyond those limits. 3.3.
  • Page 7 WARNING: Make sure that the circuit breaker is turned off before adjusting heat station components. Loading resonant capacitors onto the RHS capacitor bus. Figure 2: Changing the capacitors 4.2. Tuning. This section provides the procedures required for the final tuning of the heat station for a specific heating coil and load.
  • Page 8 3. It is necessary during tuning to measure the current in the RHS cable using the oscilloscope with a Rogowski coil. The cable current can not be above 300amps. 4. It is also useful to measure with an oscilloscope the voltage at the RHS capacitor rail. Using a differential voltage probe monitor the Voltage across the RHS capacitor rail and compare it to the unit display.
