Bluestream DA11ABL-WP-US Quick Reference Manual

Introduction

FEATURES:

• Dante® network wall plate interface for Bluetooth and analog L/R audio inputs, and L/R audio outputs
• Converts 2ch Bluetooth, or un-balanced audio sources to Dante® audio
• Converts 2x Dante® audio channels to un-balanced audio outputs
• Adjustable input sensitivity from +24dBu to -28dBV via control software
• Adjustable output gain from +20dBu to -28 dBV via control software
• Supports: 44.1, 48 & 96kHz sample rates @ 16, 24 or 32 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE
• Magnetic faceplate surround and US Decora style backbox compatibility
Contact:
support@blustream.com.au
DA11ABL-WP-US
Quick Reference Guide

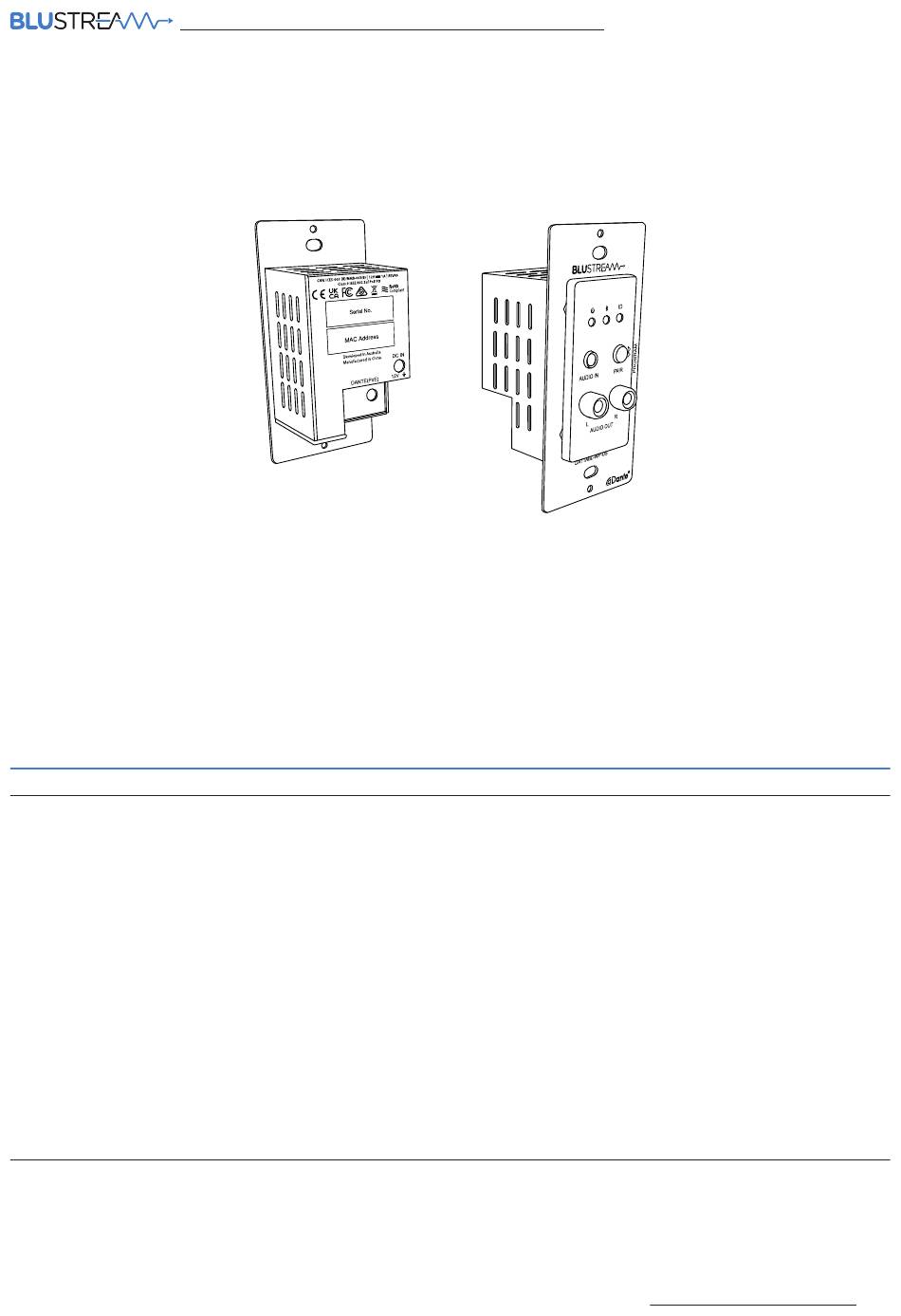

The DA11ABL-WP-US is a multi-input / output wall plate to convert Bluetooth and analog
audio within a digital Dante® networked audio system. The DA11ABL-WP-US converts 2
input channels of Bluetooth or unbalanced audio to Dante® digital audio, and 2 channels
of Dante® audio to 2 x output channels of unbalanced audio.
The DA11ABL-WP-US is a plug & play device that is powered using PoE (Power over
Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and
magnetic faceplate design allows installation into most single-gang US junction boxes.
The DA11ABL-WP-US is the ideal BYOD interface to allow any Bluetooth device to stream
audio wirelessly to a Dante® audio system.
|
support@blustream-us.com
DA11ABL-WP-US
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01
