Product Overview
This product is an adaptor used to install Vandal Dome camera which is one of our WN3 series
(the same model as SNV-5084 / 6084 / 7084 / 6084R / 7084R) in the electric gang box or on
the wall.
B
MOUNT-BRACKET
SBV-158G
SBV-158GW
Installation Precautions
Please make sure to install on an area which is strong enough to support more than 4 times of the
total weight of this product and the camera. Depending on some installation conditions, this
product can be connected to 0.75" NPT which is a screw peak processed pipe.
Package
Installation

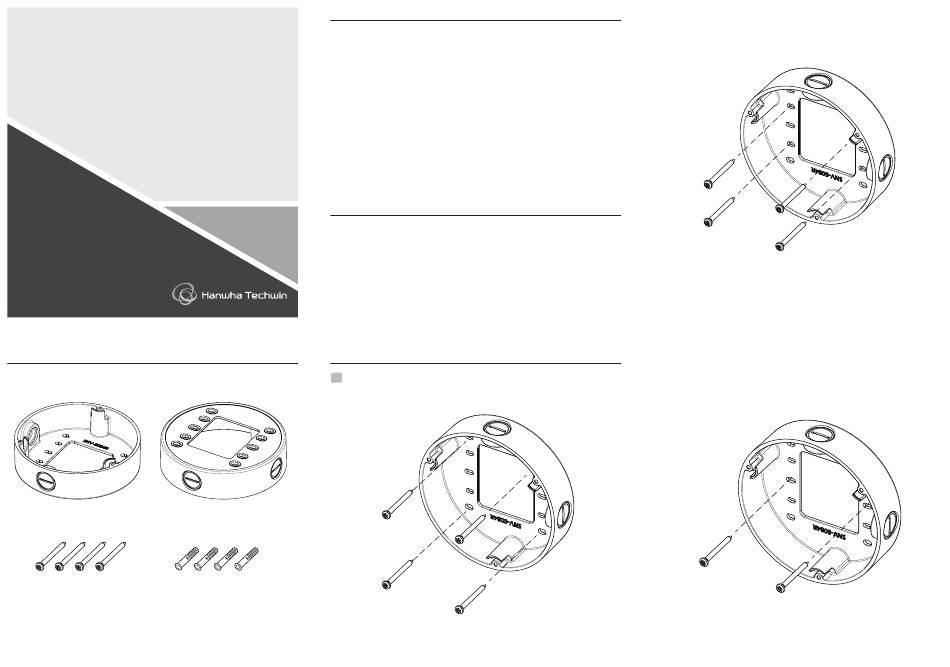

1 Install the mount bracket on a desired position.
A
C
MOUNT-BRACKET
SCREW-SPECIAL
ANCHOR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hanwha Techwin SBV-158G
Summary of Contents for Hanwha Techwin SBV-158G
- Page 1 (the same model as SNV-5084 / 6084 / 7084 / 6084R / 7084R) in the electric gang box or on the wall. MOUNT-BRACKET SBV-158G SBV-158GW Installation Precautions Please make sure to install on an area which is strong enough to support more than 4 times of the total weight of this product and the camera.
- Page 2 Product Outline 2 Remove the cap-bolt in the selected direction before inserting the pipe. 3 Attach the case-bottom to the mount bracket. 3.54”(90mm) 3.35”(85mm) 3.29”(83.5mm) Pipe CAP-BOLT Ø5.91”(158mm) Product Specifications However, take into consideration the pipe insertion direction. There are two directions available for inserting the pipe. Weight 380g ...
