LockTech ACCUREADER KW14 Quick Start Manual page 2

safe cleaner to free any potentially stuck wafers.
2) Use the alignment holes through the AccuReader
key to assist in judging the distance from one wafer
position to the next.
3) Place the insertion/release slide in the slot on the
AccuReader key on the #3-6 side. Fully insert the
AccuReader key into the keyway and remove the
slide. The AccuReader key is now ready to read the
#7 wafer. (Note: If the AccuReader trapped a
wafer shortly after inserting it into the keyway,
use the release slide on the opposite side of the
key to release the AccuReader. This happens
when wafers fall into the trap slot for the 1-2 side,
since these locks have wafers only on one side.
Flip the AccuReader over and restart step 2).
4) Always start reading with the #4 depth slide
tool, then proceed to #3 & #2 in order, if
necessary. Fully insert the depth slide into the Accu-
Reader key. The alignment mark on the depth slide
will line up with the (Y) Yes mark or it will line up with
the (N) No mark.
a) If the #4 depth slide lines up with the Y
then the depth for the #6 wafer is a 4. If the depth
slide lines up with a N, then you must proceed to the
#3 depth slide.
b) If the #3 depth slide lines up with the Y
then the depth for the #6 wafer is a 3. If the depth
slide lines up with a N, then you must
proceed to the #2 depth slide.
c) If the #2 depth slide lines up with the Y
MAKE MODEL
Kawasaki Vulcan 2000, 1600 Nomad, 1600 Classic, Mean Streak
Kawasaki KLR650
Kawasaki Vulcan 500, 800, 1500, KLR, KLX, Eliminator 125 (Can be KW14 or KW14R)
Kawasaki Ninja 750
Kawasaki KLX 650
Ducati Most Models
Suzuki Marauder 1600
Suzuki Boulevard M95
Victory Most models
MV Augusta Most models
Cagiva Mito 500
then the depth for the #6 wafer is a 2. If the depth
slide lines up with a N, then the depth for
wafer #7 is a 1.
position until you have recorded the depth for wafer
position 6, 5, 4, & 3.
the AccuReader key from the keyway and flip it over.
Insert the insertion/removal slide on the #1-2 side of
the AccuReader and fully insert the AccuReader
key back into the keyway. You are now ready to read
wafer position #2.
position until you have recorded the depth for wafer
position 2 & 1.
make a complete key.
TIPS& SUGGESTIONS
1) Always clean the keyway thoroughly before
starting.

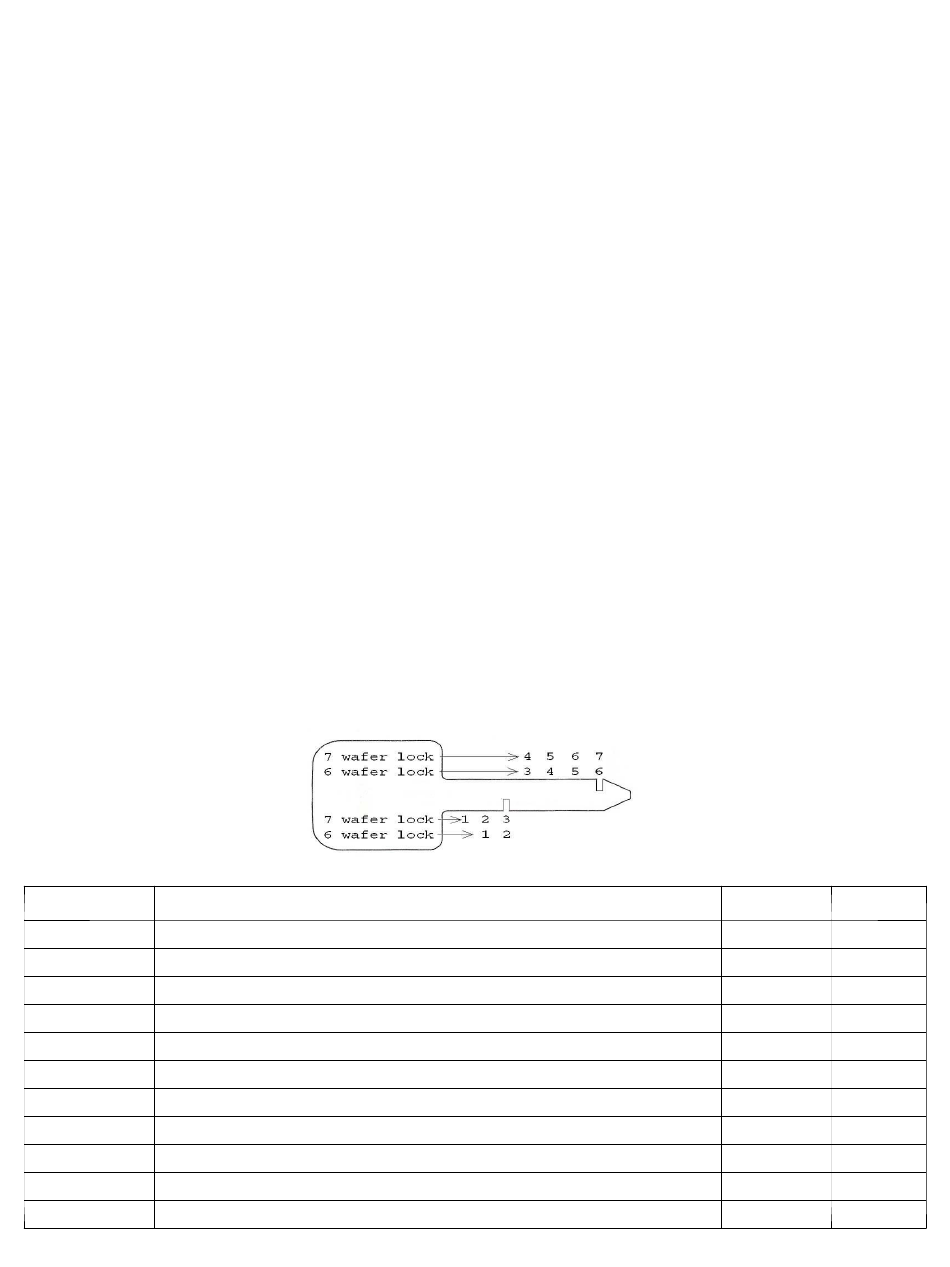

2) Use the diagram on the protective case to identify
the YES line and the NO line when reading a lock.
3) Watch the demonstration video online at:
www.locktech.biz
KW14 compatibility list
d) Repeat steps a through c for each wafer
e) Using the insertion/release slide remove
f) Repeat steps a through c for each wafer
g) You now have recorded all the positions to
YEARS
2002+
2008+
1987-2001
1991-1992
1993-1996
1991-2002
2004+
2004+
1999+
1996+
2007+
rev. 3-31-09
