Summary of Contents for Adena Rada Duo

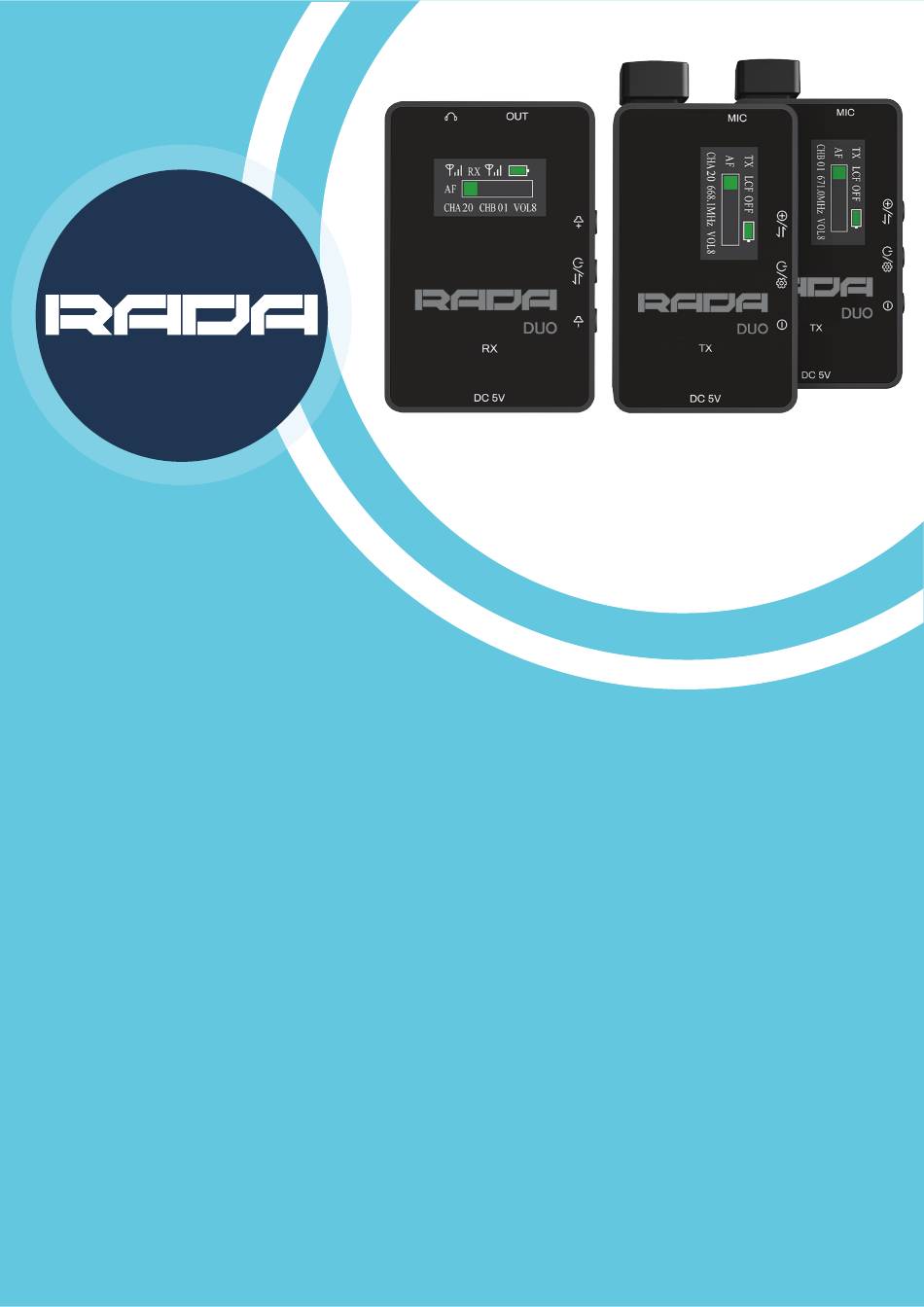

- Page 1 CLIP, WALK AND TALK WITH RADA DUO RADA DUO QUICK INSTALLATION GUIDE...
- Page 2 RADA Duo Quick Installation Guide RADA Duo is a lavalier wireless microphone de- fined by its miniature and lightweight design, high-quality audio, long battery life and precise noise cancellation with LCF mode for especially loud environments. Duo is focused on flexibility...
- Page 3 Avoid pulling by the cables and bumping them, since that can cause the microphone sensitivity to drop or damage the cables. Keep the devices dry and avoid touching them with wet hands. RADA Duo is not waterproof, therefore do not expose it to rain or water PRECAUTIONS...
- Page 4 Product Package Includes x1 Receiver x2 Transmitter microphone x1 TRRS to TRRS audio cable x1 TRRS to TRS audio cable x1 1-to-3 USB Type-C to USB A charging cable x2 Lavalier microphones with clips x2 Windshields for microphones Cold shoe mount for installation on cameras Carry bag...
- Page 5 RADA Duo Transmitter Microphone Transmission : UHF Voltage : 3.7V lithium battery Current : 100mA@3.8VDC Microphone type : omni-directional Frequency : 650~690MHz Frequency stability : <15ppm Transmission power level : 13dBm/3.8VDC Frequency response : 50Hz~15K Hz Operating distance : 50 meters, depending on the environment 10.
- Page 6 RADA Duo Receiver Frequency : 650~690MHz Frequency stability : < ± 15ppm Distortion : < 0.5% Audio Delay : < 2.5ms Frequency response : 50Hz~15K Hz Sensitivity : < -105dBm Dynamic range : >85dB Operating distance : 50 meters, depending on the environment Battery capacity : 3.7V/800mAh...
-
Page 7: Icon Description
Icon Description Microphone Microphone input : Designed for a 3.5 TRS connector “+” Function key and coding key : Tap to increase when configuring settings or press 3 times in a row to enter coding mode Power button and function key : Press for 2 seconds to turn on or off or tap to scroll through customizable settings “–“... - Page 8 Icon Description (Launcher TX) TX transmitter icon LCF (low cut filter) : Enable it when in a particularly noisy environment Battery charge indicator : Indicator flashes when charging and stops when fully charged Volume level : You can set it from 0 to 8 Frequency : 650 to 690 MHz are supported Channel : 0 to 20 are available Audio Frequency : Dynamically shows...
- Page 9 Icon Description Monitoring port : Designed for 3.5 TRS or TRRS headphones Audio output port : Connect to other devices for audio recording via 3.5 TRRS connector Volume “+” control key : When powered on, press to increase volume Power button / coding key : Press for 2 seconds to turn on or off or press 3 times when powered on to enter coding mode Volume “-“...
- Page 10 Icon Description (Receiver RX) Signal strength RX receiver icon Battery charge indicator : Indicator flashes when charging and stops when fully charged Volume level : You can set it from 0 to 8 CHA (Channel A) and CHB (Channel B) indicators : 0 to 20 are available Audio Frequency : Dynamically shows audio level...
- Page 11 3.5 TRS to 3.5 TRRS for connection to cameras 3.5 TRRS to 3.5 TRRS for connection to cellphones 3.5 TRRS to USB Type-C for connection to computers and mobile devices USB Type C to USB Type A adapter for connection to all standard devices...
- Page 12 Quick Installation Guide Transmitter The transmitter can be used with the inbuilt micro- phone or with an external 3.5 TRS microphone. If you would like to use an external microphone, input it into the “MIC” port as indicated on the device. 3.5 TRS...
- Page 13 Receiver The receiver can be connected to a camera using the provided cold shoe like this : Secure the receiver on the cold shoe mount Secure the cold shoe mount on the camera and tighten it Connect the receiver to your camera using the provided TRS to 3.5 TRRS cable 3.5 TRRS 3.5 TRS...
- Page 14 When using with a phone When connecting the receiver to a cellphone, use either the provided 3.5 TRRS to 3.5 TRRS or 3.5 TRRS to USB Type-C depending on your device. 3.5 TRRS 3.5 TRRS Type-C Lightning...
- Page 15 When using with a computer When connecting the receiver to a computer or other devices, use either the provided 3.5 TRRS to USB Type-C or USB Type-C to USB A adapter. 3.5 TRRS Type-C USB A to USB Type-C audio adapter...
- Page 16 Configuring the devices For the transmitter – press power button for 2 seconds to turn on or turn off the device. When powered on, press power button to cycle through options for setting up chan- nels, volume, or LCF. Adjust these settings using “+” or “-“ buttons.
- Page 17 Devices are shipped already paired. In case you need to pair the devices again or fix channel misalignment, follow this procedure : Power on the devices On the receiver, press power button 3 times to enter pairing (coding) mode On the transmitters, press “+” button three times to do the same...
- Page 18 Troubleshooting Objects and walls can block the devices and reduce effective range. In crowded environments particularly, human bodies attenuate radio waves, and thus it is im- portant to keep the devices free from obstruction. If you are getting interference or low signal, try clearing the ob- stacles When using outdoors or speaking directly into the microphone, it is recommended to use the windshield to...
