AMARA RAJA AMARON QUANTA 12HWS-388W Installation And Operation Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTALLATION AND
OPERATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMARON QUANTA 12HWS-388W and is the answer not in the manual?

Questions and answers

Related Manuals for AMARA RAJA AMARON QUANTA 12HWS-388W

Summary of Contents for AMARA RAJA AMARON QUANTA 12HWS-388W

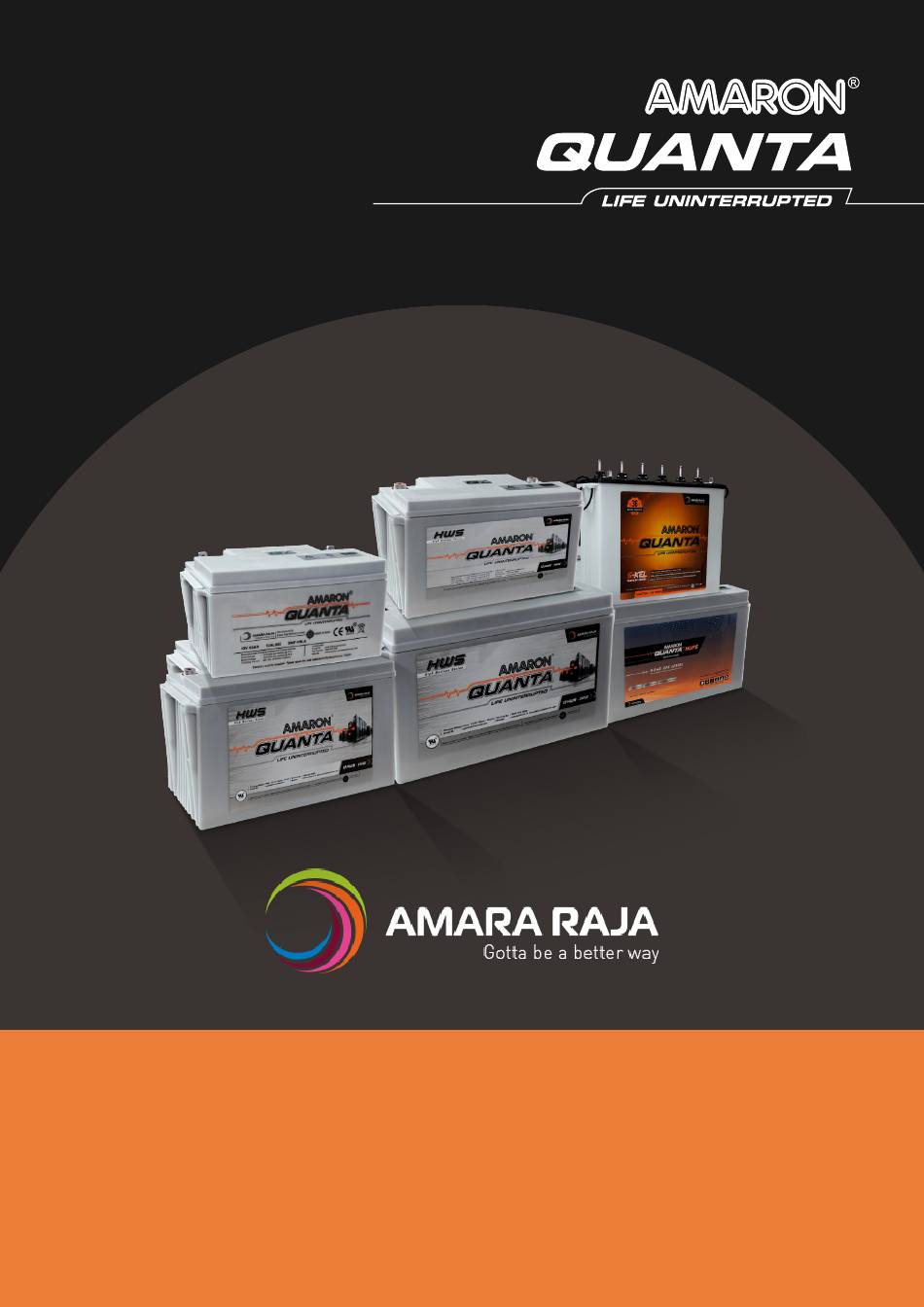

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS...
  • Page 2 This document details procedures to be followed while installing and operating AMARON QUANTATM & HWS SMF-VRLA batteries. The procedures herein described are meant for use by the customers of Amara raja Batteries. This document is a part of the documentation system in...

  • Page 3: Table Of Contents

    AMARON QUANTA - LIFE UNINTERRUPTED PAGE OF CONTENTS Section 1 Introduction Section 2 Brief Review of Technology Section 3 Major Advantages of VRLA Batteries Section 4 General Information AMARON QUANTATM & HWS Batteries Section 5 Safety Precautions Safety Alert Sulphuric Acid Burns Explosive Gases Electrical Shock and Burns Important Message...
  • Page 4 AMARON QUANTA - LIFE UNINTERRUPTED PAGE OF CONTENTS Section 8 General Installation Considerations Battery Location Ventilation Temperature Variations Floor Loading Floor Anchoring Section 9 Cabinet System - Installation Cabinet Assembly Instructions Placement of modules (Batteries) Section 10 Electrical Installation Considerations 10.1 Connecting Cables 10.2...
  • Page 5 AMARON QUANTA - LIFE UNINTERRUPTED PAGE OF CONTENTS Section 11 Freshening Charge 11.1 Constant Voltage Method Section 12 Operation 12.1 Float Charge 12.2 Float and Boost Voltages 12.3 Recharge 12.4 Test discharge Section 13 Equalization 13.1 Equalizing Charge 13.2 Equalizing Frequency Section 14 System Monitoring 14.1...
  • Page 6 AMARON QUANTA - LIFE UNINTERRUPTED PAGE OF CONTENTS Section 15 Pilot Unit and Records Section 16 Tap Connections Section 17 Temporary Non-use Section 18 Do’s & Dont’s Section 19 Unit Cleaning Section 20 Trouble Shooting Section 20 Battery Maintenance Report...

  • Page 7: Introduction

    AMARON QUANTA - LIFE UNINTERRUPTED 1 INTRODUCTION Amara Raja Batteries Ltd, (ARBL) the largest manufacturer of stand by Valve Regulated Lead Acid (VRLA) batteries in the Indian Ocean Rim, comprising the area ranging from Africa and the Middle East to South East Asia.

  • Page 8: Major Advantages Of Vrla Batteries

    AMARON QUANTA - LIFE UNINTERRUPTED In conventional lead acid batteries towards the end of charging, the oxygen gas gets evolved at the +ve electrode and the hydrogen gas gets evolved at the –ve electrode. These gases will bubble out through the free electrolyte media and escapes into the environment, there by water are lost from the battery.

  • Page 9: General Information

    AMARON QUANTA - LIFE UNINTERRUPTED 4 GENERAL INFORMATION 4.1 AMARON QUANTATM & HWS BATTERIES In normal use, AMARON QUANTATM & HWS Batteries will not generate or release hydrogen and oxygen gases, will not release acid mist and will not have acid leak. This is because AMARON QUANTATM & HWS Batteries are designed differently from conventional lead acid batteries in order to provide maintenance - free operation.

  • Page 10: Sulphuric Acid Burns

    AMARON QUANTA - LIFE UNINTERRUPTED 5.2 SULFURIC ACID BURNS Batteries contain sulfuric acid, which can DANGER cause burns and other serious injuries. In the event of contact with sulfuric acid, flush SULFURIC ACID BURNS immediately and thoroughly with water. Secure medical attention immediately. When working with batteries, wear a rubber apron, rubber gloves and safety goggles or other eye protecting equipment.

  • Page 11: Important Message

    CAUTION If the foregoing precautions are not fully understood, clarification should be obtained from your nearest Amara Raja representative. 5.5 IMPORTANT MESSAGE The symbol at the left indicates an important message. If not followed, damage to and / or impaired performance of the battery may result.

  • Page 12: Receipt Of Shipment

    AMARON QUANTA - LIFE UNINTERRUPTED 6 RECEIPT OF SHIPMENT 6.1 DELIVERY INSPECTION Upon receipt of shipment unload and store the batteries in covered area. Do not expose them to direct sun light, rain, dust, storm, etc. Immediately upon delivery, examine for possible damage caused in transit, damaged packing material could indicate rough handling.

  • Page 13: Storage Interval

    AMARON QUANTA - LIFE UNINTERRUPTED If the battery is not to be installed at the time of receipt, it is recommended that it to be stored indoors at a temperature of 15 C - 32 C, clean, dry location provided with a freshening charge interval detailed in Section 7.1.
  • Page 14 AMARON QUANTA - LIFE UNINTERRUPTED Storage beyond these periods without charge can result in excessive sulphation of plates, which is detrimental to battery performance and life. Instruction on how to apply a freshening charge are detailed in 11.0. Important Note: Wherever charging current is referred in this manual, the following tabular charging current values to be consider for corresponding HWS models.

  • Page 15: General Installation Considerations

    AMARON QUANTA - LIFE UNINTERRUPTED environments unlike other plastics such as ABS. Since the VRLA batteries works under positive pressure to support superior oxygen recombination in the battery, PPCP which is elastic in nature has bulging as a normal property. This Elongation is due to material characteristics and it will not have any adverse effects on battery performance when operated at normal conditions as recommended by the manufacturers.

  • Page 16: Ventilation

    AMARON QUANTA - LIFE UNINTERRUPTED 8.2 VENTILATION The AMARON QUANTATM & HWS battery is a valve-regulated lead-acid battery, which is under normal recommended charging, in a stationary application, does not vent any gases. Tests have confirmed that more than 98% of gases generated are recombined within the battery. Under normal operating conditions, no special ventilation and / or battery room is required NEVER INSTALL BATTERIES IN AIR TIGHT ENCLOSURES.

  • Page 17: Floor Loading

    9 CABINET SYSTEM INSTALLATION 9.1 CABINET ASSEMBLY INSTRUCTIONS Check parts received against the packing note. Contact your local Amara Raja representative if parts appear incomplete. Identify missing parts by part number and parts description. Do not assemble if all material is not at the installation site or parts do not comply with drawing.

  • Page 18: Placement Of Modules (Batteries)

    AMARON QUANTA - LIFE UNINTERRUPTED 9.2 PLACEMENT OF BATTERIES Study the battery arrangement drawing to determine the proper location of the positive and negative terminals of the battery and to determine the correct placement of the batteries in the cabinet. From the battery arrangement drawing determine the number of batteries to be placed in each row and tier.

  • Page 19: Connection Preparation

    AMARON QUANTA - LIFE UNINTERRUPTED recharge with the same float voltage per string. Care should be taken to ensure overall resistance of connection between batteries and equipment - bus are consistent between strings. 10.3 CONNECTION PREPARATION Gently clean the contact surfaces only by using the brass brush / emery paper.

  • Page 20: Connections

    AMARON QUANTA - LIFE UNINTERRUPTED 10.5 CONNECTIONS 10.5.1 GENERAL Battery terminal and inter-battery connections should be corrosion free and tight for trouble-free operation. Periodically these connections should be inspected to assure cleanliness and integrity. Caution: Do not work on connectors with battery connected to charger or load.

  • Page 21: Battery To Charger Connection

    AMARON QUANTA - LIFE UNINTERRUPTED 10.6 BATTERY TO UPS CHARGER CONNECTION The Positive (+) terminal of the battery should be connected to the positive (+) terminal of the UPS charger and the negative (–) terminal of the battery to the negative (–) terminal of the UPS charger. 11 FRESHENING CHARGE 11.1 CONSTANT VOLTAGE METHOD Batteries lose some capacity during shipment as well as during the period...

  • Page 22: Operation

    AMARON QUANTA - LIFE UNINTERRUPTED 12 OPERATION 12.1 FLOAT CHARGE In this type of operation, the battery is connected in parallel with a constant voltage charger and the critical load circuits. The charger should be capable of maintaining the required constant voltage at the battery terminals and also of supplying the normal load where applicable.

  • Page 23: Recharge

    AMARON QUANTA - LIFE UNINTERRUPTED Do not float batteries at voltages higher or lower than those recommended which will be resulted reduced capacity or loss of battery life. After completion of the freshening charge as given in freshening charge section the minimum open circuit voltage should be as per below Model Voltage 12 Volt Configuration...

  • Page 24: Test Discharge

    AMARON QUANTA - LIFE UNINTERRUPTED 12.4 TEST DISCHARGE The batteries are shipped at 90-95% of the rated capacity, the same will be delivered 100% capacity after few charge / discharge cycles @ C20 capacity or 6 months in continuous float service for HWS batteries the discharge is as applicable based on battery sizing calculations or C15mins wattage discharge or 6months in continuous float service.

  • Page 25: System Monitoring

    AMARON QUANTA - LIFE UNINTERRUPTED 14 SYSTEM MONITORING 14.1 INSPECTION AND MONITORING CHART FOR VRLA BATTERIES UNDER OPERATION: Year Qtly. Hly. Description thly Check the float charging voltage and current. (Voltage: 13.38 volts per cell, Current: min 10% to max 25% of the module rated capacity) Note down the average ambient Battery room temperature.

  • Page 26: Procedure For Recoupment Of The Capacity

    AMARON QUANTA - LIFE UNINTERRUPTED Year Description Qtly. Hly. thly Inspect for any Physical damages, Heat seal leakage, Cracks on cover & container. (1st time before installation & quarterly afterwards) 11Nm for M6 and 13Nm for M8 terminal. Do the discharge at to understand the battery capcity (C20hrs/for HWS at C15mins/ as applicable) Note: Maintain Battery records without fail(Charge/discharge readings)

  • Page 27: Ascertaining The State Of Charge

    If rated capacity of the module is not obtained during the first cycle, repeat the above points 2 to 4 two more times. If problem persists send the details to nearest Amara Raja Office for guidance. 14.3 ASCERTAINING THE STATE OF...
  • Page 28 AMARON QUANTA - LIFE UNINTERRUPTED % State of Charge Open Circuit Voltage +0.05 -0.02 12.90 12.78 12.66 12.54 12.42 12.30 15 PILOT MODULE AND RECORDS A pilot unit is selected in the series to reflect the general condition of all modules in the battery string.
  • Page 29 AMARON QUANTA - LIFE UNINTERRUPTED B) Every 12 months, a complete set of readings, as specified in paragraph A above must be taken and all individual battery to be re-torque. C) Whenever the battery is given an equalizing charge, additional set of readings should be taken and recorded, as specified in paragraph A above.
  • Page 30 AMARON QUANTA - LIFE UNINTERRUPTED B) Every six months temporarily connect battery to charger and given an equalizing charge. C) To return the battery to normal service, re-torque all connections as per section 7.3 and then re-connect the battery to the charger and return the battery to float operation.
  • Page 31 14 days to determine if condition re-occurs. If so, contact your nearest Amara Raja representative. CAUTION Do not clean plastic parts with solvents, detergents, mineral spirits, or...
  • Page 32 AMARON QUANTA - LIFE UNINTERRUPTED 20 TROUBLE SHOOTING Symptom Check for Cause Remedy Re-adjust to 13.5V per Module Replace the Lower setting Charger battery Continuous settings Tighten to 11 N-m Low back charging at Terminal for M6 terminal high voltages tightness and 13 Nm (115 lb.
  • Page 33 AMARON QUANTA - LIFE UNINTERRUPTED Symptom Check for Cause Remedy Poor Provide Very high adequate Ventilation Abnormal ripple in the ventilation. Ripple battery charger Rectify the Charger heating output. charger setting Continuous Replace the over charge battery...
  • Page 34 AMARON QUANTA - LIFE UNINTERRUPTED BATTERY MONITORING REPORT Date: Company Address No. of Modules Serial No. Date Installed Model. No. of battery Operating Parameters Date: Time: Charger Output (at UPS terminals) Ambient Temp Total Battery bank Voltage (at battery bank terminals) Panel Meter Volts Charging Current (at the time of reading)
  • Page 35 AMARON QUANTA - LIFE UNINTERRUPTED INDIVIDUAL UNIT READINGS Unit No. Volt Unit No. Volt...
  • Page 36 READINGS TAKEN BY When advice is desired, please forward a duplicate of this report to your nearest Amara Raja representative. Note: - Use copies of monitoring format, if required. Risk of fire, explosion, or burns. Do not disassemble, heat above 55°C or incinerate.
  • Page 37 Regional Office B-93A, Panchasheel Vihar, New Delhi - 110 017 Ph.No: +91-11-2954 1892/1893/1896 Fax No: +91-11-2954 1044 email: delis@amararaja.co.in Amara Raja Batteries Ltd. Terminal A, 1-18/1/AMR/NR, Nanakramguda Gachibowli, Hyderabad – 500032, India Ph.No: +91 40 23139000 Fax No: +91 40 23139001 email: mktg@amaraja.co.in...
  • Page 38 AMARON QUANTA - LIFE UNINTERRUPTED AMARARAJA SERVICE NET WORK Branch Office Suite 203,6-3-550,L.B.Bhawan, Somajiguda, HYDERABAD - 500 016 Ph.No: +91-40-2339 4594/4597/4830 Fax No: +91-40-2332 8688 Regional Office Riaz Garden, 6th Floor, No. 12, Kodambakkam High Road, Nungambakkam, CHENNAI – 600 034 Ph.No: +91-44-7291 0700 Fax No: +91-44-2811 7199 email: kjp@amararaja.co.in...

This manual is also suitable for:

Amaron quanta 12hws-440wAmaron quanta 12hws-540wAmaron quanta 12hws-730w
