Overview of the Panels
Ⅰ.
AUX

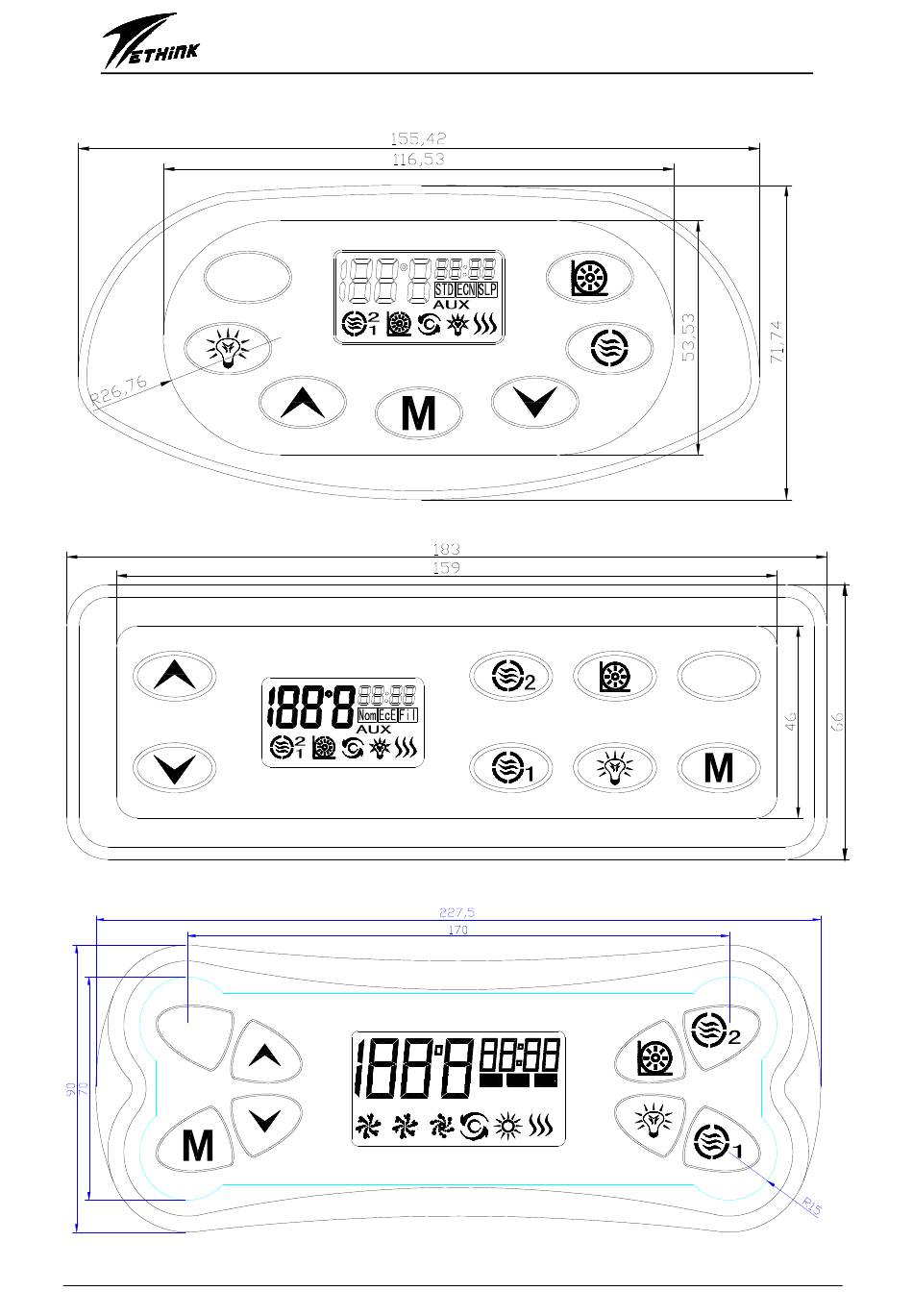

Fig . 1: A8=OFF 7 keys single color back lighting control panel- Installation sketch(156*72mm)
Fig . 2: A8=OFF 8 keys single color back lighting control panel- Installation sketch(183*66mm)
AUX
Fig . 3: A8=ON 8 keys double color back lighting control panel- Installation sketch(230*90mm)
www.ethink-spa.com
KL8800A User Manual
O
AUX
3
1
3
4
2
1
2
AUX
1
Advertisement
Summary of Contents for ETHINK KL8800A
- Page 1 KL8800A User Manual Overview of the Panels Ⅰ. Fig . 1: A8=OFF 7 keys single color back lighting control panel- Installation sketch(156*72mm) Fig . 2: A8=OFF 8 keys single color back lighting control panel- Installation sketch(183*66mm) Fig . 3: A8=ON 8 keys double color back lighting control panel- Installation sketch(230*90mm)
- Page 2 KL8800A User Manual Fig . 4: A8=ON 9 keys double color back lighting control panel-- Installation sketch(200*100mm) Fig . 5: Sub panel A Fig . 6: Sub panel B Ⅱ. Function Summary 1. Three working modes: Normal Mode, Economy Mode and Filter Mode.
- Page 3 KL8800A User Manual 9. Single phase, three phase or bi-phase 110V input, 110-120V or 220V-240V output is available. 10. With an additional power supply output, it could connect DVD/TV or any other loads. 11. Switch bank is available to select various functions.
-
Page 4: Working Mode
KL8800A User Manual 7. The 7th time to click on “ ” to set “start automatically replenishing water” , the LCD is showing “ ”. 8. The 8th time to click on“ ” to return to set “real clock ” , the LCD is showing “... - Page 5 KL8800A User Manual setting temperature at the first filter cycle(The heater will not work at the second filter cycle). ) The 4th time to press “ ”, the system goes back to “Filter Mode” and the LCD is showing “...
- Page 6 KL8800A User Manual 5. At the initial stage of each filter cycle, all other loads will run for 15 seconds to purify the pipeline. Ozone will start to work after 15 seconds. In order to prolong the lifetime of anti-virus system, ozone will work for 15 minutes and then idle for 15 minutes, and that cycle repeats.
- Page 7 KL8800A User Manual The Main Board Specifications and DIP jumper settings(Fig. 11) ⅦI) A1：OFF：The system with three working mode. ON：No working mode available, anti-virus function is invalid. Press the ” key can only control the heater ON or OFF. “...
- Page 8 KL8800A User Manual B5：OFF: “HEAT2” position could connect heater. ON: “HEAT2” position could connect hot pump. B6：OFF：Connect sub panel A. ON：Connect sub panel B. ***Note*** 1. Please turn off the system when you change any settings of the DIP jumpers, and then waiting for 60 seconds before turn on the system again.
- Page 9 ” “ ” or key could connect a DVD/TV/Ethink Blue tooth or other extra load and control its to be ON/OFF, the max allowable power is 1KW/230V(If the user choose the blue tooth, the the power will be 24W/12VAC). Ⅴ).Mandatory drainage(B4=ON) and automatic replenishing water(B3=ON) 1.
- Page 10 KL8800A User Manual Ⅴ. System Malfunction Warning Fault Root Cause Solutions Indication Temperature sensor open or 1. Check whether the plug is loose or the cable is short. damaged. “ ” Water flow sensor open or 2. If plug and cable are OK, please replace the main circuit board.
- Page 11 KL8800A User Manual Ⅵ. Electrical Parameters 1. Performance index Working Voltage: 3×220-240VAC/50Hz （or 240VAC/60Hz） Maximum Working current: 3 ×16A/220-240V（or 48A/240VAC） Dielectric Strength: 1250V / 1 minute, no punch through Insulation Resistance: 》200MΩ Waterproof Level: IPX5 Electric Shock Protection Level: Class 1 2.
- Page 12 KL8800A User Manual LIGHT OZONE LIGHT-DC WOUT SENSOR WATER KEY_DIS2 ACL1 SUB-KEY ACL2 PUMP1 PUMP2 WOUT BLOWER HT66F40 ACL2 ACL2 ACL2 ACL2 KEY_DIS1 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Fig. 13：Installation map for US version...
