Summary of Contents for Ekselans PIR-2

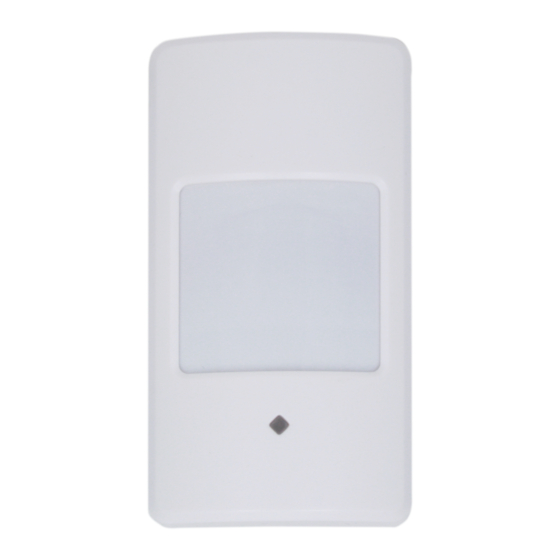

- Page 1 PIR-2 Wireless Pet-immune Motion Sensor User manual...
- Page 2 It has modern and elegant appearance. With the technology like energy saving and low battery war- ning, it is easy to setup and use. Parameters Reference PIR-2 Code 261024 Wortking voltage DC 9V Battery...
-
Page 3: Pcb Layout
Appearance Magnetic slice Bracket LED Indicator PCB layout Infrared Sensor Setting Switch (every 5s. or 5min.) Detective Interval Time... -
Page 4: Installation & Notice
Operating Instructions 1. Working principle with digital dual-core fuzzy logic operative programming and intelligent analysis, it accurately detects human body movement with infrared sensor and sends signal to main panel. 2. Pairing with main panel by App - Scan the QR code printed on the sensor. - The pairing result would be confirmed in App. -
Page 5: Battery Replacement Instructions
Battery Replacement Instructions If the LED indicator stays on, please replace the battery. Press down the hook on sensor with thumb pushing on it to open the cover. Replace with 2x AA battery. - Page 6 EKSELANS by ITS ITS Partner O.B.S. S.L Av. Corts Catalanes 9-11 08173 Sant Cugat del Vallès Barcelona (Spain) Tel: +34 935839543 info@ek.plus www.ek.plus...
