Summary of Contents for Krautli RVA 480HDWR
- Page 1 Operating Instructions 2.4GHz Digital Wireless Receiver Please read this manual thoroughly before operating the unit, and keep it for future reference. V2.1...
- Page 2 Contents 1. Precautions ............. 1 2. Product Features .............3 3. Technical Specifications ......... 3 4. Application ...............4 5. Operation Instructions ..........4...
- Page 3 1. Precautions ● Storage and Keeping 1) Do not expose the device to excessive heat or cold. The storage temperature of this device is -30~+80℃,and the operating temperature is -20~+70℃.The humidity is Rh90﹪. 2) Avoid dropping or striking this device. 3) Avoid using this device in enclosed spaces, areas with excessive vibration or subjecting this device to severe impacts.
- Page 4 ● Maintenance Remove all cable connections from the device before cleaning the unit. Caution Risk of electric shock Do not open Caution: to reduce the risk of electric shock, Do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...

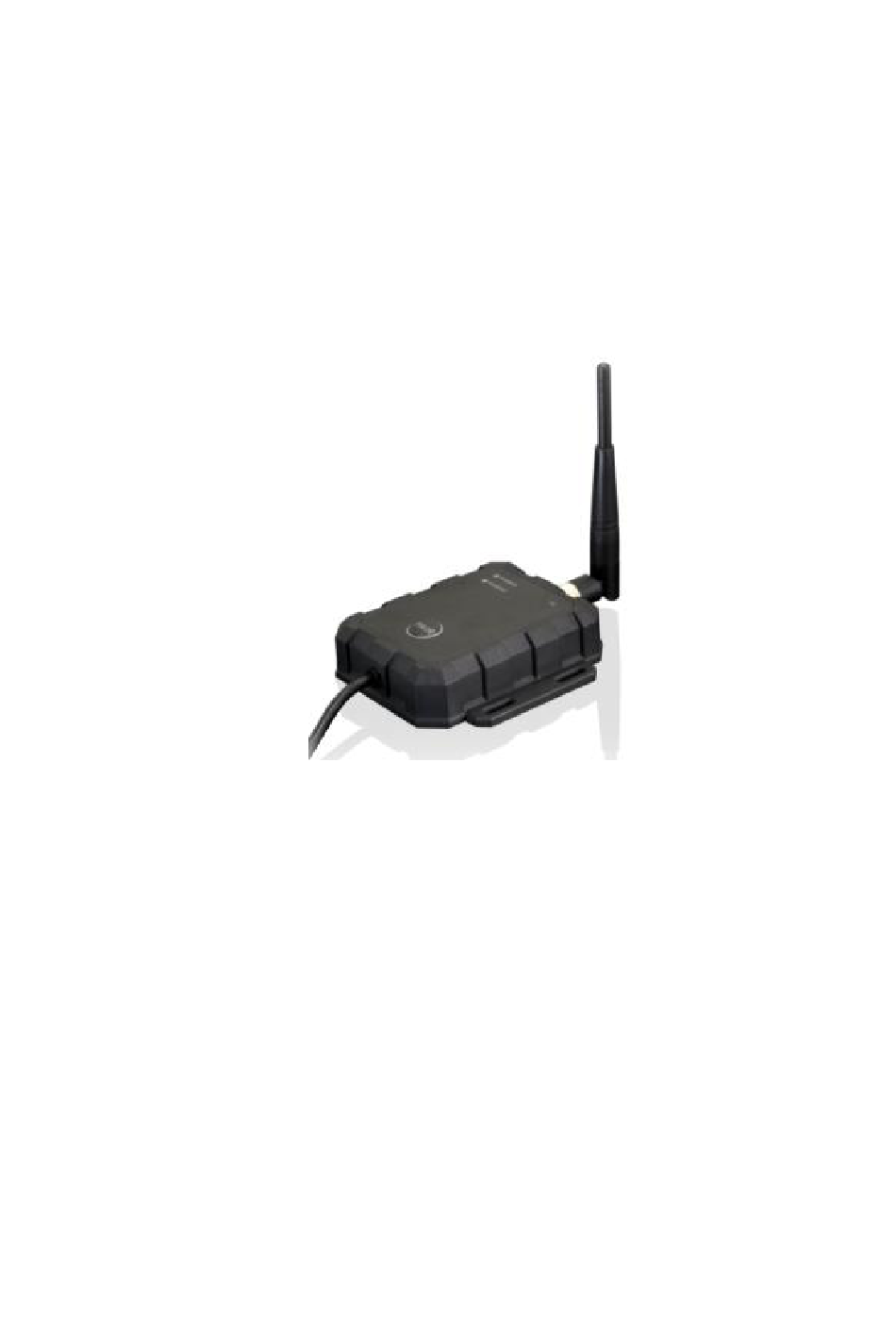

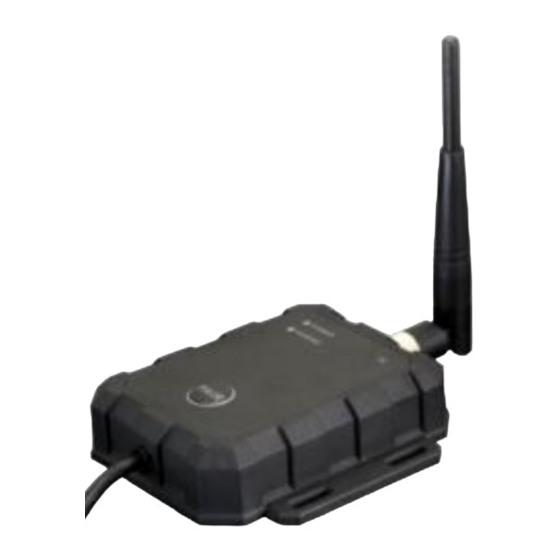

- Page 5 . Product Features Antenna ″PAIR″ Button 4PIN Female 1) Power supply: DC 10-32V 2) Metal housing, solid, suitable for outdoor use 3) Waterproof protection level equals to IP69K 4) Indication: Power: the “POWER” indicator turns red when power is on. Pairing: press “PAIR”...
- Page 6 4. Application 5. Operation Instructions 1) Connect the receiver to the monitor and the monitor should be switched to the receiver channel. When the receiver is powered on, the “POWER” indicator turns red. 2) When powered on, the receiver will always wait for connecting to the transmitter with which it paired before.
- Page 7 4) If the receiver does not pair with a transmitter, or if the receiver cannot receive signal from the transmitter, the receiver will display a picture which indicates “LOST LINK”. 5) If the transmitter does not have a connected camera, or if the camera is broken, the receiver will display a picture which indicates “NO INPUT”.
